SNAP XL Fiber Patch Panels

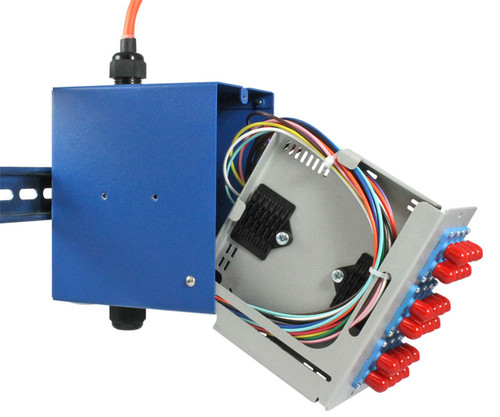

SNAP XL fiber patch panel with connected cables and multiple fiber optic ports.

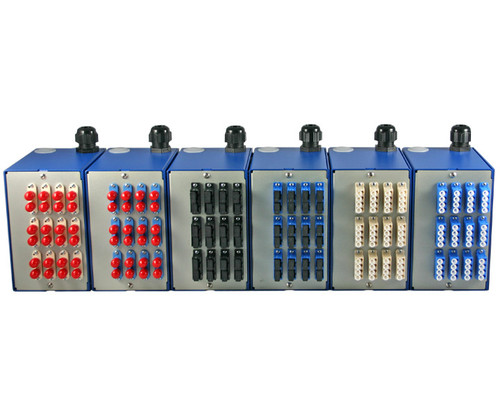

A blue SNAP XL fiber patch panel featuring multiple fiber optic ports and cabling.

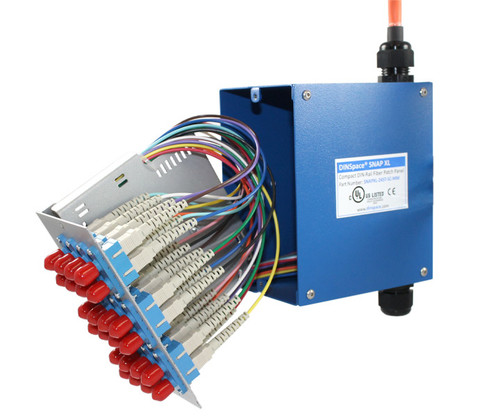

SNAP XL Fiber Patch Panel displaying a blue metal enclosure with connected fiber cables.
SNAP XL Fiber Patch Panels
SNAP XL fiber patch panel with connected cables and multiple fiber optic ports.
A blue SNAP XL fiber patch panel featuring multiple fiber optic ports and cabling.
SNAP XL Fiber Patch Panel displaying a blue metal enclosure with connected fiber cables.

DINSpace

SNAP XL Fiber Patch Panels

Part #: SNAP XL Patch Panels In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $338.00
SNAP XL Patch Panels
Weight:
5.00 LBS
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/DINSpace-SNAP-XL-Specs.pdf
hide_matrix:
False
sales_description:
DINSpace SNAP XL Compact Fiber Optic Patch Panel with 12ea. Adapters, UL/CE. (Please Specify Connector and Fiber Type.)
parent_sku:
SNAP XL Patch Panels
pdf_2_name:
User Manual
pdf_2_url:
pdfs/SNAP_XL_Patch_Panels_Manual.pdf
facet_connector:
LC
facet_connector:
SC
facet_connector:
ST
facet_mounting:
DIN-Rail
facet_mounting:
Wall
facet_port_count:
16 to 24
facet_port_count:
36+
facet_style:
Multimode - OM1
facet_style:
Multimode - OM3
facet_style:
Multimode - OM4
facet_style:
Singlemode
facet_type:
Fiber Optic
Adding… The item has been added
Commonly Purchased with:
DINSpace BRKT-19DR-5U-CM Rackmount DIN-Rail Adapter
$300.00

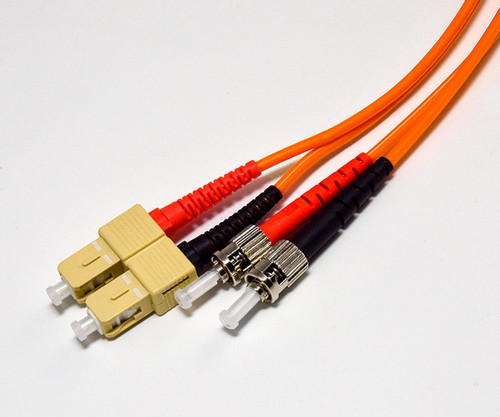

Fiber Optic Patch Cables
$19.85
See Options

Models

Product ID Description Price
SNAPXL-48LC-MM DINSpace SNAP XL Compact Fiber Optic Patch Panel with 12ea. LC/LC Multimode Quad Fiber Adapters, UL/CE. $586.00
SNAPXL-48LC-SM DINSpace SNAP XL Compact Fiber Optic Patch Panel with 12ea. LC/LC Singlemode Quad Fiber Adapters, UL/CE. $652.00
SNAPXL-24SC-MM DINSpace SNAP XL Compact Fiber Optic Patch Panel with 12ea. Multimode SC/SC Duplex Adapters, UL/CE. $338.00
SNAPXL-24SC-SM DINSpace SNAP XL Compact Fiber Optic Patch Panel with 12ea. SC/SC Singlemode Duplex Fiber Adapters, UL/CE. $338.00
SNAPXL-24ST-MM DINSpace SNAP XL Compact Fiber Optic Patch Panel with 12ea. ST/ST Multimode Duplex Fiber Adapters, UL/CE. $338.00
SNAPXL-24ST-SM DINSpace SNAP XL Compact Fiber Optic Patch Panel with 12ea. ST/ST Singlemode Duplex Fiber Adapters, UL/CE. $457.00
SNAPXL-24ST-SC-MM DINSpace SNAP XL Compact Fiber Optic Patch Panel with 12ea. ST (External) / SC (Internal) Multimode Duplex Fiber Adapters, UL/CE. $375.00
SNAPXL-24ST-SC-SM DINSpace SNAP XL Compact Fiber Optic Patch Panel with 12ea. ST (External) / SC (Internal) Singlemode Duplex Fiber Adapters, UL/CE. $375.00

Details

DINSpace SNAP XL Compact Fiber Optic Patch Panel with 12ea. Adapters, UL/CE. (Please Specify Connector and Fiber Type.)

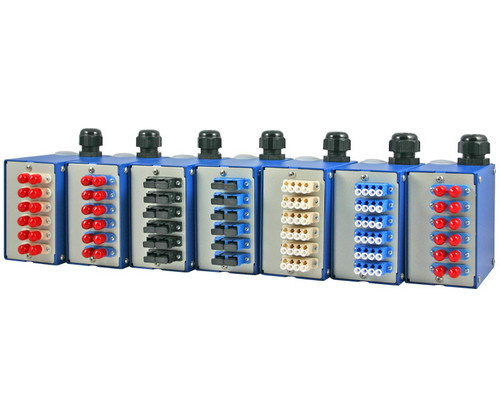

SNAP Fiber Optic Patch Panels
Compact DIN-Rail or surface mount fiber optic patch panel. Compact size allows minimum space requirements within control cabinetry. Device includes a splice tray to allow fusion splicing of field cabling (pigtails sold separately). Device features a sliding faceplate with capture mechanism to allow patch panel to be kept open "hands-free".

Features & Benefits

  • Connector Types
    • 12 each Duplex SC, ST, ST-SC or Quad LC
  • UL Listed 1863 (Communications-Circuit Accessories), CE
  • Compact size perfect for limited space enclosures
  • Versatile surface or DIN-Rail mount capability
  • Slide-hinged faceplate aids field termination
  • Patch or fusion splice field termination standard
  • Rugged metal construction with manufacturer's lifetime warranty

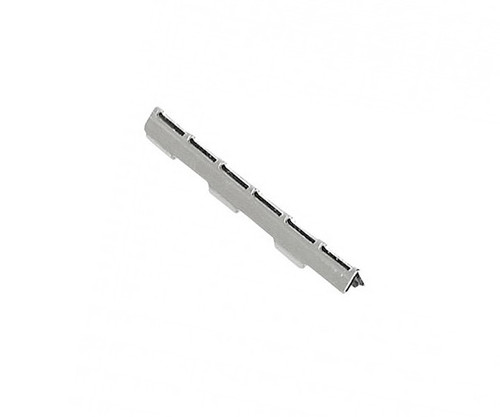

  • Two splice holders for up to 24 splices
  • OM1, OM2, OM3, OM4 cabling compatible

Additional Information

Documentation

Spec Sheet User Manual
