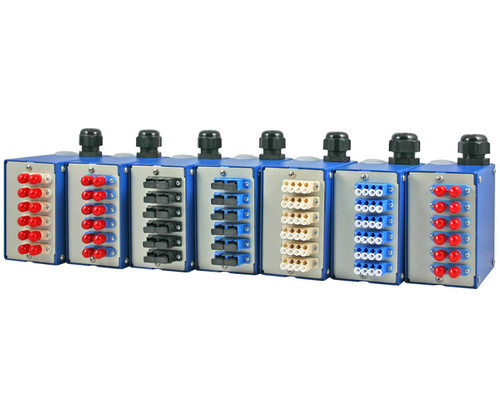

SNAP Fiber Patch Panels
SNAP fiber patch panel with open housing, colorful internal cabling, and red port covers.
A DIN-rail mounted SNAP fiber patch panel with six connected fiber optic ports.
DINSpace SNAP fiber patch panel with open cover showing internal cable connections.
SNAP Fiber Patch Panels
SNAP fiber patch panel with open housing, colorful internal cabling, and red port covers.
A DIN-rail mounted SNAP fiber patch panel with six connected fiber optic ports.
DINSpace SNAP fiber patch panel with open cover showing internal cable connections.

DINSpace

SNAP Fiber Patch Panels

Part #: SNAP Patch Panels In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $242.00
SNAP Patch Panels
Weight:
3.00 LBS
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/DINSpace-SNAP-Specs.pdf
hide_matrix:
False
sales_description:
DINSpace SNAP Compact Fiber Optic Patch Panel with 6ea. Adapters, UL/CE. (Please Specify Connector and Fiber Type.)
parent_sku:
SNAP Patch Panels
pdf_2_name:
User Manual
pdf_2_url:
pdfs/SNAP_Patch_Panels_Manual.pdf
facet_connector:
LC
facet_connector:
SC
facet_connector:
ST
facet_mounting:
DIN-Rail
facet_mounting:
Wall
facet_port_count:
16 to 24
facet_port_count:
2 to 12
facet_style:
Multimode - OM1
facet_style:
Multimode - OM3
facet_style:
Multimode - OM4
facet_style:
Singlemode
facet_type:
Fiber Optic
Adding… The item has been added
Commonly Purchased with:
DINSpace BRKT-19DR-5U-CM Rackmount DIN-Rail Adapter
$300.00

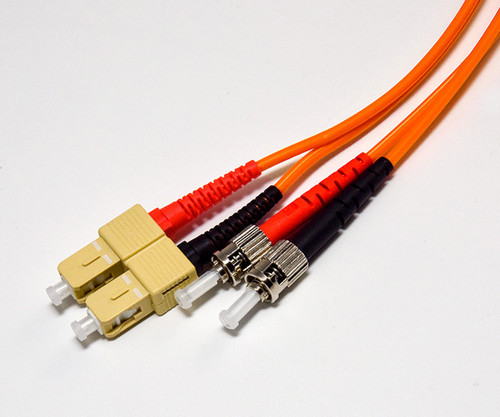

Fiber Optic Patch Cables
$19.85
See Options

Models

Product ID Description Price
SNAP-24LC-MM DINSpace SNAP Compact Fiber Optic Patch Panel with 6ea. Multimode LC/LC Quad Fiber Adapters, UL/CE. $399.00
SNAP-24LC-SM DINSpace SNAP Compact Fiber Optic Patch Panel with 6ea. Singlemode LC/LC Quad Fiber Adapters, UL/CE. $399.00
SNAP-12SC-MM DINSpace SNAP Compact Fiber Optic Patch Panel with 6ea. Multimode SC/SC Duplex Adapters, UL/CE. $248.00
SNAP-12SC-SM DINSpace SNAP Compact Fiber Optic Patch Panel with 6ea. Singlemode SC/SC Duplex Adapters, UL/CE. $262.00
SNAP-12ST-MM DINSpace SNAP Compact Fiber Optic Patch Panel with 6ea. Multimode ST/ST Duplex Adapters, UL/CE. $242.00
SNAP-12ST-SM DINSpace SNAP Compact Fiber Optic Patch Panel with 6ea. Singlemode ST/ST Duplex Fiber Adapters, UL/CE. $284.00
SNAP-12ST-SC-MM DINSpace SNAP Compact Fiber Optic Patch Panel with 6ea. Multimode ST (External) / SC (Internal) Duplex Adapters, UL/CE. $242.00
SNAP-12ST-SC-SM DINSpace SNAP Compact Fiber Optic Patch Panel with 6ea. Singlemode ST (External) / SC (Internal) Duplex Adapters, UL/CE. $242.00

Details

DINSpace SNAP Compact Fiber Optic Patch Panel with 6ea. Adapters, UL/CE. (Please Specify Connector and Fiber Type.)

SNAP Fiber Optic Patch Panels
Compact DIN-Rail or surface mount fiber optic patch panel. Compact size allows minimum space requirements within control cabinetry. Device includes a splice tray to allow fusion splicing of field cabling (pigtails sold separately). Device features a sliding faceplate with capture mechanism to allow patch panel to be kept open "hands-free".

Features & Benefits

  • Connector Types
    • 6 each Duplex SC, ST, ST-SC or Quad LC
  • UL Listed 1863 (Communications-Circuit Accessories), CE
  • Compact size perfect for limited space enclosures
  • Versatile surface or DIN-Rail mount capability
  • Slide-hinged faceplate aids field termination
  • Patch or fusion splice field termination standard
  • Rugged metal construction with manufacturer's lifetime warranty
  • 6-slot splice holder for up to 12 splices
  • OM1, OM2, OM3, OM4 cabling compatible

Additional Information

Documentation

Spec Sheet User Manual
