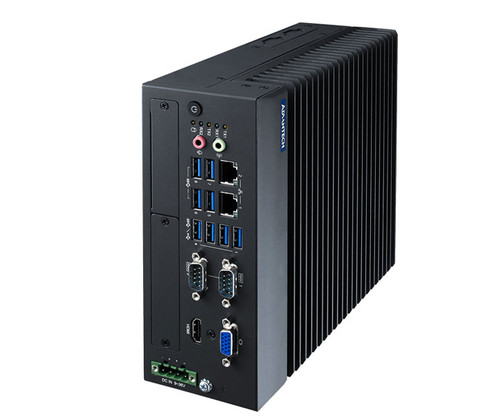

MIC-770W-20A1U Modular Industrial PC
MIC-770W-20A1U Modular Industrial PC

Advantech

MIC-770W-20A1U Modular Industrial PC

Part #: MIC-770W-20A1U In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
$1,070.00
MIC-770W-20A1U
Weight:
8.00 LBS
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/Advantech-MIC-770-V2-Datasheet.pdf
hide_matrix:
True
in_stock:
False
sales_description:
Advantech, MIC-770W-20A1U, Compact Fanless Modular IPC, Intel 10th Gen Xeon or Core i CPU socket (LGA1200), W480E chipset, DDR4 up - 64 GB (ECC support on W SKU with Xeon and i3), VGA plus HDMI, 1 x 2.5 in HDD/SSD plus 1 x mSATA, 2 x USB 3.2 Gen2 plu
sales_description_2:
s 6 x USB 3.2 Gen1, 2 x GbE, 2 x RS232/422/485 (4 x RS232 optional), RAID support (W480E SKU), FlexIO plus iDoor plus i-Module expansion, 9 - 36 VDC Power Input, IP40, -10 - 60 deg. C
parent_sku:
MIC-770W-20A1U
facet_features:
Ethernet
facet_features:
X86
facet_mounting:
DIN-Rail
facet_mounting:
Desktop
facet_mounting:
Wall
facet_temperature_range:
Standard
facet_type:
Industrial Computer
Adding… The item has been added
Commonly Purchased with:
Advantech MIC-770W-20A1 Modular Industrial PC
$1,250.00
Advantech MIC-770V3W-E0A1 Modular Industrial PC
$1,300.00

Details

Advantech, MIC-770W-20A1U, Compact Fanless Modular IPC, Intel 10th Gen Xeon or Core i CPU socket (LGA1200), W480E chipset, DDR4 up - 64 GB (ECC support on W SKU with Xeon and i3), VGA plus HDMI, 1 x 2.5 in HDD/SSD plus 1 x mSATA, 2 x USB 3.2 Gen2 plus 6 x USB 3.2 Gen1, 2 x GbE, 2 x RS232/422/485 (4 x RS232 optional), RAID support (W480E SKU), FlexIO plus iDoor plus i-Module expansion, 9 - 36 VDC Power Input, IP40, -10 - 60 deg. C

MIC-770 V2 Compact Fanless System with 10th Gen Intel® Xeon®/Core™ i CPU Socket (LGA 1200)

The MIC-770 V2 is a compact, fanless modular IPC from Advantech®, featuring a socket-type 10th Generation Intel® Xeon® or Core™ i processor (LGA1200) with Intel® W480E or H420E chipset. It supports a wide 9~36 VDC power input and wide operating temperature of -10~60°C (35W TDP) or -10~50°C (65W TDP) with airflow. The system provides 2 x GbE LAN, 2 x USB 3.2 Gen 2, 6 x USB 3.2 Gen 1, 2 x RS-232/422/485, VGA and HDMI outputs, 1 x 2.5" HDD/SSD, and 1 x mSATA. Advantech®'s iBMC remote out-of-band power management solution is supported on W480E SKUs, with WISE-DeviceOn integration. The system is Microsoft Azure PnP, AWS IoT Greengrass, and Ubuntu Certified.

Modular Expansion

The MIC-770 V2 supports Advantech® i-Modules, Flex I/O, and iDoor technology for extensive expansion including GPU cards, additional PCIe slots, NVMe storage, PoE, additional LAN ports, and industrial serial/wireless modules.

Features

  • Socket-type 10th Gen Intel® Xeon® W-1290TE/W-1270TE/W-1250TE or Core™ i CPU (LGA1200); W480E or H420E chipset
  • Dual-channel DDR4 2933/2666 MHz; up to 64 GB (2 x 260-pin SO-DIMM); W480E with W and i3 CPU supports ECC
  • Wide operating temperature: -10~60°C (35W CPU) or -10~50°C (65W CPU) with 0.7 m/s airflow
  • 2 x RJ45 GbE LAN; iBMC supported on W480E SKU
  • 2 x RS-232/422/485 (DB9); optional 4 x RS-232 via Flex I/O
  • W480E: 2 x USB 3.2 Gen 2, 6 x USB 3.2 Gen 1; H420E: 4 x USB 3.2 Gen 1, 4 x USB 2.0
  • 1 x VGA (up to 1920 x 1200), 1 x HDMI (up to 3840 x 2160 @ 30 Hz)
  • 1 x 2.5" HDD/SSD, 1 x mSATA; W480E SKU supports RAID 0/1/5/10
  • Advantech® iBMC remote out-of-band power management with WISE-DeviceOn
  • Supports Advantech® i-Modules, FlexIO, and iDoor technology
  • Intel® vPro™/AMT and TPM support
  • IP40 dust protection; desktop/wall mount installation
  • Power input 9~36 VDC; CE/FCC Class A, CCC, BSMI, CB/UL, RED Compliance certified
  • Supports Windows 10, Windows 10 IoT, Linux OS, Ubuntu 20.04
