Name: MIC-733-AO5A1 AI Inference System
Brand: Advantech
SKU: MIC-733-AO5A1
Price: 3261.54 USD
Availability: OutOfStock

MIC-733-AO5A1 AI Inference System

Part #: MIC-733-AO5A1 In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details

$3,261^.54

Add to Cart

MIC-733-AO5A1

Weight:

13.00 LBS

pdf_1_name:

Spec Sheet

pdf_1_url:

pdfs/Advantech-MIC-733-AO-Datasheet.pdf

hide_matrix:

True

in_stock:

False

sales_description:

sales_description_2:

x internal USB 2.0), HDMI (3840 x 2160 at 60 Hz), 4 ChannelDI plus 4 ChannelDO, S-rage (M.2 2280 NVMe PCIe x4, Micro SD), Expansion (2 x mPCIe, 2 x Nano SIM, M.2 3052 B key, Optional i-Module PCIe x8, Optional TPM 2.0), 9 - 36 VDC Power Input, UL, CB

sales_description_3:

, CE, FCC, BSMI, CCC, -10 - 60 deg. C, Allxon Remote Moni-ring, Azure Certified Devices.

parent_sku:

MIC-733-AO5A1

Details

Advantech, MIC-733-AO5A1, Edge AI Inference System, NVIDIA Jetson AGX Orin 32G, Up - 200 -PS, 8 core Arm Cortex A78AE, 1792 core Ampere GPU, 32 GB LPDDR5, 64 GB eMMC, 4 x GbE (Optional PoE IEEE 802.3af/at), 4 x USB 3.2 Gen 2 plus 2 x USB 2.0 (plus 1 x internal USB 2.0), HDMI (3840 x 2160 at 60 Hz), 4 ChannelDI plus 4 ChannelDO, S-rage (M.2 2280 NVMe PCIe x4, Micro SD), Expansion (2 x mPCIe, 2 x Nano SIM, M.2 3052 B key, Optional i-Module PCIe x8, Optional TPM 2.0), 9 - 36 VDC Power Input, UL, CB, CE, FCC, BSMI, CCC, -10 - 60 deg. C, Allxon Remote Moni-ring, Azure Certified Devices.

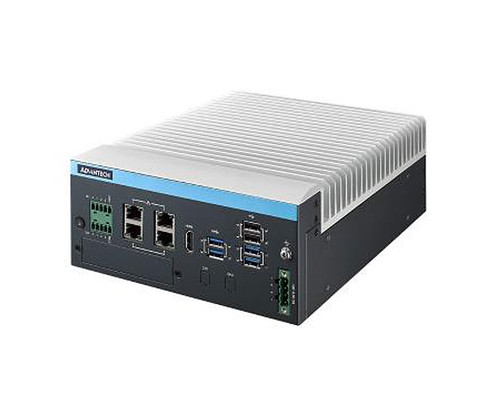

MIC-733-AO AI Inference System Based on NVIDIA® Jetson AGX Orin™

The MIC-733-AO is a compact, fanless AI inference system from Advantech®, built on the NVIDIA® Jetson AGX Orin™ platform. Available with the AGX Orin 32 GB module (up to 200 TOPS) or the AGX Orin 64 GB module (up to 275 TOPS), it delivers high-performance edge AI computing for demanding inference workloads. The system supports 4 x GbE with optional PoE, 4 x USB 3.2 Gen 2, 2 x mPCIe, 2 x Nano SIM slots, and an HDMI display output. Allxon 24/7 remote monitoring and OTA deployment is built in, and the system carries Azure Certified Device status.

Edge AI and Connectivity

The MIC-733-AO is designed for industrial AI inference applications requiring high compute density in a compact form factor. Expansion options include a PCIe x8 i-Module slot, iDoor bracket, GMSL2.0 camera inputs, and an M.2 NVMe SSD slot. Two on-board serial port headers and optional 5G connectivity via M.2 B-key extend its industrial communication capabilities.

Features

NVIDIA® Jetson AGX Orin 32 GB (up to 200 TOPS) or AGX Orin 64 GB (up to 275 TOPS)
8-core or 12-core NVIDIA® Arm® Cortex A78AE v8.2 64-bit CPU; NVIDIA® Ampere GPU
32 GB or 64 GB 256-bit LPDDR5 DRAM
Operating temperature: -10~60°C with 0.7 m/s airflow (MaxN mode)
4 x 10/100/1000 Mbps Ethernet (optional PoE, IEEE 802.3af/at)
2 x USB 2.0 external, 4 x USB 3.2 Gen 2 external
1 x HDMI (up to 3840 x 2160 @ 60 Hz)
4-channel DI, 4-channel DO; 2 x RS-232/422/485 (on-board pin header)
2 x mPCIe (PCIe + USB signal); 2 x Nano SIM slots; 1 x M.2 3052 B-key
1 x M.2 2280 M-key NVMe SSD slot (PCIe x4); 1 x Micro SD slot
Optional PCIe x8 i-Module, GMSL2.0 camera inputs, PoE add-on module
Allxon 24/7 remote monitoring and OTA deployment; Azure Certified Device
Power input 9~36 VDC; desktop/wall mount; UL/CB/CE/FCC/BSMI/CCC certified
