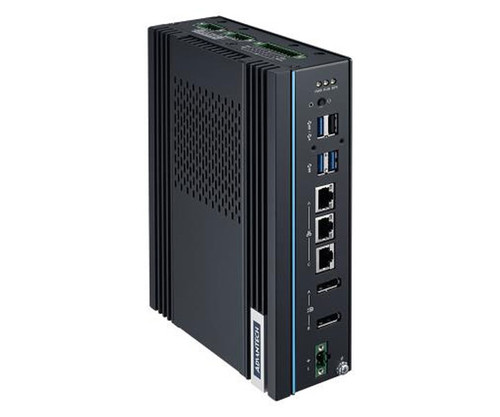

UNO-148-D73BA DIN-Rail Industrial PC

Advantech, UNO-148-D73BA, DIN Rail Edge Controller, Intel Core i7-1365UE 10 cores, 8 GB DDR5, 1 x GbE plus 2 x 2.5GbE, 4 x RS232/422/485, 8-Channel DI + 8-Channel DO, 2 x USB 3.2 (Gen 2) plus 1 x USB 3.2 (Gen 1) plus 1 x USB 2.0, 2 x DP 1.4 (up - 3840 x 2160 at 60 Hz), TSN Support, TPM 2.0, Dual M.2 M key 2280 NVMe (RAID Support), Expansion (Full sized mPCIe, 2 x M.2 M key, M.2 E key, nano SIM), Optional iDoor Extension, 10 - 36 VDC Power Input, IP20, CE, FCC, UL61010 2 201, CCC, BSMI, -20 - 60 deg. C

UNO-148 V2 Fanless DIN-Rail Edge Controller with 13th Gen Intel® Core™ i CPU

The UNO-148 V2 is a fanless DIN-rail edge controller from Advantech®'s UNO-100 series, powered by 13th Generation Intel® Core™ i processors with 8 GB DDR5 RAM. It provides 3 x LAN (including dual 2.5GbE with TSN), 4 x COM, 3 x USB 3.2, 1 x USB 2.0, 8 x DI, 8 x DO, and 2 x DisplayPort 1.4. Dual M.2 M-key slots support NVMe SSD with RAID capability, and the modular design accommodates optional iDoor extensions for Fieldbus, wireless, and I/O expansion. Compliant with IEC 61010-2 safety standard.

Connectivity and Expansion

Three LAN ports provide 2.5GbE (TSN-capable, IEEE 802.1Qav/802.1Qbv) and GbE connectivity. Four isolated RS-232/422/485 serial ports and isolated digital I/O with 2,500 VDC protection deliver reliable field connectivity. The modular design supports 1 x full-size mPCIe, 2 x M.2 M-key (NVMe, RAID-capable), and 1 x M.2 E-key for Wi-Fi modules, plus a nano SIM card slot.

Features

• Intel® Core™ i7-1365UE 10-core (up to 4.9 GHz), i5-1335UE 10-core (up to 4.5 GHz), or i3-1315UE 6-core (up to 4.5 GHz); 8 GB DDR5 SODIMM-4800 (up to 64 GB)
• Operating temperature: -20~60°C with 0.7 m/s airflow
• 3 x LAN: 2 x 2.5GbE (Intel i226, TSN), 1 x GbE (Intel i219)
• 4 x RS-232/422/485 isolated serial ports (2,500 VDC isolation, terminal block)
• 2 x USB 3.2 Gen 2, 1 x USB 3.2 Gen 1, 1 x USB 2.0
• 8 x isolated digital input channels with 2,500 VDC isolation protection
• 8 x digital output channels (5~30 VDC, 500 mA max per channel)
• 2 x DisplayPort 1.4 (up to 3840 x 2160 @ 60 Hz)
• 2 x M.2 M-key 2280 NVMe SSD with RAID 0/1 support
• Time-Sensitive Networking (TSN) via Intel i226 LAN (IEEE 802.1Qav/802.1Qbv)
• TPM 2.0 hardware security; programmable watchdog timer
• DIN-rail mounting; aluminum housing; 53 x 140 x 200 mm
• Power input 10~36 VDC; CE, FCC, UL61010-2-201, CCC, BSMI certified
• Supports Windows 10 2021 LTSC, Windows 11, AdvLinux (Ubuntu 22.04)
