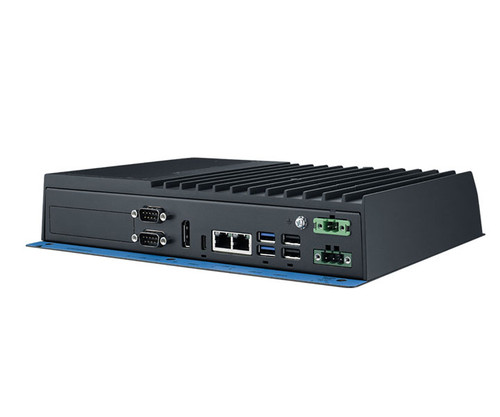

TPC-B520-D50A Modular Panel PC

Advantech, TPC-B520-D50A, Computing Box-Module, Intel Core i5-1335UE deca-core, DDR5 4800 SO-DIMM (up - 32 GB), 2 x 2.5GbE (Intel i226), 2 x RS232/422/485, 1 x DisplayPort 1.4a, 1 x USB Type C (USB 3.2 Gen 2, DP 1.4a, 15W power delivery), 2 x USB 3.2 Gen 1 plus 2 x USB 2.0, S-rage (M.2 M key 2280 NVMe, optional SATA for 2.5 in SSD/HDD, RAID 0/1), Expansion (M.2 B key for iDoor, M.2 E key for WiFi, M.2 B key for 5G, SIM slot), TPM 2.0, 19 - 24 VDC Power Input, IP66 rated front panel, BSMI, CCC, CE, FCC Class A, CB/UL, -10 - 60 deg. C.

TPC-B520 Modular TPC Computing Box Module with Intel® 13th Gen Core™ i CPU

The TPC-B520 is a high-performance, fanless computing box module from Advantech®'s Modular Series TPC family, powered by the 13th Generation Intel® Core™ i5-1335UE deca-core (1.3 GHz) or i7-1365URE deca-core (1.7 GHz) processor. It pairs with Advantech®'s modular FPM front panel display modules to create an IP66-rated Panel PC ranging from 12.1" to 23.8". The system features 2 x 2.5GbE LAN, 2 x USB 3.2, 1 x USB Type-C (with DP 1.4a Alt mode), 2 x RS-232/422/485, and three M.2 expansion slots for NVMe storage, Wi-Fi, and 5G/LTE. RAID 0/1 is supported across M.2 and 2.5" SATA storage.

Modular Display and Expansion

The TPC-B520 pairs with Advantech®'s FPM-D and FPM-S series modular front panel modules in sizes from 12.1" to 23.8", including high brightness options up to 1800 nits for sunlight-readable applications. Three display outputs support clone/extend mode. An iDoor slot adds Fieldbus, isolated serial, isolated digital I/O, and additional LAN connectivity.

Features

• 13th Gen Intel® Core™ i5-1335UE or i7-1365URE deca-core processor; single DDR5 4800 SO-DIMM (up to 32 GB)
• Operating temperature: -10~60°C (i5) or -20~60°C (i7) without airflow
• 2 x 2.5GbE LAN with Intel® i226; fanless design
• 2 x RS-232/422/485; 2 x USB 3.2 Gen 1, 1 x USB Type-C (USB 3.2 Gen 2, DP 1.4a, 5V/3A), 2 x USB 2.0
• 1 x DisplayPort 1.4a video output; supports 3 displays (FPM-D/DP Port/Type-C)
• 1 x M.2 M-key 2280 for NVMe (PCIe x4/SATA, RAID); 1 x M.2 E-key for Wi-Fi; 1 x M.2 B-key for 5G LTE
• Optional 2.5" SSD/HDD SATA expansion; RAID 0/1 support
• IP66-rated front panel when paired with FPM module; VESA, desktop, wall, or panel mount
• Compatible with FPM-D and FPM-S series modular front panel modules from 12.1" to 23.8"
• iDoor expansion slot for Fieldbus, serial, digital I/O, and LAN modules
• TPM 2.0 built-in; power input 19~24 VDC (±15%); BSMI, CCC, CE, FCC Class A, CB/UL certified
• Supports Windows 11, Windows 10, Linux
