TPC-B300-E20A Modular Panel PC

Advantech, TPC-B300-E20A, Computing Box-Module, Intel A-m x6425E quad core 2.0 GHz (12W), DDR4 3200 SO-DIMM (up - 32 GB), 2 x 2.5GbE (Intel i226), 2 x RS232/422/485, 1 x DisplayPort (4096 x 2160 at 60 Hz), 3 x USB 3.2 plus 1 x USB 2.0, Line out, S-rage (M.2 M key 2280 SATA plus 2.5 in SSD/HDD), Expansion (Full size mini PCIe for iDoor, M.2 E key 2230 for WiFi plus BT), TPM 2.0, 24 VDC Power Input, CE, FCC Class A, CB/UL, -20 - 60 deg. C.

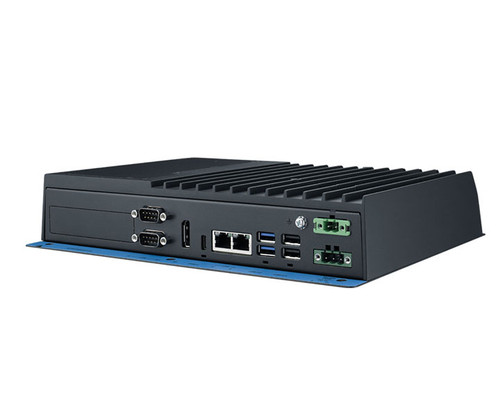

TPC-B300 Modular TPC Computing Box Module with Intel® Elkhart Lake Atom and Celeron

The TPC-B300 is a compact, fanless computing box module from Advantech®'s Modular Series TPC family, powered by the Intel® Atom™ X6425E or Celeron® J6412 processor with a DDR4 SODIMM slot supporting up to 32 GB. It pairs with Advantech®'s modular FPM front panel display modules to create an IP66-rated Panel PC ranging from 12.1" to 23.8". The system provides 2 x 2.5GbE LAN, 3 x USB 3.2, 1 x USB 2.0, 2 x RS-232/422/485, and DisplayPort 4K output. A full-size mini PCIe slot supports iDoor modules and 4G/5G LTE, and an M.2 E-key slot accommodates Wi-Fi and Bluetooth modules. The Atom X6425E version supports wide temperature operation from -20 to 60°C.

Modular Display and Expansion

The TPC-B300 pairs with Advantech®'s FPM-D and FPM-S series modular front panel modules in sizes from 12.1" to 23.8", including high brightness options for sunlight-readable environments. An iDoor expansion slot supports Fieldbus, serial, digital I/O, LAN, and long-distance display transmission modules.

Features

• Intel® Atom™ X6425E quad-core 2.0 GHz or Celeron® J6412 quad-core 2.0 GHz; DDR4 3200 SO-DIMM (up to 32 GB)
• Operating temperature: -20~60°C (Atom X6425E) or 0~60°C (Celeron J6412) with SATA SSD
• 2 x 2.5GbE LAN (Intel® I226); fanless design
• 2 x RS-232/422/485; 3 x USB 3.2, 1 x USB 2.0; 1 x Line out
• 1 x DisplayPort (4096 x 2160 @ 60 Hz)
• 1 x M.2 M-key 2280 (SATA); 1 x 2.5" SSD/HDD expansion
• 1 x full-size mini PCIe (iDoor/LTE); 1 x M.2 E-key 2230 (Wi-Fi/BT)
• IP66 when panel-mounted with FPM module; VESA, wall, or panel mount
• Compatible with FPM-D and FPM-S series modular front panel modules from 12.1" to 23.8"
• iDoor slot for Fieldbus, serial, digital I/O, LAN, and USB expansion
• TPM 2.0 built-in; power input 24 VDC (±20%); CE, FCC Class A, CB/UL certified
• Supports Windows 10 IoT Enterprise LTSC, Windows 11, AdvLinux, Android 14
