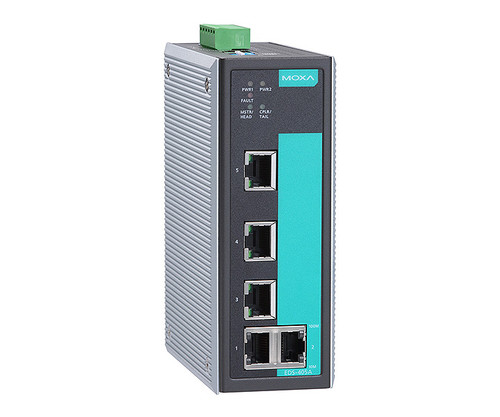

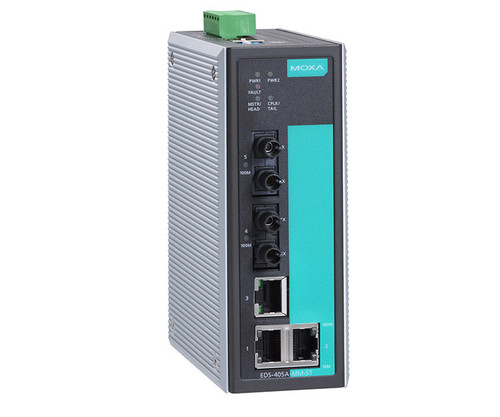

EDS-405A Series Switches

Moxa EDS-405A Series 5-Port Managed Industrial Ethernet Switch, Class 1, Div. II Rated. (Please Specify Model Number.)

The EDS-405A are entry-level 5-port managed Ethernet switches designed especially for industrial applications. The switches support a variety of useful management functions, such as Turbo Ring, ring coupling, IGMP snooping, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The ready-to-use Turbo Ring can be set up easily using the web-based management interface, or with the DIP switches located on the top panel of the EDS-405A switches.

Features

• Command Line Interface (CLI) for quickly configuring major managed functions
• IPv6 Ready logo awarded (IPv6 Logo Committee certified)
• DHCP Option 82 for IP address assignment with different policies
• Support EtherNet/IP and Modbus/TCP protocols for device management and monitoring
• Compatible with EtherNet/IP and PROFINET protocols for transparent data transmission
• Turbo Ring and Turbo Chain (recovery time < 20 ms), and RSTP/STP for network redundancy
• IGMP snooping and GMRP for filtering multicast traffic
• Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
• QoS (IEEE 802.1p and TOS/DiffServ) to increase determinism
• RMON for efficient network monitoring and proactive capability
• SNMPv1/v2c/v3 for different levels of network management security
• Bandwidth management to prevent unpredictable network status
• Port mirroring for online debugging
• 0 to 60 deg. C operating temperature range (standard models)
• -40 to 75 deg. C operating temperature range (T models)
