UNO-2484G-7C21BE Embedded PC
UNO-2484G-7C21BE Embedded PC

Advantech

UNO-2484G-7C21BE Embedded PC

Part #: UNO-2484G-7C21BE In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
$1,395.00
UNO-2484G-7C21BE
Weight:
5.00 LBS
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/Advantech-UNO-2484G-Datasheet.pdf
hide_matrix:
True
in_stock:
False
sales_description:
Advantech, UNO-2484G-7C21BE, DIN Rail Modular Box PC, Intel Celeron 3965U dual core 2.0 GHz, 4 GB DDR4, 4 x GbE, 4 x RS232/422/485, 4 x USB 3.0, 1 x HDMI 1.4, 1 x DP 1.2, S-rage (mSATA plus 2 x 2.5 in SATA bays, RAID 0/1), 1 x full size mPCIe (wirele
sales_description_2:
ss iDoor support), TPM 2.0 (Optional), 10 - 36 VDC Power Input, IP40, CE, FCC, UL, CCC, BSMI, -20 - 60 deg. C.
parent_sku:
UNO-2484G-7C21BE
facet_features:
Ethernet
facet_features:
I/O
facet_features:
X86
facet_mounting:
Box Type
facet_mounting:
DIN-Rail
facet_mounting:
Wall
facet_temperature_range:
Standard
facet_type:
IoT Gateway / Edge Computer
Adding… The item has been added
Commonly Purchased with:

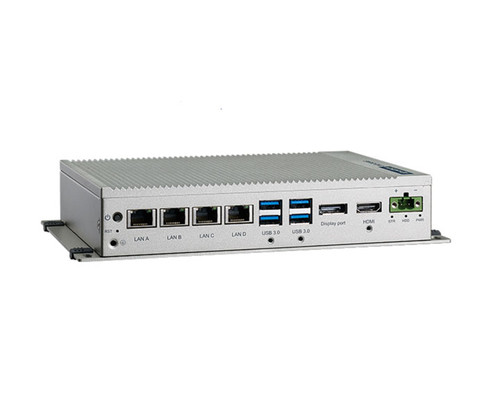

Advantech UNO-2484G-7331BE Embedded PC
$2,497.00
Advantech UNO-2484G-7531BE Embedded PC
$2,904.00

Details

Advantech, UNO-2484G-7C21BE, DIN Rail Modular Box PC, Intel Celeron 3965U dual core 2.0 GHz, 4 GB DDR4, 4 x GbE, 4 x RS232/422/485, 4 x USB 3.0, 1 x HDMI 1.4, 1 x DP 1.2, S-rage (mSATA plus 2 x 2.5 in SATA bays, RAID 0/1), 1 x full size mPCIe (wireless iDoor support), TPM 2.0 (Optional), 10 - 36 VDC Power Input, IP40, CE, FCC, UL, CCC, BSMI, -20 - 60 deg. C.

UNO-2484G Intel® Core™ i7/i5/i3/Celeron Regular-Size Modular Box Platform with 4 x GbE, 1 x mPCIe, HDMI, DP

The UNO-2484G is a compact, fanless embedded PC from Advantech®'s UNO-2000 series. It is powered by 6th or 7th Generation Intel® Core™ i7/i5/i3 or Celeron processors with 8 GB DDR4 built-in memory, and features 4 x GbE, 4 x USB 3.0, 1 x HDMI, 1 x DisplayPort, and 4 x RS-232/422/485. The stackable modular design supports up to 4 iDoor extension modules via a second stack, enabling Fieldbus protocol support, wireless connectivity, and additional I/O. A ruggedized zero-cable and lockable I/O design and dual 2.5" SATA SSD/HDD bays with RAID 0/1 support make it well-suited for demanding smart factory environments.

iDoor Expansion and Connectivity

The UNO-2484G supports more than 30 iDoor module combinations across four main categories: industrial Fieldbus communication, smart digital/analog I/O, wired/wireless communication, and CORE modules. The stackable second layer adds up to 4 mPCIe slots for iDoor expansion, or can be configured as an external swappable HDD/SSD storage module or a PCIe x4 expansion.

Features

  • 6th Gen Intel® Core™ i7-6600U, i5-6300U, i3-6100U or 7th Gen i7-7600U, i5-7300U, i3-7100U, Celeron 3965U processors
  • Built-in 8 GB (i7/i5/i3) or 4 GB (Celeron) DDR4, 2133 MHz (up to 16 GB)
  • Operating temperature: -20~60°C with 0.7 m/s airflow
  • 4 x RJ45 10/100/1000 Mbps Ethernet
  • 4 x RS-232/422/485, 50~115.2 kbps
  • 4 x USB 3.0
  • 1 x HDMI 1.4, 1 x DisplayPort 1.2 dual display output
  • 1 x full-size mPCIe (single stack); up to 4 x mPCIe (double stack)
  • Dual 2.5" SSD/HDD drive bays with RAID 0/1 support
  • Compact fanless design with zero-cable and lockable I/O
  • Supports 30+ iDoor modules including Fieldbus, wireless, and I/O expansion
  • Stand, wall, VESA, and DIN-rail mounting options
  • Power input 10~36 VDC; CE, FCC, UL, CCC, BSMI certified
  • Supports Microsoft® Windows 7, 10, Advantech Linux
