Models
| Product ID | Description | Price | |
|---|---|---|---|
| TX54-A146 | Digi TX54-A146 FirstNet Ready Cellular Router, Single LTE-Advanced Cat 12, 802.11ac Wi-Fi, 4 x 10/100/1000 RJ-45 Ethernet Ports, 1 x DB9-M RS-232 DTE Serial Port, PTCRB, AT&T, Sprint, Verizon, Includes Digi 360 Solution with Digi Remote Manager, Warranty, and Customer Care | $1,639.00 | |
| TX54-A246 | Digi TX54-A246 FirstNet Ready Cellular Router, Dual LTE-Advanced Cat 12, 802.11ac Wi-Fi, 4 x 10/100/1000 RJ-45 Ethernet Ports, 1 x DB9-M RS-232 DTE Serial Port, PTCRB, AT&T, Sprint, Verizon, Includes Digi 360 Solution with Digi Remote Manager, Warranty, and Customer Care | $2,169.00 | |
| TX54-A152-2 | Digi TX54-A152-2 Industrial Cellular Router, 5G, Power Class 1.5, Global, Dual Wi-Fi, 4 x SMA-Female Cellular, 4 x RP-SMA-Male Wi-Fi, 1 x SMA-Female GNSS, 4 x Ethernet RJ45 Ports, 1 x RS-232 DB9 Serial Port, 1 x USB 3.0 Type A Port, Dual Mini-SIM (2FF), Aluminum Housing, IP54, 9 to 36 VDC Power, -34 to 74 deg. C, FCC Part 15 Subpart B, MIL-STD-810G, NEMA TS2, FIPS 140-3, Includes Digi 360 Solution with Digi Remote Manager, Warranty, and Customer Care | $2,199.00 | |
| TX54-A156-2 | Digi TX54-A156-2 Industrial Cellular Router, 5G, Power Class 1.5, Global, Single Wi-Fi, 4 x SMA-Female Cellular, 2 x RP-SMA-Male Wi-Fi, 1 x SMA-Female GNSS, 4 x Ethernet RJ45 Ports, 1 x RS-232 DB9 Serial Port, 1 x USB 3.0 Type A Port, Dual Mini-SIM (2FF), Aluminum Housing, IP54, 9 to 36 VDC Power, -34 to 74 deg. C, FCC Part 15 Subpart B, MIL-STD-810G, NEMA TS2, FIPS 140-3, Includes Digi 360 Solution with Digi Remote Manager, Warranty, and Customer Care | $2,059.00 | |
| TX54-A256-2 | Digi TX54-A256-2 Industrial Cellular Router, Dual 5G, Power Class 1.5, Global, Single Wi-Fi, 8 x SMA-Female Cellular, 2 x RP-SMA-Male Wi-Fi, 1 x SMA-Female GNSS, 4 x Ethernet RJ45 Ports, 1 x RS-232 DB9 Serial Port, 1 x USB 3.0 Type A Port, Quad Mini-SIM (2FF), Aluminum Housing, IP54, 9 to 36 VDC Power, -34 to 74 deg. C, FCC Part 15 Subpart B, MIL-STD-810G, NEMA TS2, FIPS 140-3, Includes Digi 360 Solution with Digi Remote Manager, Warranty, and Customer Care | $3,259.00 | |
Details
Digi TX54 Mobile Router Series, Rugged and Secure Industrial and Transportation Cellular Router, 5G, LTE-Advanced Pro, or LTE-Advanced (Model Dependent), Single or Dual Concurrent Cellular Modules, 4 x Gigabit Ethernet RJ-45 Ports, 1 x DB9 RS-232 Serial Port (DTE), 1 x USB 3.0 Type A Port, Optional Dual Wi-Fi 5 Radios, GNSS with Untethered Dead Reckoning, Aluminum Housing, IP54, 9 - 36 VDC Power, -34 to 74 deg. C, FIPS 140-3, FirstNet Trusted and Verizon Frontline Models Available, Includes Digi 360 Solution with Digi Remote Manager, Warranty, and Customer Care (Options Available; Antennas and Power Supply Sold Separately)

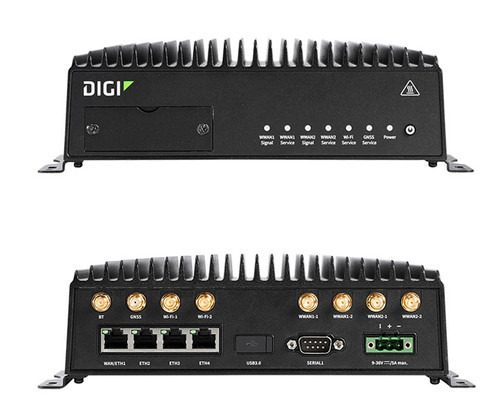

Digi TX54 LTE-Advanced Cellular Router
Rugged and secure cellular router for mission critical industrial and transportation applications, including models for public safety networks
The versatility and performance of Digi TX routers make them ideal for mission critical applications requiring continuous connectivity, field longevity and edge computing. Digi TX routers provides secure routing and gateway functionality across wired and wireless communication networks. Local private subnets are bridged across public networks to safeguard privacy and integrity.
Several models of the Digi TX series are is available with dual Wi-Fi radios to segment passenger Wi-Fi from fare collection, data, video and other applications, and offers models with both single and dual LTE-Advanced or LTE-Advanced Pro cellular modules.
Designed to meet the demands of first responders, multiple models of the Digi TX series include concurrent and independent dual cellular interfaces that prioritize critical communications.
The industrial-grade design supports the most rugged conditions, including vibration and temperature changes. A Python development environment allows for edge computing and intelligence.
Four Gigabit Ethernet ports connect other IP-capable systems, each configurable as an isolated secure LAN, or all four can function as a Layer 2 switch. Digi TrustFence®, a suite of hardware and firmware features, ensures the integrity of Digi TX54 security functions. Chip level encryption protects the onboard file system.
Features & Benefits
- Global models are available in both single and dual cellular options
- Power Class 1.5 Options Available
- Future-built with dual-core 880 MHz MIPS processor and PCIe 2.0 internal bus
- Capable of segmenting private and public data communication across dual 600 Mbps LTE-Advanced Cat 11 or LTE-Advanced Pro Cat 12 cellular modules
- High-speed 867 Mbps 802.11ac Wi-Fi for WAN or LAN service and optional dual Wi-Fi radios
- Cryptographic co-processor with secure key generation
- Securely deploy, monitor and control devices with Digi Remote Manager®
