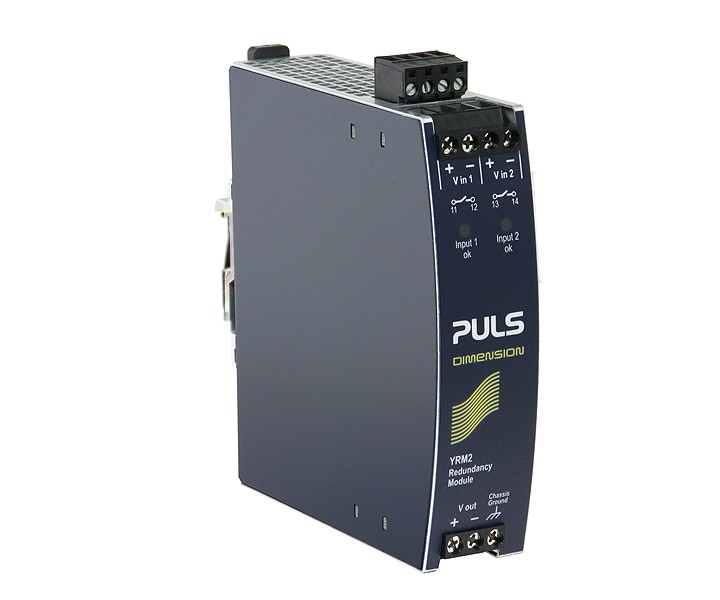

YRM2.DIODE Redundancy Module
YRM2.DIODE Redundancy Module
Product ID YRM2.DIODE
Availability
DESCRIPTIONPuls Dimension Redundancy Module with Spring Clamp Terminals and Dual Alarm Contacts, 10-60VDC, 20A, Dual Input, Class 1, Div. II. The YRM2.DIODE is a redundancy module, which can be used to build 1+1 and N+1 redundant systems. It is equipped with two input channels which can be connected to 10A power supplies and one output which can carry nominal currents up to 20A. The YRM2.DIODE has a monitoring circuit included and is the perfect solution when the power supply has no DC-OK function. Two LEDs and two relay contacts signal when one of the two DC-input voltages is not in range due to a non-functioning or disconnected power supply. In addition to the YRM2.DIODE is the YR2.DIODE which has no monitoring circuitry included. This is the perfect fit when the power supply itself is already equipped with a DC-OK signal (e.g.: DIMENSION Q-Series). Large screw terminals allow an easy installation and a huge international approval package for a variety of applications makes this unit suitable for nearly every situation. Features & Benefits - Cost Effective Solution to Build Redundant Systems
- Dual Input with Single Output
- Alarm Relay-contacts for each Input Path
- Two Diodes (Common Cathode)
- DC24-48V ± 25% (18-60Vdc) Wide-range Input
- Full Power Between -40°C and +60°C
- Width only 32mm
- Rugged Metal Housing
- Large Screw Terminals
- Easy Wiring: Distribution Terminal for Negative Pole Included
