DESCRIPTION

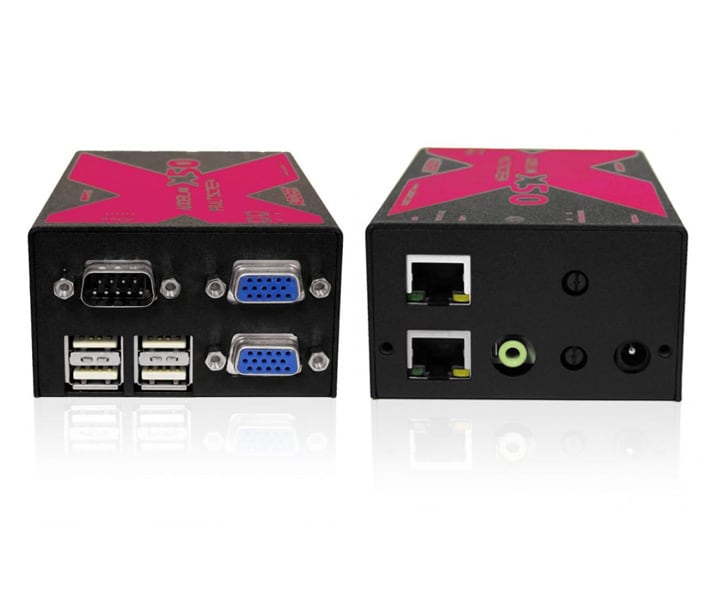

Adder X50 Multiscreen 2-Monitor KVM Extender Pair, VGA Monitor With USB Keyboard & Mouse Plus Audio, Up To 50 Meters (165 Ft.).
Fully featured, fully transparent low/full speed USB, high quality video and 44.1kHz digital stereo audio extender over a single CATx cable.
AdderLink X50s have been designed for use in applications where computers can have their USB peripherals including keyboards and mice, high quality video and audio control extended up to 50m (150 ft.) across CAT5 or higher UTP cable. The AdderLink X50 provides sharp, bright and ultra high-resolution video over a VGA interface and ensures total USB compatability regardless of the computer being controlled or the peripheral being extended.
Features
Fully transparent low/full speed USB
Utilising a unique method of USB communication, the AdderLink X50 delivers the highest possible levels of USB compatibility. With an integrated 4 port hub the X50 supports all USB 1.1 and 2.0 low/full speed devices.
Video performance
Crisp, clear and industry leading video quality at very high resolutions of 1920 x 1200 to 50m (150 ft.)
Video compensation
The AdderLink X50 allows for a great range of very smooth and fine adjustments enabling the user to adjust the video picture to their exact preference.
True DDC Emulation
Unless an extender actively supports DDC some high performance video cards cannot be used at high resolutions. The AdderLink X50 fully supports 2-page DDC ensuring all possible resolutions are supported.
Fully platform independent
As the AdderLink X50 supports fully transparent USB connections it is able to support all common hardware platforms including PC, Sun and MAC and their associated peripherals.
Digital audio
Adder’s unique digital transmission of audio signals means the AdderLink X50 delivers clickless, 44.1kHz CD quality, stereo audio without the need for an additional CATx cable.
Dual Access
For local control of extended computers the AdderLink X50 provides both a local video and audio output at the transmitter unit. (USB devices can be plugged directly into the computer).
Extended common mode input range
To ensure full operation in all environments and avoid problems such as screen blanking in industrial environments caused for example by large electrical equipment switching, the AdderLink X50 implements a special termination system that allows the common mode range to be extended.

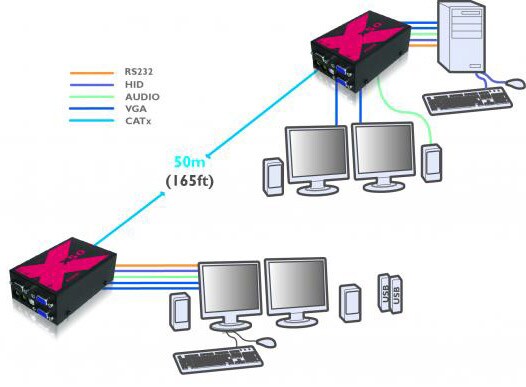

Example Diagram
