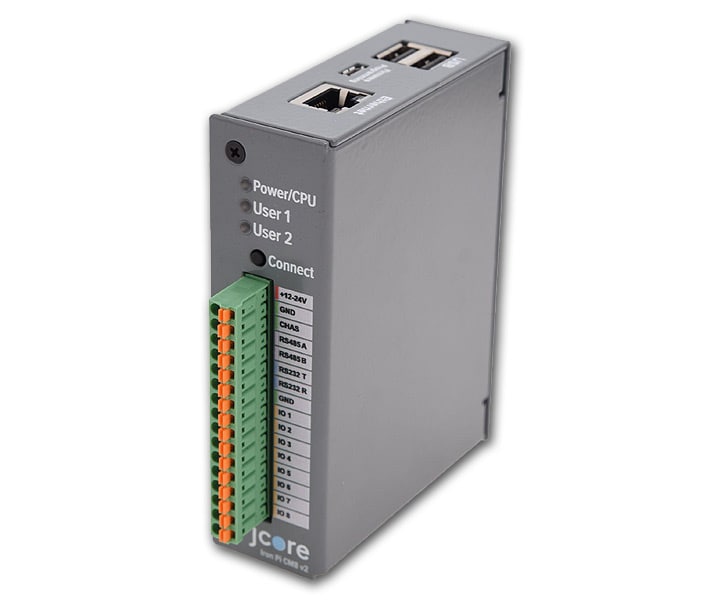

Iron Pi CM8 v2 Industrial Computer

Product ID
IRON-PI-CM8 v2

Availability

DESCRIPTION

JCore Iron Pi CM8 v2 Industrial Computer, Raspberry Pi OS (Linux) Operating System, CPU 1.2GHz Quad Core ARM, 1GB RAM,  4GB eMMC Flash Storage (Fixed), RS-232 Port, RS-485 Port, 8 I/O Channels (Channels 1-4: AI/DI/DO, Channels 5-8: DI/DO), 9-24 VDC Powered, DIN-Rail Mount, -20 to +55 deg C.

Rugged Raspberry Pi-compatible Industrial Computer

Connect your sensors directly to the cloud with Raspberry Pi compatible data acquisition hardware. Stream data to JCore Clarity, or build your own industrial IoT application using our built-in MQTT support.

The Power of Open Source

The standard Raspberry Pi supports a powerful ecosystem of open source software, but its low cost hardware wasn't built for industrial use. The Iron Pi combines a Raspberry Pi compatible core with industrial-grade I/O points, serial ports, USB / Ethernet ports, storage, and power supplies.

Features and Benefits

• 8 x Multi-Function I/O Points
• Robust on-board flash storage; no SD flash card
• Two serial ports for connecting legacy RS-485 and RS-232 devices
• 1.2GHz Quad Core ARM processor
