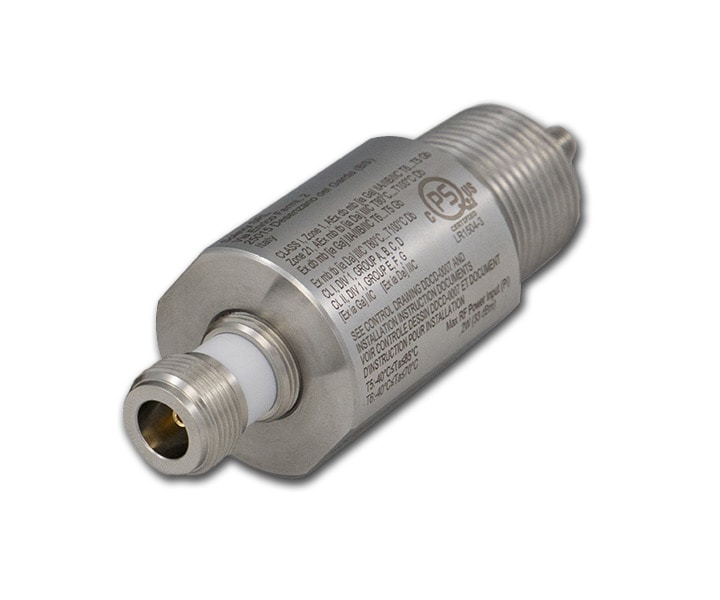

RXN3S0200JXN Antenna Coupler

Product ID
RXN3S0200JXN

Availability

DESCRIPTION

Solexy Explosion Proof & intrinsically safe low loss antenna coupler, RX Series, RP-SMA Male to Type N Female, 3/4" NPT Thread, 100MHz to 1.4 GHz, ATEX Zone 1 Rated, IECEx, Class 1/Div1, -40 to 85 deg. C.

Solexy’s patented (7,057,577) Explosion-Proof Antenna Coupler permits the installation of non-Ex certified antennas in hazardous areas.

This coupler is designed to be used directly with listed explosion proof housings or conduit fittings.

An integrated blocking circuit prevents hazardous energy reaching the antenna if a radio, modem or access point failure occurs. It also allows for antenna removal in hazardous areas.

The coupler’s robust design allows for connection to practically any radio and antenna. It is a highly flexible and cost effective solution to hazardous area radio system deployment. The coupler can also be used as a cable bulkhead.

Fitting is approved for hazardous locations and can be installed with a simple wrench.

Features and Benefits

• SHORT CIRCUIT PROTECTION - Includes integrated blocking circuitry.
• ENVIRONMENTAL PROTECTION - All required circutry is recessed into fitting and encapsulated against harsh environments
• CERTIFICATION - The RX Series is certified Atex, IECEx and for USA&Canada as an apparatus, and can be installed per the conditions of acceptability, without further assessment. North America approval (USA&Canada) includes class & divisions and zones. IECEx certification is issued from an Australian notified body, therefore RX can be installed in Queensland mines.
• NO SEALING FITTING REQUIRED - Permits a wide variety of passive antennas to be installed in hazardous areas. Antennas may be removed and/or installed with power on. Perfect for a cable bulkhead connection.
• ISOLATED ANTENNA GROUND - Optional antenna ground isolation (RX1..) from housing ground, combined with a capacitive circuit, solves ground loop issues in case of remote mounted antennas and prevents potential ground noise to interfeare with RF signal (patent pending).
