YR40.241 Redundancy Module
YR40.241 Redundancy Module
Product ID
YR40.241
Availability

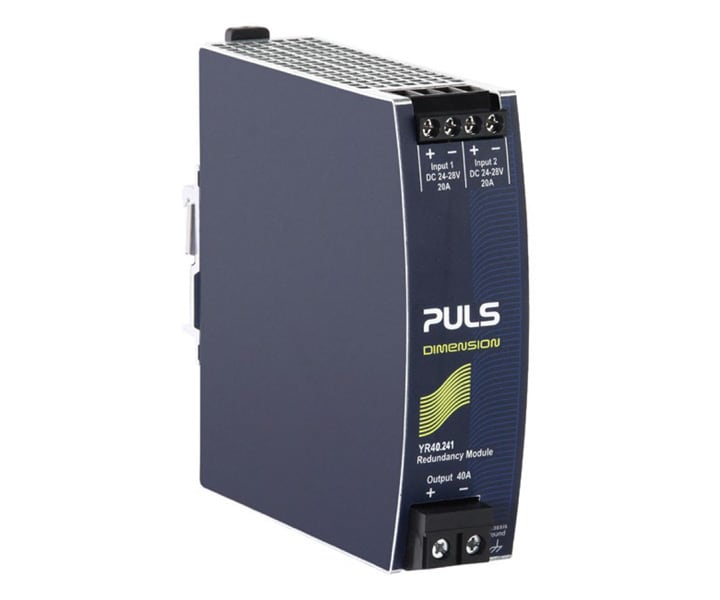

DESCRIPTIONPuls Dimension Y-Series Redundancy Module with Screw Clamp Terminals, 12-28VDC, 40A, Dual Input (2x20A), MOSFET Method, Class 1, Div. II. (Compatible with all Power Supplies)
The YR40.241 is a redundancy module, which can be used to build 1+1 and N+1 redundant system. It is equipped with two input channels, which can be connected to power supplies with up to 20A output current and one output, which can carry nominal currents up to 40A. The module is suitable for power supplies with constant current overload behavior as well as any kind of “Hiccup” overload behavior. In addition to the YR40.241, the YR40.242 is also available which is cost-optimized and suitable for all DIMENSION power supplies except the QT20 and QTD20 series.
The novelty of this redundancy module is the utilization of mosfets instead of diodes for the decoupling of the two input channels. This reduces the heat generation and the voltage drop between input and output. The redundancy module does not require an additional auxiliary voltage and is self-sufficient even in case of a short circuit across the output.
Due to the low power losses, the unit is very slender and only requires 36mm width on the DIN rail. Large connection terminals allow for a safe and fast installation with a large international approval package. This unit is suitable for nearly every application.
Features and Benefits
- For N+1 and 1+1 Redundant Systems
- Dual Input with Single Output
- Suitable for all Power Supplies
- Only 72mV Voltage Drop at 20A Output Current
- Only 2.15W Loss at 20A and 6.3W at 40A Output Current
- 160% (65A) Peak Load Capability
- Reverse Input Polarity Protection
- Full Power Between -40 deg. C and +70 deg. C
- Width only 36mm
- Rugged Metal Housing
- Easy Wiring: Distribution Terminal for Negative Pole Included
