DESCRIPTION

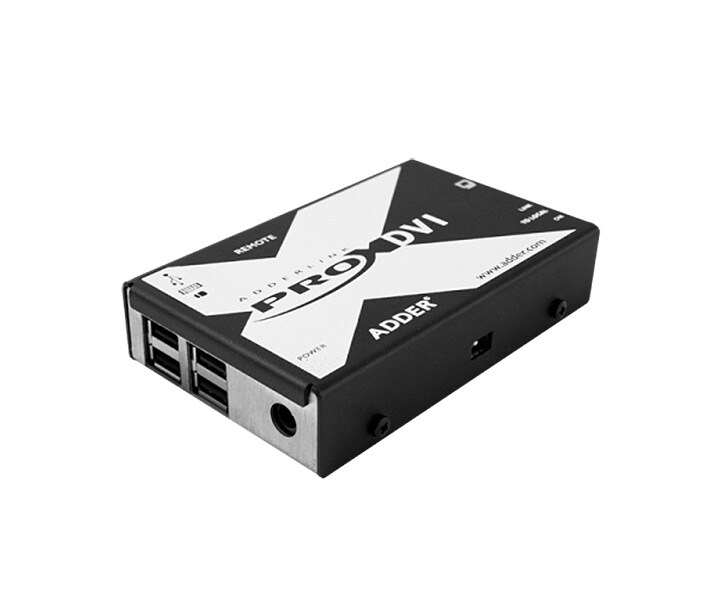

AdderLink X-DVIPRO-US Digital Video (DVI) And 4-Port USB Extender Pair, Up to 50 Meters (165 Ft).
ADDERLINK X-DVI PRO - Single link DVI and transparent USB over a single CATx cable
AdderLink X-DVI PRO is a high performance KVM (Keyboard, Video and Mouse) extender that enables you to locate your critical computing hardware in a secure and temperature controlled environment, away from the user work station environment, whilst maintaining the same user experience. It can transmit a Single Link DVI video stream, USB 2.0 and analog audio over a single CATx cable.
Perfect digital video, real time control
The X-DVI PRO extender uses an uncompressed system whereby every pixel of every frame are sent without loss. HDMI video and audio can be extended with the correct adapter cable, although HDCP and CEC are not supported.
50 meters over a single CATx cable
Video, USB 2.0 (Low and Full speed) and audio all pass along a single cable, providing up to 50 meters of extension. Distance is dependent upon video resolution, the CATx cable type, and the number of connection breaks for patch panels and wall plates. See table on reverse for details.
USB 2.0
Enables connection of any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks, 3D explorers and mass storage devices. Full speed (12Mbps) isochronous devices such as headsets are supported.
Power efficiency
The X-DVI PRO extender is designed to be highly power efficient and run with the minimum of input. In fact, the transmitter unit is so energy efficient that it can be powered solely from the host computer’s USB connection.
EDID management
The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.
Plug and Play
AdderLink X-DVI PRO extenders are delivered in a zero config state so you can plug them in and start working with them straight away. There’s no need for drivers or software to be installed.
Analog audio
Stereo CD quality (stereo channel 16 bit sampled at 44.1kHz) is available to transfer audio from local to remote for line out.
Digital audio
Supports 8 channels of HDMI audio simultaneously with analog audio.
Built to last
Adder Technology have a well-earned reputation for creating products that perform well and stay the course. The X-DVI PRO extender units are no exception and feature tough metallic enclosures to ensure they can easily withstand everyday treatment. The internal components and external connectors too are selected for their reliability in addition to their performance characteristics.

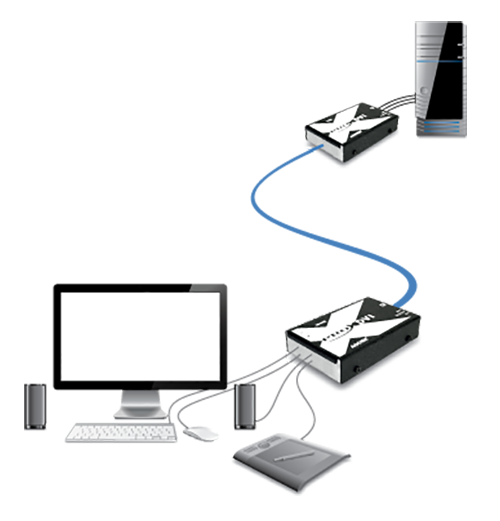

Example Diagram
