Rittal Carbon Steel Wallmount Enclosures

Rittal

Rittal Carbon Steel Wallmount Enclosures

Part #: Rittal Carbon Steel Wallmount Enclosures In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $173.76
Rittal Carbon Steel Wallmount Enclosures
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/Rittal-Wallmount-Enclosures.pdf
hide_matrix:
False
sales_description:
Rittal Carbon Steel Wallmount Enclosure, NEMA 4, RAL 7035 Light Gray, Includes Back Panel. (Please Specify Size.)
parent_sku:
Rittal Carbon Steel Wallmount Enclosures
facet_application:
Indoor
facet_application:
Outdoor
facet_material:
Carbon Steel
facet_mounting:
Wall
facet_rating:
NEMA 4
Adding… The item has been added
Commonly Purchased with:

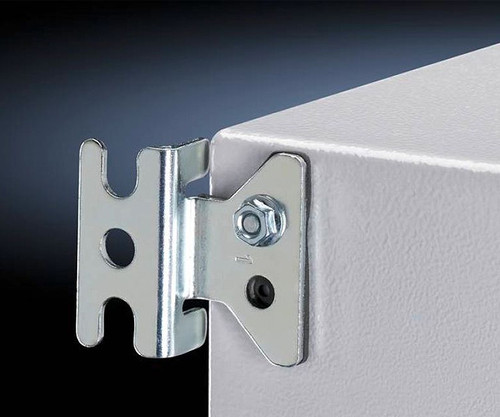

Rittal 2508.010 Wallmount Bracket
$44.80
Rittal 2584.100 Pole Mount Kit
$218.40

Models

Product ID Description Price
8017.528 Rittal WM121206NC Wallmount Enclosure, NEMA 4, 12x12x6 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP1212 Back Panel. $173.76
8017.529 Rittal WM161206NC Wallmount Enclosure, NEMA 4, 16x12x6 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP1612 Back Panel. $189.12
1034.250 Rittal WM161208NC Wallmount Enclosure, NEMA 4, 16x12x8 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP1612 Back Panel. $198.18
8017.530 Rittal WM161606NC Wallmount Enclosure, NEMA 4, 16x16x6 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP1616 Back Panel. $202.74
1244.250 Rittal WM161608NC Wallmount Enclosure, NEMA 4, 16x16x8 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP1616 Back Panel. $223.51
8017.531 Rittal WM162006NC Wallmount Enclosure, NEMA 4, 16x20x6 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP1620 Back Panel. $228.00
8017.541 Rittal WM162008NC Wallmount Enclosure, NEMA 4, 16x20x8 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP1620 Back Panel. $243.43
8017.532 Rittal WM201606NC Wallmount Enclosure, NEMA 4, 20x16x6 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP2016 Back Panel. $222.97
1045.250 Rittal WM201608NC Wallmount Enclosure, NEMA 4, 20x16x8 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP2016 Back Panel. $234.04
8017.533 Rittal WM202006NC Wallmount Enclosure, NEMA 4, 20x20x6 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP2020 Back Panel. $243.29
1050.250 Rittal WM202008NC Wallmount Enclosure, NEMA 4, 20x20x8 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP2020 Back Panel. $257.18
1350.250 Rittal WM202012NC Wallmount Enclosure, NEMA 4, 20x20x12 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP2020 Back Panel. $284.79
8017.544 Rittal WM202408NC Wallmount Enclosure, NEMA 4, 20x24x8 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP2024 Back Panel. $280.10
8017.534 Rittal WM241606NC Wallmount Enclosure, NEMA 4, 24x16x6 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP2416 Back Panel. $238.66
8017.545 Rittal WM241608NC Wallmount Enclosure, NEMA 4, 24x16x8 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP2416 Back Panel. $252.49
8017.535 Rittal WM242006NC Wallmount Enclosure, NEMA 4, 24x20x6 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP2420 Back Panel. $266.29
8017.546 Rittal WM242008NC Wallmount Enclosure, NEMA 4, 24x20x8 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP2420 Back Panel. $280.10
8017.561 Rittal WM242010NC Wallmount Enclosure, NEMA 4, 24x20x10 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP2420 Back Panel. $294.04
8017.574 Rittal WM242012NC Wallmount Enclosure, NEMA 4, 24x20x12 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP2420 Back Panel. $307.93
8017.536 Rittal WM242406NC Wallmount Enclosure, NEMA 4, 24x24x6 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP2424 Back Panel. $281.91
1060.250 Rittal WM242408NC Wallmount Enclosure, NEMA 4,12 24x24x8 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP2424 Back Panel. $289.35
8017.562 Rittal WM242410NC Wallmount Enclosure, NEMA 4, 24x24x10 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP2424 Back Panel. $307.78
8017.575 Rittal WM242412NC Wallmount Enclosure, NEMA 4, 24x24x12 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP2424 Back Panel. $330.85
8017.549 Rittal WM243008NC Wallmount Enclosure, NEMA 4, 24x30x8 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP2430 Back Panel. $332.12
8017.551 Rittal WM302008NC Wallmount Enclosure, NEMA 4, 30x20x8 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP3020 Back Panel. $316.16
1076.250 Rittal WM302408NC Wallmount Enclosure, NEMA 4, 30x24x8 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP3024 Back Panel. $326.15
8017.563 Rittal WM302410NC Wallmount Enclosure, NEMA 4, 30x24x10 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP3024 Back Panel. $353.91
8017.576 Rittal WM302412NC Wallmount Enclosure, NEMA 4, 30x24x12 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP3024 Back Panel. $363.03
1077.250 Rittal WM303008NC Wallmount Enclosure, NEMA 4, 30x30x8 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP3030 Back Panel. $436.71
1073.250 Rittal WM303012NC Wallmount Enclosure, NEMA 4, 30x30x12 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP3030 Back Panel. $483.76
8017.579 Rittal WM363012NC Wallmount Enclosure, NEMA 4, 36x30x12 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes WMMP3630 Back Panel. $543.10
8017.586 Rittal WM423612NC Wallmount Enclosure, NEMA 4, 42x36x12 Inch (HxWxD), Hinged Door with 3-Point Latching L-Handle, RAL 7035 Light Gray, Carbon Steel. Includes WMMP4236 Back Panel. $792.82
8017.588 Rittal WM483612NC Wallmount Enclosure, NEMA 4, 48x36x12 Inch (HxWxD), Hinged Door with 3-Point Latching L-Handle, RAL 7035 Light Gray, Carbon Steel. Includes WMMP4836 Back Panel. $747.71
8017.595 Rittal WM483616NC Wallmount Enclosure, NEMA 4, 48x36x16 Inch (HxWxD), Hinged Door with 3-Point Latching L-Handle, RAL 7035 Light Gray, Carbon Steel. Includes WMMP4836 Back Panel. (Special Pricing While Supplies Last - Please Consult INS For Availability) $818.10
8017.597 Rittal WM603616NC Wallmount Enclosure, Nema 4, 60 X 36 X 16 in (HxWxD), Hinged Door with 3-Point Latching L-Handle, RAL7035 Light Gray, Carbon Steel. Includes WMMP6036 Back Panel. $1,003.68

Details

Rittal Carbon Steel Wallmount Enclosure, NEMA 4, RAL 7035 Light Gray, Includes Back Panel. (Please Specify Size.)

Please Note: Enclosures may require being shipped on a pallet, which may incur additional shipping charges than those calculated using the shipping methods offered within the cart at check-out.  INS will contact the customer for authorization prior to shipment in these cases.

Rittal WM enclosures set the standard for maximum use of space and ease of installation. WM compact enclosures can be used for virtually any application. NEMA protection ratings are ensured through a secure locking system, foamed-in-place gasket and knife-edge perimeter. Features include a body constructed of cold rolled steel, steel doors and zinc-plated mounting panels. WM enclosures are readily available in all of the most popular sizes, protection categories and configurations – including universal disconnect cutout.

Features & Benefits

  • One-piece welded cold-rolled steel body
  • Carbon steel
  • Zinc-plated mounting panel standard
  • Available with universal disconnect cutout
  • Foamed-in-place gasket
  • Quick-release hidden 130° door hinges
  • Electrophoresis dip-coat primer with powder-coat surface
  • Flange-trough collar opening channels liquids and dust away from enclosure gasket and enclosure interior
  • Left-hand hinged door (the single door configuration is reversible)
  • Wall-mounting holes
  • Single door enclosures less than 20” in height have one ¼ turn latch with screwdriver insert
  • Single door enclosures 20 - 40” in height have two ¼-turn latches with screwdriver inserts
  • Single door enclosures greater than or equal to 42” in height have a 3-point latching L-handle
  • Double door and disconnect enclosures have a 2- or 3-point latching L-handle

Part Number Cross Reference

Part # Description Size (HxWxD)
8017.528 WM121206NC 12x12x06
8017.529 WM161206NC 16x12x06
1034.250 WM161208NC 16x12x08
8017.530 WM161606NC 16x16x06
1244.250 WM161608NC 16x16x08
8017.531 WM162006NC 16x20x06
8017.541 WM162008NC 16x20x08
8017.532 WM201606NC 20x16x06
1045.250 WM201608NC 20x16x08
8017.533 WM202006NC 20x20x06
1050.250 WM202008NC 20x20x08
1350.250 WM202012NC 20x20x12
8017.544 WM202408NC 20x24x08
8017.534 WM241606NC 24x16x06
8017.545 WM241608NC 24x16x08
8017.535 WM242006NC 24x20x06
8017.546 WM242008NC 24x20x08
8017.561 WM242010NC 24x20x10
8017.574 WM242012NC 24x20x12
8017.536 WM242406NC 24x24x06
1060.250 WM242408NC 24x24x08
8017.562 WM242410NC 24x24x10
8017.575 WM242412NC 24x24x12
8017.549 WM243008NC 24x30x08
8017.551 WM302008NC 30x20x08
1076.250 WM302408NC 30x24x08
8017.563 WM302410NC 30x24x10
8017.576 WM302412NC 30x24x12
1077.250 WM303008NC 30x30x08
1073.250 WM303012NC 30x30x12
8017.579 WM363012NC 36x30x12
8017.586 WM423612NC 42x36x12
8017.588 WM483612NC 48x36x12
8017.595 WM483616NC 48x36x16
8017.597 WM603616NC 60x36x16

Documentation

Spec Sheet
