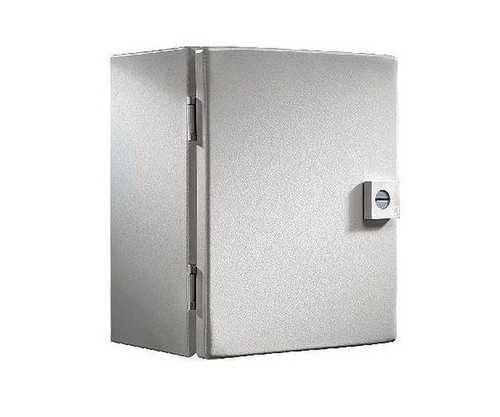

Rittal Carbon Steel Junction Boxes

Rittal

Rittal Carbon Steel Junction Boxes

Part #: Rittal Carbon Steel Junction Boxes In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $42.40
Rittal Carbon Steel Junction Boxes
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/Rittal-Wallmount-Enclosures.pdf
hide_matrix:
False
sales_description:
Rittal Carbon Steel Junction Box, NEMA 4, RAL 7035 Light Gray, Includes Back Panel. (Please Specify Size.)
parent_sku:
Rittal Carbon Steel Junction Boxes
facet_application:
Indoor
facet_application:
Outdoor
facet_material:
Carbon Steel
facet_mounting:
Junction
facet_rating:
NEMA 4X
Adding… The item has been added
Commonly Purchased with:

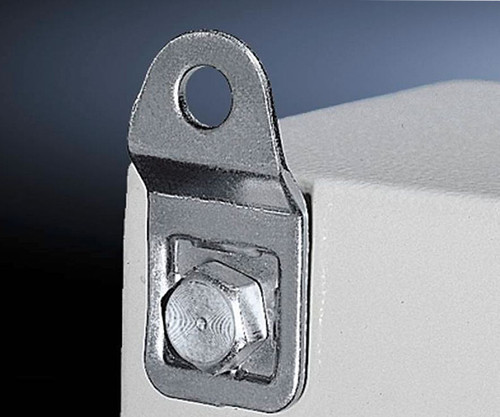

Rittal 1590.000 Wallmount Bracket
$14.20

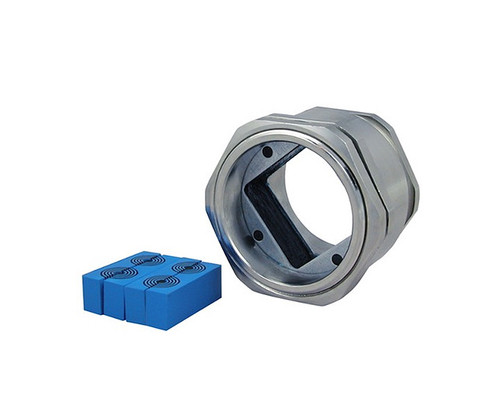

Roxtec EzEntry 4/4 Cable Entry Seal Kit
$66.28

Models

Product ID Description Price
8018.098 Rittal JB060604HC Junction Box, NEMA 4, 6x6x4 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes JBMP0606 Back Panel. $42.40
8018.103 Rittal JB080604HC Junction Box, NEMA 4, 8x6x4 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes JBMP0806 Back Panel. $46.59
8018.123 Rittal JB080606HC Junction Box, NEMA 4, 8x6x6 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes JBMP0806 Back Panel. $58.44
8018.105 Rittal JB080804HC Junction Box, NEMA 4, 8x8x4 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes JBMP0808 Back Panel. $58.43
8018.097 Rittal JB100804HC Junction Box, NEMA 4, 10x8x4 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes JBMP1008 Back Panel. $62.66
8018.104 Rittal JB100806HC Junction Box, NEMA 4, 10x8x6 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes JBMP1008 Back Panel. $70.28
8018.107 Rittal JB101006HC Junction Box, NEMA 4, 10x10x6 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes JBMP1010 Back Panel. $73.69
8018.585 Rittal JB121006HC Junction Box, NEMA 4, 12x10x6 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes JBMP1210 Back Panel. $77.91
8018.125 Rittal JB121008HC Junction Box, NEMA 4, 12x10x8 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes JBMP1210 Back Panel. $122.28
8018.100 Rittal JB121206HC Junction Box, NEMA 4, 12x12x6 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes JBMP1212 Back Panel. $89.01
8018.102 Rittal JB141206HC Junction Box, NEMA 4, 14x12x6 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes JBMP1412 Back Panel. $99.07
8018.101 Rittal JB161406HC Junction Box, NEMA 4, 16x14x6 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes JBMP1614 Back Panel. $115.97
8018.126 Rittal JB161408HC Junction Box, NEMA 4, 16x14x8 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, RAL 7035 Light Gray, Carbon Steel. Includes JBMP1614 Back Panel. $153.81

Details

Rittal Carbon Steel Junction Box, NEMA 4, RAL 7035 Light Gray, Includes Back Panel. (Please Specify Size.)

Rittal WM enclosures set the standard for maximum use of space and ease of installation. WM compact enclosures can be used for virtually any application. NEMA protection ratings are ensured through a secure locking system, foamed-in-place gasket and knife-edge perimeter. Features include a body constructed of cold rolled steel, steel doors and zinc-plated mounting panels. WM enclosures are readily available in all of the most popular sizes, protection categories and configurations – including universal disconnect cutout.

Features & Benefits

  • One-piece welded cold-rolled steel body
  • Stainless steel
  • Zinc-plated mounting panel standard
  • Available with universal disconnect cutout
  • Foamed-in-place gasket
  • Quick-release hidden 130° door hinges
  • Flange-trough collar opening channels liquids and dust away from enclosure gasket and enclosure interior
  • Left-hand hinged door (the single door configuration is reversible)
  • Wall-mounting holes
  • Single door enclosures less than 20” in height have one ¼ turn latch with screwdriver insert

Part Number Cross Reference

Part # Description Size (HxWxD)
8018.098 JB060604HC 6x6x4
8018.103 JB080604HC 8x6x4
8018.123 JB080606HC 8x6x6
8018.105 JB080804HC 8x8x4
8018.097 JB100804HC 10x08x04
8018.104 JB100806HC 10x08x06
8018.107 JB101006HC 10x10x06
8018.585 JB121006HC 12x10x06
8018.125 JB121008HC 12x10x08
8018.100 JB121206HC 12x12x06
8018.102 JB141206HC 14x12x06
8018.101 JB161406HC 16x14x06
8018.126 JB161408HC 16x14x08

Documentation

Spec Sheet
