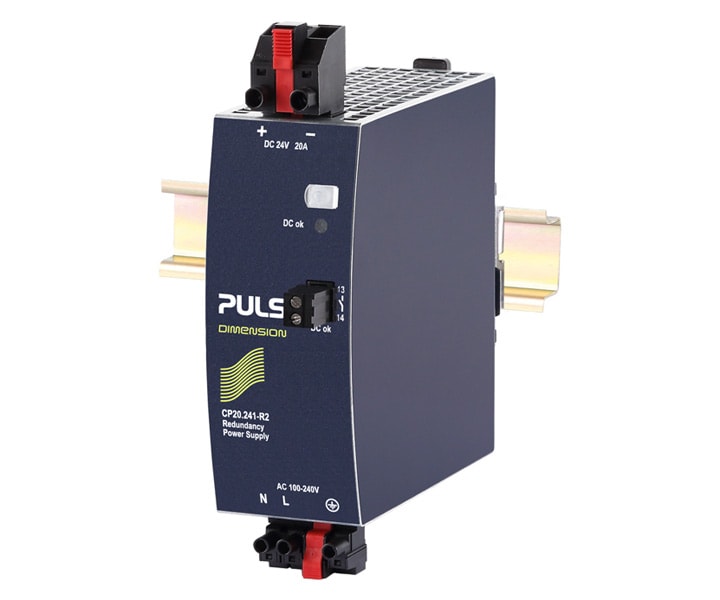

CP20.241-R2 Power Supply
Product ID
CP20.241-R2
Availability
DESCRIPTIONPuls Dimension CP-Series Reduced Width Single Phase Redundancy Power Supply with Built-In Decoupling, 480W, 24-28VDC, 20.0A Output, 100-240VAC & 110-150VDC Input, DIN-Rail Mount Metal Housing, -40° to +70°C, 20% Current Reserves, Class 1, Div. 2 Rated.
The Dimension CP-Series are cost optimized power supplies without compromising quality, reliability and performance. The most outstanding features of the CP20.241–R1/-R2 units are the high efficiency, electronic inrush current limitation, active PFC, wide operational temperature range and the extraordinary small size. The units include a decoupling MOSFET for building 1+1 or n+1 redundant power supply systems.
These redundancy power supplies come with three connection terminal options; screw terminals, spring-clamp terminals or plug connector terminals which allows replacement on an active application.
CP20.242-R2 version feature an enhanced DC input voltage range and the CP20.241-R2-C1 is additionally equipped with conformal coated pc-boards.
With high immunity to transients and power surges, low electromagnetic emission, a DC-OK signal contact for remote monitoring, and a large international approval package, makes this unit suitable for nearly every application.
