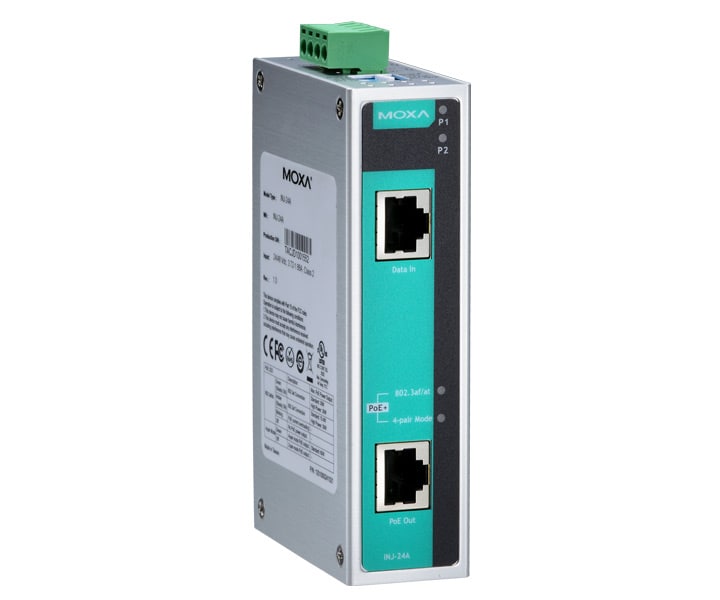

INJ-24A-T PoE+ Injector
Product ID INJ-24A-T
Availability
DESCRIPTIONMoxa 10/100/1000Base-T PoE+ Injector, IEEE 802.3af/at, Maximum Output of 60 W at 24/48 VDC, IP30 Metal Housing, DIN-Rail Mount, -40 to +75 deg C. The INJ-24A is a Gigabit High Power PoE+ Injectors that combines power and data and delivers them to a powered device over one Ethernet cable. Designed for power-hungry devices, the INJ-24 injector provides up to 60 watts, twice as much as conventional PoE+ injectors. It features DIP switch configurator and LED indicator for PoE management, and also supports 24/48 VDC power inputs for power redundancy and operational flexibility. The -40 to 75 deg C wide temperature range design makes the INJ-24 perfect for operating in critical industrial environments. Features & Benefits - High power mode provides up to 60 W
- DIP switch configurator and LED indicator for PoE management
- 3KV surge resistance for harsh environments
- Mode A and Mode B selectable for flexible installation
- Built-in 24/48 VDC booster for redundant dual power inputs
- -40 to 75 deg C operating temperature range (T model)
