MX-Overvoltage-Protection-Box-RJ45

Product ID
MX-Overvoltage-Protection-Box-RJ45

Availability

DESCRIPTION

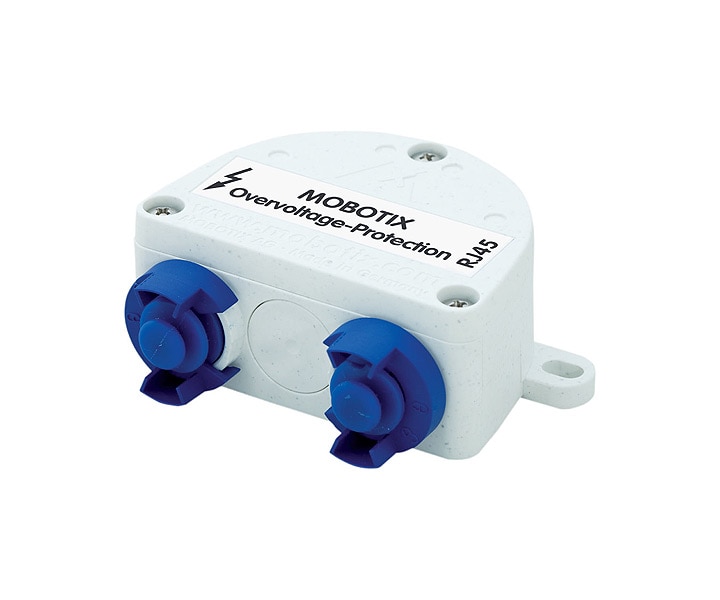

MOBOTIX MX-Overvoltage-Protection-Box-RJ45 Surge Protection Box With RJ45 Connection, IP65 Weatherproof Housing, -30 to +60 deg C.

In order to reduce the danger of damages resulting from surges, a specialist should establish a surge protection concept and implement such a system. Such a system consists of several surge protection zones, where each zone contains specific and generally applicable countermeasures. These range from lightning capture devices and double-shielded network cables to fine-level surge protection for end devices. When selecting the countermeasures, not only technical, but also economical aspects need to be considered in order to find the proper balance between protection and costs.

The MX-Overvoltage-Protection-Box-RJ45 and MX-Overvoltage-Protection-Box-LSA can be used in most of the protection zones and provide a cost-efficient protection against surges. It is generally recommended to install an MX-Overvoltage-Protection-Box if MOBOTIX cameras are installed outside of buildings. These devices protect MOBOTIX cameras against short surges of up to 4 kV.

Features

• Surge protection for MOBOTIX IP Cameras
• Protects against surges of up to 4 kV on the PoE network cabling
• For patch cable to patch cable or patch cable to installation cable (MX-Overvoltage-Protection-Box-LSA)
• Complete set including mounting supplies
• Weatherproof network connector (IP65) with surge protection of up to 4 kV for MOBOTIX IP cameras; ideal for replacing MX-Patch-Box
