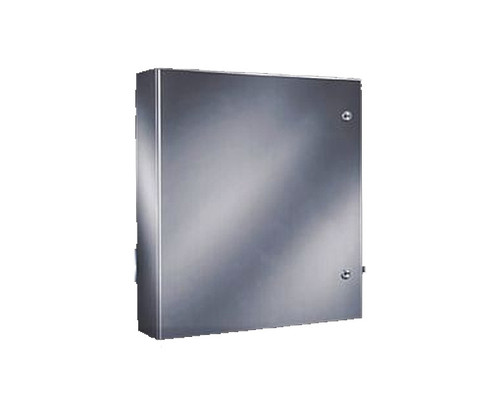

Rittal 304 Stainless Steel Wallmount Enclosures

Rittal

Rittal 304 Stainless Steel Wallmount Enclosures

Part #: Rittal 304 Stainless Steel Wallmount Enclosures In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $426.04
Rittal 304 Stainless Steel Wallmount Enclosures
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/Rittal-Wallmount-Enclosures.pdf
hide_matrix:
False
sales_description:
Rittal Type 304 Stainless Steel Wallmount Enclosure, NEMA 4X, Includes Back Panel. (Please Specify Size.)
parent_sku:
Rittal 304 Stainless Steel Wallmount Enclosures
facet_application:
Indoor
facet_application:
Outdoor
facet_material:
Stainless Steel
facet_mounting:
Wall
facet_rating:
NEMA 4X
Adding… The item has been added
Commonly Purchased with:

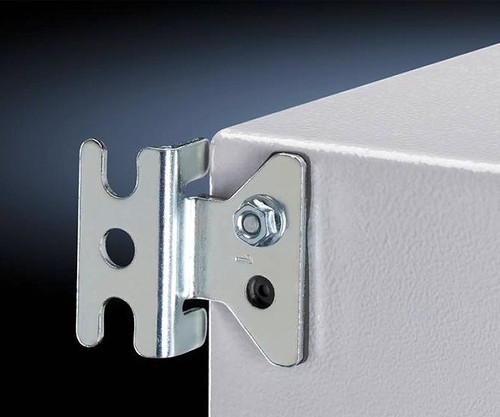

Rittal 2433.000 Wallmount Bracket
$110.15

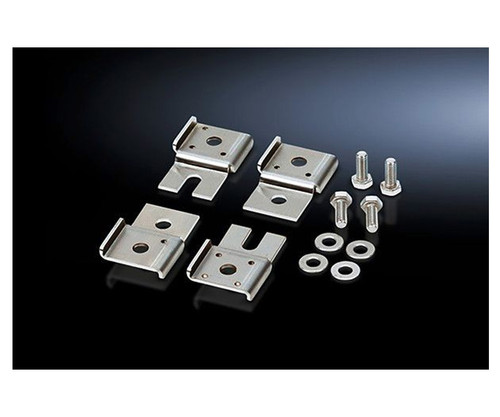

Rittal 8018.791 Wall Mount Brackets
$77.63

Models

Product ID Description Price
8017.620 Rittal WM121206N4 Wallmount Enclosure, NEMA 4X, 12x12x6 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes WMMP1212 Back Panel. $426.04
8017.614 Rittal WM161206N4 Wallmount Enclosure, NEMA 4X, 16x12x6 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes WMMP1612 Back Panel. $471.24
8017.608 Rittal WM161208N4 Wallmount Enclosure, NEMA 4X, 16x12x8 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes WMMP1612 Back Panel. $513.74
8017.610 Rittal WM161606N4 Wallmount Enclosure, NEMA 4X, 16x16x6 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes WMMP1616 Back Panel. $525.34
8017.613 Rittal WM201606N4 Wallmount Enclosure, NEMA 4X, 20x16x6 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes WMMP2016 Back Panel. $570.59
8017.605 Rittal WM201608N4 Wallmount Enclosure, NEMA 4X, 20x16x8 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes WMMP2016 Back Panel. $604.04
8017.616 Rittal WM202006N4 Wallmount Enclosure, NEMA 4X, 20x20x6 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes WMMP2020 Back Panel. $615.78
8018.478 Rittal WM202008N4 Wallmount Enclosure, NEMA 4X, 20x20x8 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes WMMP2020 Back Panel. $622.28
8017.621 Rittal WM241608N4 Wallmount Enclosure, NEMA 4X, 24x16x8 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes WMMP2416 Back Panel. $744.22
8017.603 Rittal WM242008N4 Wallmount Enclosure, NEMA 4X, 24x20x8 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes WMMP2420 Back Panel. $780.37
8017.622 Rittal WM242010N4 Wallmount Enclosure, NEMA 4X, 24x20x10 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes WMMP2420 Back Panel. $860.94
8017.600 Rittal WM242408N4 Wallmount Enclosure, NEMA 4X, 24x24x8 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes WMMP2424 Back Panel. $812.40
8018.474 Rittal WM242412N4 Wallmount Enclosure, NEMA 4X, 24x24x12 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes WMMP2424 Back Panel. $962.91
8017.607 Rittal WM302408N4 Wallmount Enclosure, NEMA 4X, 30x24x8 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes WMMP3024 Back Panel. $951.99
8017.612 Rittal WM302412N4 Wallmount Enclosure, NEMA 4X, 30x24x12 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes WMMP3024 Back Panel. $1,058.65
8017.611 Rittal WM303008N4 Wallmount Enclosure, NEMA 4X, 30x30x8 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes WMMP3030 Back Panel. $1,070.38
8017.606 Rittal WM363012N4 Wallmount Enclosure, NEMA 4X, 36x30x12 Inch (HxWxD), Hinged Door with 2 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes WMMP3630 Back Panel. $1,537.72
8017.617 Rittal WM423612N4 Wallmount Enclosure, NEMA 4X, 42x36x12 Inch (HxWxD), Hinged Door with 3-Point Latching L-Handle, Type 304 Stainless Steel. Includes WMMP4236 Back Panel. $1,862.34
8017.601 Rittal WM483612N4 Wallmount Enclosure, NEMA 4X, 48x36x12 Inch (HxWxD), Hinged Door with 3-Point Latching L-Handle, Type 304 Stainless Steel. Includes WMMP4836 Back Panel. $2,079.56
8018.515 Rittal WM483616N4 Wallmount Enclosure, NEMA 4X, 48x36x16 Inch (HxWxD), Hinged Door with 3-Point Latching L-Handle, Type 304 Stainless Steel. Includes WMMP4836 Back Panel. $2,400.28
8018.521 Rittal WM603616N4 Nema 4X Wallmount Enclosure with 3-Point Latching L-Handle, 59.06H X 35.43W X 15.75D in, #304 Stainless Steel. Zinc Plated Backpanel Included. $3,240.84

Details

Rittal Type 304 Stainless Steel Wallmount Enclosure, NEMA 4X, Includes Back Panel. (Please Specify Size.)

Please Note: Enclosures may require being shipped on a pallet, which may incur additional shipping charges than those calculated using the shipping methods offered within the cart at check-out.  INS will contact the customer for authorization prior to shipment in these cases.

Rittal WM enclosures set the standard for maximum use of space and ease of installation. WM compact enclosures can be used for virtually any application. NEMA protection ratings are ensured through a secure locking system, foamed-in-place gasket and knife-edge perimeter. Features include a body constructed of cold rolled steel, steel doors and zinc-plated mounting panels. WM enclosures are readily available in all of the most popular sizes, protection categories and configurations – including universal disconnect cutout.

Features & Benefits

  • One-piece welded cold-rolled steel body
  • Stainless steel
  • Zinc-plated mounting panel standard
  • Available with universal disconnect cutout
  • Foamed-in-place gasket
  • Quick-release hidden 130° door hinges
  • Flange-trough collar opening channels liquids and dust away from enclosure gasket and enclosure interior
  • Left-hand hinged door (the single door configuration is reversible)
  • Wall-mounting holes
  • Single door enclosures less than 20” in height have one ¼ turn latch with screwdriver insert
  • Single door enclosures 20 - 40” in height have two ¼-turn latches with screwdriver inserts
  • Single door enclosures greater than or equal to 42” in height have a 3-point latching L-handle
  • Double door and disconnect enclosures have a 2- or 3-point latching L-handle

Part Number Cross Reference

Part # Description Size (HxWxD)
8017.620 WM121206N4 12x12x06
8017.614 WM161206N4 16x12x06
8017.608 WM161208N4 16x12x08
8017.610 WM161606N4 16x16x06
8017.613 WM201606N4 20x16x06
8017.605 WM201608N4 20x16x08
8017.616 WM202006N4 20x20x06
8018.478 WM202008N4 20x20x08
8017.621 WM241608N4 24x16x08
8017.603 WM242008N4 24x20x08
8017.622 WM242010N4 24x20x10
8017.600 WM242408N4 24x24x08
8018.474 WM242412N4 24x24x12
8017.607 WM302408N4 30x24x08
8017.612 WM302412N4 30x24x12
8017.611 WM303008N4 30x30x08
8017.606 WM363012N4 36x30x12
8017.617 WM423612N4 42x36x12
8017.601 WM483612N4 48x36x12
8018.515 WM483616N4 48x36x16
8018.521 WM603616N4 60x36x16

Documentation

Spec Sheet
