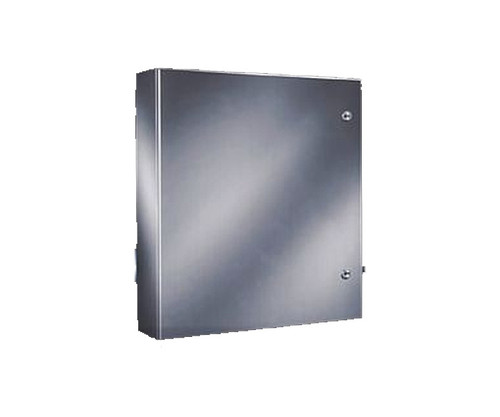

Rittal 304 Stainless Steel Junction Boxes

Rittal

Rittal 304 Stainless Steel Junction Boxes

Part #: Rittal 304 Stainless Steel Junction Boxes In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $167.62
Rittal 304 Stainless Steel Junction Boxes
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/Rittal-Wallmount-Enclosures.pdf
hide_matrix:
False
sales_description:
Rittal Type 304 Stainless Steel Junction Boxes, NEMA 4X, Includes Back Panel. (Please Specify Size.)
parent_sku:
Rittal 304 Stainless Steel Junction Boxes
facet_application:
Indoor
facet_application:
Outdoor
facet_material:
Stainless Steel
facet_mounting:
Junction
facet_rating:
NEMA 4X
Adding… The item has been added
Commonly Purchased with:

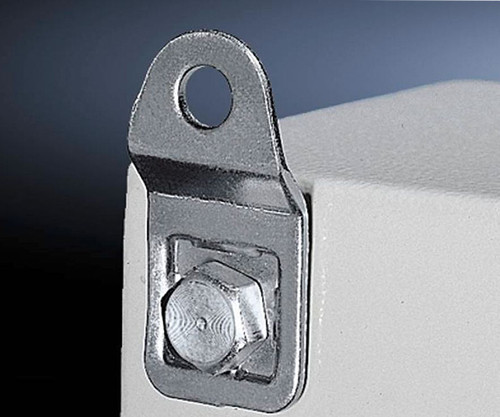

Rittal 1594.000 Wallmount Bracket
$66.04
Roxtec EzEntry 10/10 Cable Entry Seal Kit
$122.95

Models

Product ID Description Price
8018.110 Rittal JB060604H4 Junction Box, NEMA 4X, 6x6x4 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes JBMP0606 Back Panel. $167.62
8018.129 Rittal JB080604H4 Junction Box, NEMA 4X, 8x6x4 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes JBMP0806 Back Panel. $176.47
8018.138 Rittal JB080606H4 Junction Box, NEMA 4X, 8x6x6 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes JBMP0806 Back Panel. $203.25
8018.131 Rittal JB080804H4 Junction Box, NEMA 4X, 8x8x4 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes JBMP0808 Back Panel. $241.46
8018.109 Rittal JB100804H4 Junction Box, NEMA 4X, 10x8x4 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes JBMP1008 Back Panel. $241.46
8018.130 Rittal JB100806H4 Junction Box, NEMA 4X, 10x8x6 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes JBMP1008 Back Panel. $259.44
8018.133 Rittal JB101006H4 Junction Box, NEMA 4X, 10x10x6 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes JBMP1010 Back Panel. $274.43
8018.108 Rittal JB121006H4 Junction Box, NEMA 4X, 12x10x6 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes JBMP1210 Back Panel. $292.49
8018.139 Rittal JB121008H4 Junction Box, NEMA 4X, 12x10x8 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes JBMP1210 Back Panel. $317.59
8018.111 Rittal JB121206H4 Junction Box, NEMA 4X, 12x12x6 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes JBMP1212 Back Panel. $321.56
8018.112 Rittal JB141206H4 Junction Box, NEMA 4X, 14x12x6 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes JBMP1412 Back Panel. $347.50
8018.113 Rittal JB161406H4 Junction Box, NEMA 4X, 16x14x6 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes JBMP1614 Back Panel. $371.56
8018.140 Rittal JB161408H4 Junction Box, NEMA 4X, 16x14x8 Inch (HxWxD), Hinged Door with 1 x Quarter-Turn Latch, Type 304 Stainless Steel. Includes JBMP1614 Back Panel. $425.66

Details

Rittal Type 304 Stainless Steel Junction Boxes, NEMA 4X, Includes Back Panel. (Please Specify Size.)

Rittal WM enclosures set the standard for maximum use of space and ease of installation. WM compact enclosures can be used for virtually any application. NEMA protection ratings are ensured through a secure locking system, foamed-in-place gasket and knife-edge perimeter. Features include a body constructed of cold rolled steel, steel doors and zinc-plated mounting panels. WM enclosures are readily available in all of the most popular sizes, protection categories and configurations – including universal disconnect cutout.

Features & Benefits

  • One-piece welded cold-rolled steel body
  • Stainless steel
  • Zinc-plated mounting panel standard
  • Available with universal disconnect cutout
  • Foamed-in-place gasket
  • Quick-release hidden 130° door hinges
  • Flange-trough collar opening channels liquids and dust away from enclosure gasket and enclosure interior
  • Left-hand hinged door (the single door configuration is reversible)
  • Wall-mounting holes
  • Single door enclosures less than 20” in height have one ¼ turn latch with screwdriver insert

Part Number Cross Reference

Part # Description Size (HxWxD)
8018.110 JB060604H4 6x6x4
8018.129 JB080604H4 8x6x4
8018.138 JB080606H4 8x6x6
8018.131 JB080804H4 8x8x4
8018.109 JB100804H4 10x08x04
8018.130 JB100806H4 10x08x06
8018.133 JB101006H4 10x10x06
8018.108 JB121006H4 12x10x06
8018.139 JB121008H4 12x10x08
8018.111 JB121206H4 12x12x06
8018.112 JB141206H4 14x12x06
8018.113 JB161406H4 16x14x06
8018.140 JB161408H4 16x14x08

Documentation

Spec Sheet
