Models
| Product ID | Description | Price | |
|---|---|---|---|
| NPort 6250-M-SC | Moxa Serial Device Server, 2-Port RS-232/422/485 to 100Base-FX Multimode SC Fiber Ethernet, 120 VAC Power Supply Included, 0-55 deg C. | $572.21 | |
| NPort 6250-S-SC | Moxa Serial Device Server, 2-Port RS-232/422/485 to 100Base-FX Singlemode SC Fiber Ethernet, 120 VAC Power Supply Included, 0-55 deg C. | $698.56 | |
| NPort 6250 | Moxa Serial Device Server, 2-Port RS-232/422/485 to 10/100Base-TX Ethernet, 120 VAC Power Supply Included, 0-55 deg C. | $456.13 | |
| NPort 6150 | Moxa Serial Device Server, 1-Port RS-232/422/485 to 10/100Base-TX Ethernet, 120 VAC Power Supply Included, 0-55 deg C. | $356.99 | |
| NPort 6150-T | Moxa Serial Device Server, 1-Port RS-232/422/485 to 10/100Base-TX Ethernet, 12-48 VDC Powered (Power Supply Not Included), -40 to +75 deg C. | $415.93 | |
| NPort 6250-T | Moxa Serial Device Server, 2-Port RS-232/422/485 to 10/100Base-TX Ethernet, 12-48 VDC Powered (Power Supply Not Included), -40 to +75 deg C. | $572.21 | |
| NPort 6250-M-SC-T | Moxa Serial Device Server, 2-Port RS-232/422/485 to 100Base-FX Multimode SC Fiber Ethernet, 12-48 VDC Powered (Power Supply Not Included), -40 to +75 deg C. | $720.32 | |
| NPort 6250-S-SC-T | Moxa Serial Device Server, 2-Port RS-232/422/485 to 100Base-FX Singlemode SC Fiber Ethernet, 12-48 VDC Powered (Power Supply Not Included), -40 to +75 deg C. | $927.38 | |
Details

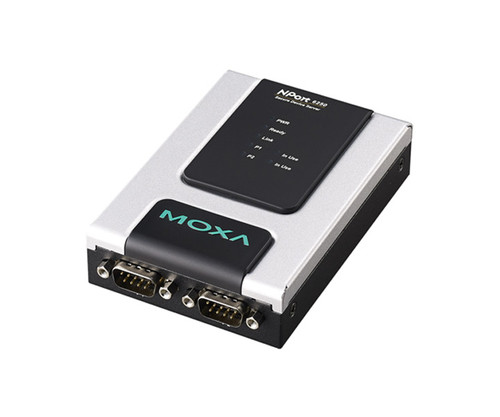

Moxa NPort 6100/6200 Series Secure Device Server, 1 or 2-Port RS-232/422/485, 12-48V, w/ Adapter. (Please Specify Model.)
The NPort® 6000 device servers use the SSL and SSH protocols to transmit encrypted serial data over Ethernet. The NPort 6000€™s 3-in-1 serial port supports RS-232, RS-422, and RS-485, with the interface selected from an easy-to-access configuration menu. The NPort 6000 2-port device servers are available for connecting to a 10/100BaseT(X) copper Ethernet or 100BaseT(X) fiber network. Both single-mode and multi-mode fiber are supported.
Secure Data Transmission
For many applications, guaranteeing secure data transmission is an important concern when connecting serial devices to a network. To answer this concern, the NPort® 6000 supports the SSL and SSH protocols, which work by encrypting data before sending it over the network. With the NPort 6000, users can rest assured that serial data is transmitted securely over both private and public networks.
Zero Data Loss If Ethernet Connection Fails
The NPort® 6250 device servers help guarantee reliability by providing users with secure serial-to-Ethernet data transmission and a customer-oriented hardware design. If the Ethernet connection fails, the NPort® 6250 will queue all serial data in its internal 64 KB port buffer. When the Ethernet connection is re-established, the NPort® 6250 will immediately release all of the data in the buffer in the order that it was received. Users can increase the port buffer size by installing an SD card.
Features and Benefits
- Secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal, and Reverse Terminal
- Supports nonstandard baudrates with high precision
- NPort 6250: Choice of network medium: 10/100BaseT(X) or 100BaseFX
- Enhanced remote configuration with HTTPS and SSH
- Port buffers for storing serial data when the Ethernet is offline
- Supports IPv6
- Generic serial commands supported in Command-by-Command mode
- Security features based on IEC 62443
