IMC-101 Series Media Converters
IMC-101 Series Media Converters

Moxa

IMC-101 Series Media Converters

Part #: IMC-101 Series In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $308.14
IMC-101 Series
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/IMC-101_Series.pdf
hide_matrix:
False
sales_description:
Moxa Industrial Media Converter, 10/100Base-T(X) to 100Base-FX, 24 VDC, DIN-Rail Mount. (Please Specify Model and Ratings.)
parent_sku:
IMC-101 Series
facet_certification:
Hazardous Location
facet_form_factor:
Fixed
facet_port_speed:
10/100
facet_port_types:
Copper
facet_port_types:
Multimode
facet_port_types:
Singlemode
facet_temperature_range:
Extended
facet_temperature_range:
Standard
facet_type:
Ethernet to Fiber
Adding… The item has been added
Commonly Purchased with:
DINSpace BRKT-19DR-5U-CM Rackmount DIN-Rail Adapter
$300.00

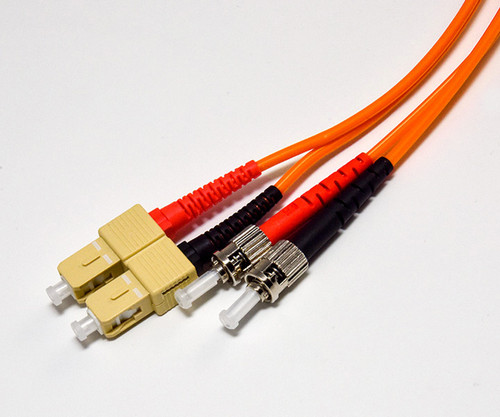

Fiber Optic Patch Cables
$17.90
See Options

Models

Product ID Description Price
IMC-101-M-SC Moxa Industrial Media Converter, 10/100Base-T(X) to 100Base-FX Multimode SC, 0 to +60 deg. C, 24 VDC, DIN-Rail Mount. $308.14
IMC-101-M-SC-T Moxa Industrial Media Converter, 10/100Base-T(X) to 100Base-FX Multimode SC, -40 to +75 deg. C, 24 VDC, DIN-Rail Mount. $375.21
IMC-101-M-ST Moxa Industrial Media Converter, 10/100Base-T(X) to 100Base-FX Multimode ST, 0 to +60 deg. C, 24 VDC, DIN-Rail Mount. $308.14
IMC-101-M-ST-T Moxa Industrial Media Converter, 10/100Base-T(X) to 100Base-FX Multimode ST, -40 to +75 deg. C, 24 VDC, DIN-Rail Mount. $375.21
IMC-101-S-SC Moxa Industrial Media Converter, 10/100Base-T(X) to 100Base-FX Singlemode SC, 0 to +60 deg. C, 24 VDC, DIN-Rail Mount. $523.24
IMC-101-S-SC-T Moxa Industrial Media Converter, 10/100Base-T(X) to 100Base-FX Singlemode SC, -40 to +75 deg. C, 24 VDC, DIN-Rail Mount. $603.90
IMC-101-S-SC-80 Moxa Industrial Media Converter, 10/100Base-T(X) to 100Base-FX Singlemode (80km) SC, 0 to +60 deg. C, 24 VDC, DIN-Rail Mount. $1,847.64
IMC-101-S-SC-80-T Moxa Industrial Media Converter, 10/100Base-T(X) to 100Base-FX Singlemode (80km) SC, -40 to +75 deg. C, 24 VDC, DIN-Rail Mount. $1,932.84
IMC-101-M-SC-IEX Moxa Industrial Media Converter, 10/100Base-T(X) to 100Base-FX Multimode SC, 0 to +60 deg.C, 24 VDC, DIN-Rail Mount, IECEx / C1D2 Rated. $335.03
IMC-101-M-SC-T-IEX Moxa Industrial Media Converter, 10/100Base-T(X) to 100Base-FX Multimode SC, -40 to +75 deg.C, 24 VDC, DIN-Rail Mount, IECEx / C1D2 Rated. $402.10
IMC-101-M-ST-IEX Moxa Industrial Media Converter, 10/100Base-T(X) to 100Base-FX Multimode ST, 0 to 60 deg.C, 24 VDC, DIN-Rail Mount, IECEx / C1D2 Rated. $335.03
IMC-101-M-ST-T-IEX Moxa Industrial Media Converter, 10/100Base-T(X) to 100Base-FX Multimode ST, -40 to +75 deg.C, 24 VDC, DIN-Rail Mount, IECEx / C1D2 Rated. $402.10
IMC-101-S-SC-IEX Moxa Industrial Media Converter, 10/100Base-T(X) to 100Base-FX Singlemode SC, 0 to +60 deg.C, 24 VDC, DIN-Rail Mount, IECEx / C1D2 Rated. $577.01
IMC-101-S-SC-T-IEX Moxa Industrial Media Converter, 10/100Base-T(X) to 100Base-FX Singlemode SC, -40 to +75 deg.C, 24 VDC, DIN-Rail Mount, IECEx / C1D2 Rated. $671.27

Details

Moxa Industrial Media Converter, 10/100Base-T(X) to 100Base-FX, 24 VDC, DIN-Rail Mount. (Please Specify Model and Ratings.)

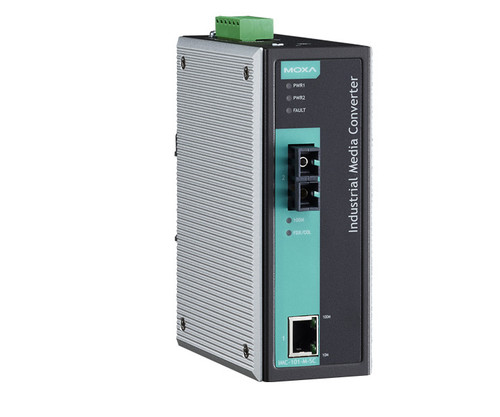

The IMC-101 industrial media converters provide industrial grade media conversion between 10/100BaseT(X) and 100BaseFX (SC/ST connectors). The IMC-101's reliable industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101 converter comes with a relay output warning alarm to help prevent damage and loss. The IMC-101 media converters are designed for harsh industrial environments, such as in hazardous locations (Class 1, Division 2/Zone 2, DNV, and GL Certification), and comply with FCC, TV, UL, and CE standards. All IMC-101 series are subjected to a 100% burn-in test.

Features and Benefits

  • 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
  • Link Fault Pass-Through (LFP) (media converters should work as a pair)
  • Power failure, port break alarm by relay output
  • Redundant power inputs
  • Designed for hazardous locations (Class 1 Div. 2/Zone 2), DNV & GL. (IECEx Models)
  • Temperature Variants:
    • Standard Temp, 0 to +60 deg. C.
    • Extended Temp, -40 to +75 deg. C.

Documentation

Spec Sheet
