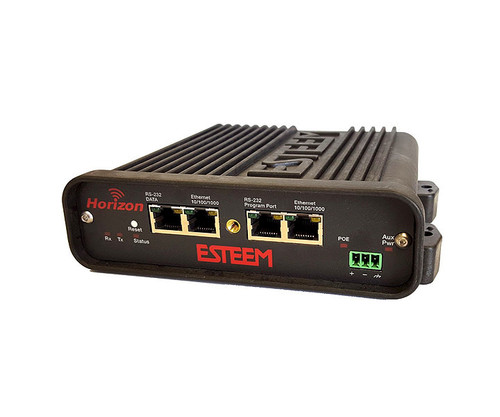

Horizon2.4-MIMO-GPS Ethernet / Serial Radio

ESTeem Horizon Series 2.4 GHz NEMA4 Outdoor-Rated Radio With GPS Tracking Module Installed, MIMO Version, IndustrialMESH 802.11n/g/b, Up To 150 Mbps, 5-10 Miles Range (Typical), Dual Gigabit Ethernet Ports, PoE+, RS-232 Serial Port, AES Security, 1W RF Output.

Horizon 2.4 GHz, 150 Mbps, Wireless Ethernet and Serial

High Speed Wireless Ethernet
The ESTeem Horizon 2.4-MIMO, designed for the rigors of the Industrial, Public Safety, and Federal markets, is the next generation wireless modem with Dual Gigabit Ethernet ports and a Legacy RS-232C data port. The Horizon 2.4-MIMO provides wireless networking with RF data rates up to 150 Mbps, with a nominal 5 to 10+ mile range depending on the type an antenna used. Now you have greater bandwidth for all your control, video, and VoIP needs on one radio channel. Scalable Wireless networks over large geographical areas become a reality using the Horizon 2.4 MESH feature. The Horizon 2.4-MIMO utilizes a configurable high-speed 802.11n protocol interface for Wi-Fi communications with 3rd party mobile devices. All 2.4 can be configured in Station Mode to be used in mobile applications under a Horizon 2.4 radio canopy.

Horizon 2.4 Reduces Site Costs

• Outdoor case design. The new NEMA 4 case design and weatherproofing kit allows the unit to be indoor or outdoor pole mounted in harsh environments. This feature eliminates the enclosure costs needed with other radios.
• Eliminates costly RF feed lines. Direct pole mounting eliminates feedline cost and high signal losses.
• Lower installation costs. Simple pole mounting saves installation time and expense.

Features

• IndustrialMESH Self Healing Network Architecture
• AES Security
• 5 to 10+ Mile Nominal Range
• Industrial Hardened Case
• Direct Outdoor Pole Mountable
• Extended Temperature Specifications
• Power over Ethernet (PoE+)
• Dual Gigabit Ethernet Ports
• Serial RS-232 Communications Port
• GPS Location Module
