Greyhound 103 Modular Series Switches

Hirschmann

Greyhound 103 Modular Series Switches

Part #: Greyhound 103 Modular Series In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $1,696.25
Greyhound 103 Modular Series
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/Belden-Greyhound-103-Switches.pdf
hide_matrix:
False
sales_description:
Hirschmann GRS103-6TX-4C-1HV-2S Modular Ethernet Switch, 2 Open 8-Port Media Module Slots (Media Modules Sold Separately), Single or Redundant 100-240 VAC Power Supplies, 19" Rackmount, -10 to +60 deg C, HiOS L2S (Layer 2 Standard or Advanced) Firmwa
sales_description_2:
re, Fanless, 1U. (Please Specify Model.)
parent_sku:
Greyhound 103 Modular Series
facet_form_factor:
Modular
facet_management:
Managed - Layer 2
facet_mounting:
Rackmount
facet_port_count:
13 to 24
facet_port_speed:
10/100
facet_port_speed:
Partial GB
facet_port_types:
Copper Only
facet_port_types:
Multimode
facet_port_types:
RJ45
facet_port_types:
SFP Fiber
facet_port_types:
Singlemode
facet_power_considerations:
High Voltage (Typically 110-240 VAC or 110-250 VDC)
facet_temperature_range:
Standard
Adding… The item has been added
Commonly Purchased with:

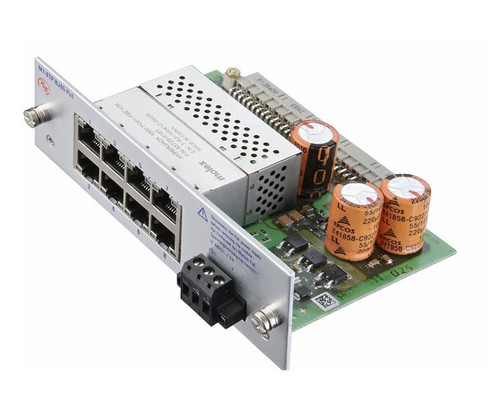

Hirschmann M1-8TP-RJ45 PoE Media Module
$929.42

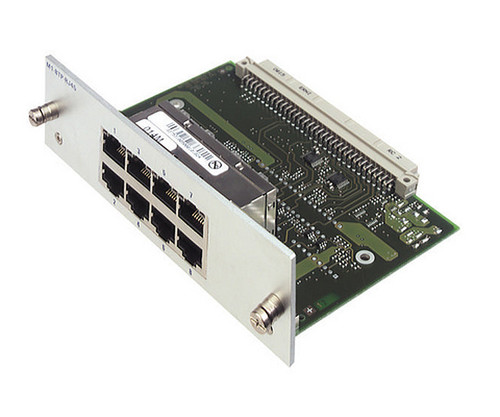

Hirschmann M1-8TP-RJ45 Media Module
$371.48

Models

Product ID Description Price
942 298-001 Hirschmann GRS103-6TX-4C-1HV-2S Modular Ethernet Switch, 6 x 10/100Base-TX Ports Fixed, 4 x FE/GE Combo Ports, 2 Open 8-Port Media Module Slots (Media Modules Sold Separately), Single 100-240 VAC Power Supply, 19" Rackmount, -10 to +60 deg C, HiOS L2S (Layer 2 Standard) Firmware. $1,696.25
942 298-002 Hirschmann GRS103-6TX-4C-1HV-2A Modular Ethernet Switch, 6 x 10/100Base-TX Ports Fixed, 4 x FE/GE Combo Ports, 2 Open 8-Port Media Module Slots (Media Modules Sold Separately), Single 100-240 VAC Power Supply, 19" Rackmount, -10 to +60 deg C, HiOS L2A (Layer 2 Advanced) Firmware. (Replacement For MACH102-8TP, Pt #943 969-001). $2,057.15
942 298-003 Hirschmann GRS103-6TX-4C-2HV-2S Modular Ethernet Switch, 6 x 10/100Base-TX Ports Fixed, 4 x FE/GE Combo Ports, 2 Open 8-Port Media Module Slots (Media Modules Sold Separately), Redundant 100-240 VAC Power Supplies, 19" Rackmount, -10 to +60 deg C, HiOS L2S (Layer 2 Standard) Firmware. $2,147.39
942 298-004 Hirschmann GRS103-6TX-4C-2HV-2A Modular Ethernet Switch, 6 x 10/100Base-TX Ports Fixed, 4 x FE/GE Combo Ports, 2 Open 8-Port Media Module Slots (Media Modules Sold Separately), Redundant 100-240 VAC Power Supplies, 19" Rackmount, -10 to +60 deg C, HiOS L2A (Layer 2 Advanced) Firmware. $2,508.29

Details

Hirschmann GRS103-6TX-4C-1HV-2S Modular Ethernet Switch, 2 Open 8-Port Media Module Slots (Media Modules Sold Separately), Single or Redundant 100-240 VAC Power Supplies, 19" Rackmount, -10 to +60 deg C, HiOS L2S (Layer 2 Standard or Advanced) Firmware, Fanless, 1U. (Please Specify Model.)

Hirschmann GREYHOUND 103 Series Modular Industrial Ethernet Switches

Robust Industrial Access Layer Switches
GREYHOUND 103 Ethernet switches combine hardened industrial hardware with robust switching capabilities to deliver fast, secure, cost-effective and future-proof connectivity.

  • Modular design provides feature and price flexibility, so customers only buy the speed and power their application needs
  • Robust security and high-performance switching features offered by the best-in-class HiOS software
  • Ability to reuse existing media modules for an easy, cost-effective way to upgrade network infrastructure

Key Features

  • More than 20 ports in a 1U fanless rackmount enclosure
  • Up to 22 Fast Ethernet ports and 4 Fast/ Gigabit combo ports
  • Modular design allows for main chassis to be expanded with one or two media modules • Multimode, single mode, SFP fiber types available
  • Operating temperature range of -10 deg. C to +60 deg. C
  • 274 W total Power over Ethernet (PoE+) [137 W per module]
  • HiOS L2S and L2A software options available
  • Free software upgrades in the field

Hirschmann’s GREYHOUND 103 multipurpose industrial access layer switches connect many end devices, for several applications in industrial environments.
