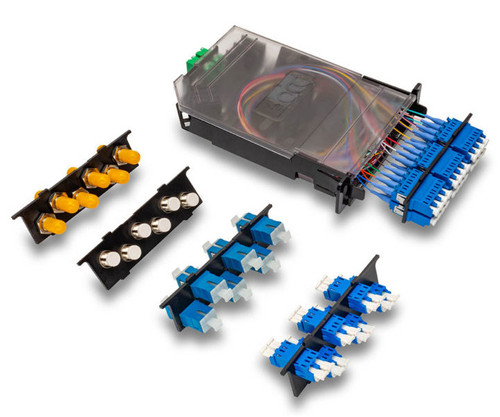

FSCS812DLCP Fiber Splice Cassette

Optical Cable Corporation Fiber Splice Cassette, 12 Fiber, (6) x Duplex LC, Singlemode, Splice with Fiber Pigtails.

OCC FIBER SPLICE CASSETTE
FAST SPLICING IN A COMPACT SYSTEM

Introducing the all new Fiber Splice Cassette designed for quick and easy installation, saving you time and frustration. The Fiber Splice Cassette is a flexible, versatile, and scalable part of the OCC Enterprise Solution.

FLEXIBLE
OCC’s Fiber Splice Cassette is compatible with any common fusion splicer. It has been designed with a removable adapter plate enabling splicing comfortably outside the cassette, then easy fiber routing into the cassette for a faster, easier installation experience. The removable adapter plate can quickly be replaced for density upgrades and to incorporate new connector standards into your existing infrastructure. OCC's Fiber Splice Cassette includes two straight and two angled cable entry points, allowing the flexibility to choose point of entry to maintain proper bend radii in a variety of enclosures.

VERSATILE
OCC’s Fiber Splice Cassette utilizes the same easy installation procedure for all applications including Telecommunication Closets, Local Area Networks, Central Area Networks, Central Offices, Remote Terminals, Hub Sites, Distributed Antenna Systems (DAS), and Data Centers. Our cassette's rubber cable retention blocks were designed to accommodate multiple cable diameters and eliminates the need for cable ties, blue felt, or spiral wrap for small cables or subunits. The cable retention blocks can be removed to accommodate larger diameter cables.

SCALABLE
OCC’s Fiber Splice Cassette has removable rubber splice holders and cable retention blocks to separate and manage fibers with less chance of damage. Each removable rubber fiber splice holder can hold up to 12 splices, maintaining fiber organization during splicing and installation. By changing the adapter plate and adding another splice holder, a 12-fiber cassette can easily be converted to a 24-fiber cassette later on as your density requirements grow.

Features & Benefits

• Each pre-terminated splice cassette includes splice holder(s), cable retention holder(s), 40mm splice shrink sleeves, fiber pigtails, and a populated adapter plate.
• Designed to terminate up to 24-fibers.
• Splice blocks include a patent-pending double sided access, designed to hold 12 splice sleeves.
• Clear cover allows for quick and easy visual inspection.
• Backward compatible to most of our standard 600 series rack, wall, and zone fiber enclosures.
• Fits a variety of cable applications, including tight buffered, fiber units, micro-distribution, and loose tube.
• Removable adapter plate creates an easier installation experience and quicker cable management.
• New latch design for inserting into fiber enclosure - no “push-pin” holders needed.
• Optional MTP/MPO trunk cable entry.
