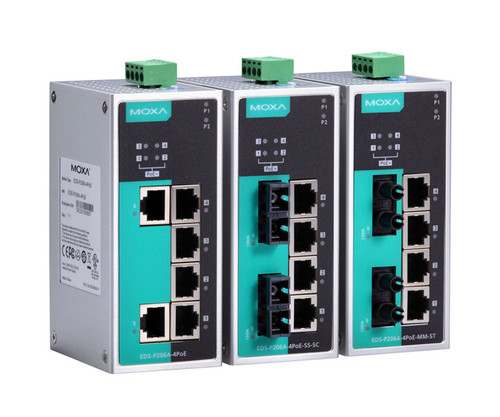

EDS-P206A-4PoE Series Switches
EDS-P206A-4PoE Series Switches
EDS-P206A-4PoE Series Switches
EDS-P206A-4PoE Series Switches
EDS-P206A-4PoE Series Switches

Moxa

EDS-P206A-4PoE Series Switches

Part #: EDS-P206A-4PoE Series In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $625.25
EDS-P206A-4PoE Series
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/EDS-P206A_Series.pdf
hide_matrix:
False
sales_description:
Moxa EDS-P206A-4PoE Series 6-Port Unmanaged PoE+ Industrial Ethernet Switches, IP30 Metal Housing. (Please Specify Model Number.)
parent_sku:
EDS-P206A-4PoE Series
facet_form_factor:
Fixed
facet_management:
Unmanaged
facet_mounting:
DIN-Rail
facet_port_count:
2 to 6
facet_port_speed:
10/100
facet_port_types:
Copper Only
facet_port_types:
Multimode
facet_port_types:
RJ45
facet_port_types:
SC
facet_port_types:
ST
facet_port_types:
Singlemode
facet_power_considerations:
Low Voltage (Typically 12/24/48 VDC)
facet_power_considerations:
PoE Support
facet_temperature_range:
Extended
facet_temperature_range:
Standard
Adding… The item has been added
Commonly Purchased with:
DINSpace BRKT-19DR-5U-CM Rackmount DIN-Rail Adapter
$300.00
MJ8-POE-A Surge Protector
$85.32

Models

Product ID Description Price
EDS-P206A-4PoE-T Moxa Unmanaged PoE+ Ethernet Switch with 4 x 10/100BaseT(X) PoE+ Ports RJ45, 2 x 10/100BaseT(X) Ports RJ45, -40 to 75 deg. C. Up to 30 Watts Per PoE Port. $758.51
EDS-P206A-4PoE-M-SC Moxa Unmanaged PoE+ Ethernet Switch with 1 x 10/100BaseT(X) Ports RJ45, 4 x 10/100BaseT(X) PoE+ Ports RJ45, and 1 x 100BaseFX Multimode Port with SC Connector, 0 to 60 deg. C. Up to 30 Watts Per PoE Port. $785.16
EDS-P206A-4PoE-M-SC-T Moxa Unmanaged PoE+ Ethernet Switch with 1 x 10/100BaseT(X) Ports RJ45, 4 x 10/100BaseT(X) PoE+ Ports RJ45, and 1 x 100BaseFX Multimode Port with SC Connector, -40 to 75 deg. C. Up to 30 Watts Per PoE Port. $905.24
EDS-P206A-4PoE-M-ST Moxa Unmanaged PoE+ Ethernet Switch with 1 x 10/100BaseT(X) Ports RJ45, 4 x 10/100BaseT(X) PoE+ Ports RJ45, and 1 x 100BaseFX Multimode Port with ST Connector, 0 to 60 deg. C. Up to 30 Watts Per PoE Port. $780.07
EDS-P206A-4PoE-M-ST-T Moxa Unmanaged PoE+ Ethernet Switch with 1 x 10/100BaseT(X) Ports RJ45, 4 x 10/100BaseT(X) PoE+ Ports RJ45, and 1 x 100BaseFX Multimode Port with ST Connector, -40 to 75 deg. C. Up to 30 Watts Per PoE Port. $905.24
EDS-P206A-4PoE-MM-SC Moxa Unmanaged PoE+ Ethernet Switch with 4 x 10/100BaseT(X) PoE+ Ports RJ45, and 2 100BaseFX Multimode Port with SC Connector, 0 to 60 deg. C. Up to 30 Watts Per PoE Port. $905.24
EDS-P206A-4PoE-MM-SC-T Moxa Unmanaged PoE+ Ethernet Switch with 4 x 10/100BaseT(X) PoE+ Ports RJ45, and 2 100BaseFX Multimode Port with SC Connector, -40 to 75 deg. C. Up to 30 Watts Per PoE Port. $1,051.97

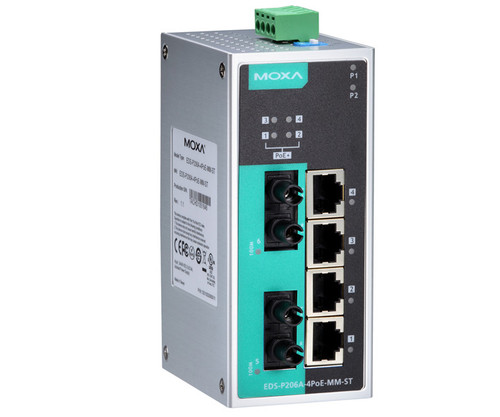

EDS-P206A-4PoE-MM-ST Moxa Unmanaged PoE+ Ethernet Switch with 4 x 10/100BaseT(X) PoE+ Ports RJ45, and 2 100BaseFX Multimode Port with ST Connector, 0 to 60 deg. C. Up to 30 Watts Per PoE Port. $931.89
EDS-P206A-4PoE-MM-ST-T Moxa Unmanaged PoE+ Ethernet Switch with 4 x 10/100BaseT(X) PoE+ Ports RJ45, and 2 x 100BaseFX Multimode Port with ST Connector, -40 to 75 deg. C. Up to 30 Watts Per PoE Port. $1,051.97
EDS-P206A-4PoE-S-SC Moxa Unmanaged PoE+ Ethernet Switch with 1 x 10/100BaseT(X) Ports RJ45, 4 x 10/100BaseT(X) PoE+ Ports RJ45, and 1 x 100BaseFX Singlemode Port with SC Connector, 0 to 60 deg. C. Up to 30 Watts Per PoE Port. $1,065.14
EDS-P206A-4PoE-S-SC-T Moxa Unmanaged PoE+ Ethernet Switch with 1 x 10/100BaseT(X) Ports RJ45, 4 x 10/100BaseT(X) PoE+ Ports RJ45, and 1 x 100BaseFX Singlemode Port with SC Connector, -40 to 75 deg. C. Up to 30 Watts Per PoE Port. $1,185.22
EDS-P206A-4PoE-SS-SC Moxa Unmanaged PoE+ Ethernet Switch with 4 x 10/100BaseT(X) PoE+ Ports RJ45, and 2 x 100BaseFX Singlemode Port with SC Connector, 0 to 60 deg. C. Up to 30 Watts Per PoE Port. $1,331.95
EDS-P206A-4PoE-SS-SC-T Moxa Unmanaged PoE+ Ethernet Switch with 4 x 10/100BaseT(X) PoE+ Ports RJ45, and 2 x 100BaseFX Singlemode Port with SC Connector, -40 to 75 deg. C. Up to 30 Watts Per PoE Port. $1,465.21
EDS-P206A-4PoE Moxa Unmanaged PoE+ Ethernet Switch with 4 x 10/100BaseT(X) PoE+ Ports RJ45, 2 x 10/100BaseT(X) Ports RJ45, 0 to 60 deg. C. Up to 30 Watts Per PoE Port. $625.25

Details

Moxa EDS-P206A-4PoE Series 6-Port Unmanaged PoE+ Industrial Ethernet Switches, IP30 Metal Housing. (Please Specify Model Number.)

The EDS-P206A-4PoE switches are smart, 6-port, unmanaged Ethernet switches supporting PoE (Power-over-Ethernet) on ports 1 to 4. The switches are classified as power source equipment (PSE), and when used in this way, the EDS-P206A-4PoE switches enable centralization of the power supply and provide up to 30 watts of power per port. The switches can be used to power IEEE 802.3at compliant powered devices (PD), eliminating the need for additional wiring, and support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network. In addition, the built-in relay warning function alerts network engineers when power failures or port breaks occur.

Features & Benefits

  • 4 IEEE 802.3at compliant PoE and Ethernet combo ports
  • Up to 30 watts at 24/48 VDC per PoE port
  • Intelligent power consumption detection and classification
  • Redundant dual VDC power inputs
  • 0 to 60 deg. C operating temperature range (standard models)
  • -40 to 75 deg. C operating temperature range (T models)

Documentation

Spec Sheet
