Models
| Product ID | Description | Price | |
|---|---|---|---|
| EDS-G4012-4GC-HV | Moxa Managed Full Gigabit Ethernet Switch, 8 x 10/100/1000Base-TX RJ45 Copper Ports, 4 x 10/100/1000Base-TX or FE/GE SFP Slots, 88 to 300 VDC, 85 to 264 VAC Single Power Input, DIN-Rail Mount, EN 50121-4, IEC-61850-3, IEEE 1613 Rated, -10 to 60 deg C | $2,106.00 | |
| EDS-G4012-4GC-HV-T | Moxa Managed Full Gigabit Ethernet Switch, 8 x 10/100/1000Base-TX RJ45 Copper Ports, 4 x 10/100/1000Base-TX or FE/GE SFP Slots, 88 to 300 VDC, 85 to 264 VAC Single Power Input, DIN-Rail Mount, EN 50121-4, IEC-61850-3, IEEE 1613 Rated, -40 to 75 deg C | $2,239.00 | |
| EDS-G4012-4GC-LV | Moxa Managed Full Gigabit Ethernet Switch, 8 x 10/100/1000Base-TX RJ45 Copper Ports, 4 x 10/100/1000Base-TX or FE/GE SFP Slots, 9.6 to 60 VDC Redundant Power Inputs, DIN-Rail Mount, C1D2, ATEX, IECEx, EN 50121-4, IEC-61850-3, IEEE 1613 Rated, -10 to 60 deg C | $1,997.00 | |
| EDS-G4012-4GC-LV-T | Moxa Managed Full Gigabit Ethernet Switch, 8 x 10/100/1000Base-TX RJ45 Copper Ports, 4 x 10/100/1000Base-TX or FE/GE SFP Slots, 9.6 to 60 VDC Redundant Power Inputs, DIN-Rail Mount, C1D2, ATEX, IECEx, EN 50121-4, IEC-61850-3, IEEE 1613 Rated, -40 to 75 deg C | $2,130.00 | |
Details

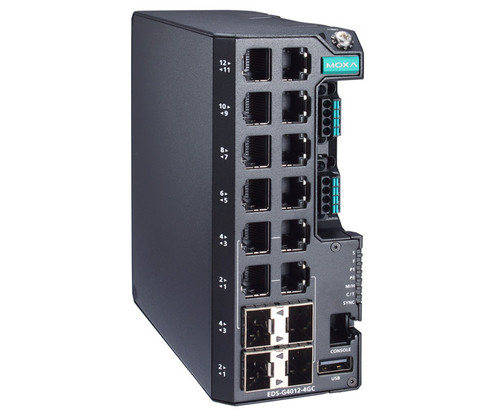

Moxa EDS-G4012 Series Managed 12-Port Full Gigabit Industrial Ethernet Switches. (Please Specify Model and Temperature Rating.)
The EDS-G4012 Series is equipped with 12 Gigabit Ethernet ports and up to four 1 Gbps or 2.5 Gbps fiber-optic ports, making it ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. Gigabit transmission speed increases bandwidth for higher performance and transfers large amounts of triple-play services across a network quickly.
Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliability of your system and improve the availability of your network backbone. The EDS-G4012 Series is designed specifically for demanding applications such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone construction.
The EDS-G4012 Series is compliant with the IEC 62443-4-2 and IEC 62443-4-1 Industrial Cybersecurity certifications, which cover both product security and secure development life-cycle requirements, helping our customers meet the compliance requirements of secure industrial network design.
Features and Benefits
- Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards
- Increased bandwidth capabilities with fiber SFP slots supporting up to 2.5 Gbps
- Turbo Ring and Turbo Chain (recovery time < 50 ms @ 250 switches), and RSTP/STP for network redundancy
- Wide range of power input options for flexible deployment
- Compact and flexible housing design to fit into confined spaces
- Supports MXstudio for easy, visualized industrial network management
