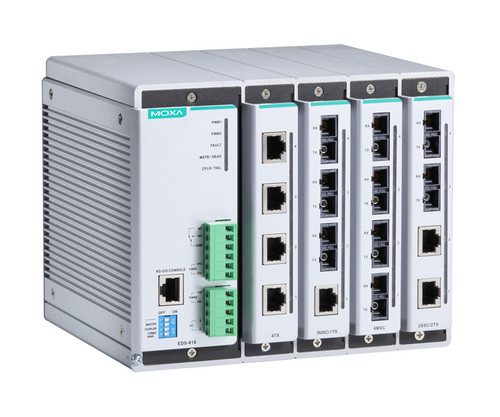

EDS-616-T Modular Switch

Moxa

EDS-616-T Modular Switch

Part #: EDS-616-T In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
$3,392.87
EDS-616-T
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/moxa-eds-616-series.pdf
hide_matrix:
True
in_stock:
False
sales_description:
Moxa Compact Managed Modular Industrial Ethernet Switch, 4x Slots For 4 Port CM-600-XX Media Modules For A Total Of Up To 16 Ports, 24Vdc, Din-Rail Mount, -40 To 75 Deg.C, Layer 2 Firmware. (Media Modules Sold Separately)
parent_sku:
EDS-616-T
facet_certification:
Hazardous Location
facet_certification:
Rail
facet_form_factor:
Modular
facet_management:
Managed - Layer 2
facet_mounting:
DIN-Rail
facet_port_count:
13 to 24
facet_port_speed:
10/100
facet_port_types:
Copper Only
facet_port_types:
Multimode
facet_port_types:
RJ45
facet_port_types:
SC
facet_port_types:
ST
facet_port_types:
Singlemode
facet_power_considerations:
Low Voltage (Typically 12/24/48 VDC)
facet_temperature_range:
Extended
facet_temperature_range:
Standard
Adding… The item has been added
Commonly Purchased with:
DINSpace BRKT-19DR-5U-CM Rackmount DIN-Rail Adapter
$300.00
Moxa EDS-616 Modular Switch
$2,876.90

Details

Moxa Compact Managed Modular Industrial Ethernet Switch, 4x Slots For 4 Port CM-600-XX Media Modules For A Total Of Up To 16 Ports, 24Vdc, Din-Rail Mount, -40 To 75 Deg.C, Layer 2 Firmware. (Media Modules Sold Separately)

The versatile modular design of the compact EDS-616 Series allows users to combine fiber and copper modules to create switch solutions suitable for any automation network. The EDS-616’s modular design lets you install up to 16 Fast Ethernet ports, and the advanced Turbo Ring and Turbo Chain (recovery time < 20 ms) technology, RSTP/STP, and MSTP help increase the reliability and availability of your industrial Ethernet network.

Models with an extended operating temperature range of -40 to 75°C are also available. The EDS-616 Series supports several reliable and intelligent functions, including EtherNet/IP, Modbus TCP, LLDP, DHCP Option 82, SNMP Inform, QoS, IGMP snooping, VLAN, TACACS+, IEEE 802.1X, HTTPS, SSH, SNMPv3, and more, making the Ethernet switches suitable for any harsh industrial environment.

Features and Benefits

  •  Modular design with 4-port copper/fiber combinations
  •  Hot-swappable media modules for continuous operation
  •  Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches)  , and STP/RSTP/MSTP for network redundancy
  •  TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
  •  Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
  •  Supports MXstudio for easy, visualized industrial network management
