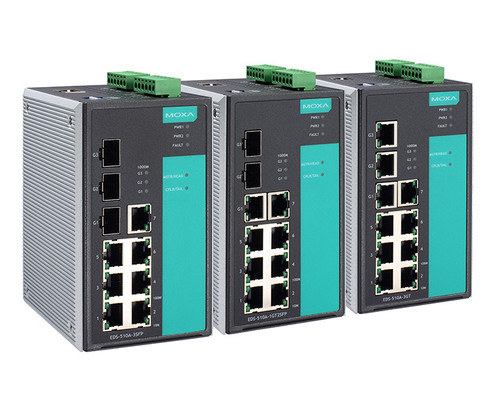

EDS-510A Series Switches
EDS-510A Series Switches
EDS-510A Series Switches
EDS-510A Series Switches

Moxa

EDS-510A Series Switches

Part #: EDS-510A Series In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $2,084.33
EDS-510A Series
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/EDS-510A_Series.pdf
hide_matrix:
False
sales_description:
Moxa EDS-510A Series 10-Port Managed Industrial Ethernet Switch, Class 1, Div. II Rated. (Please Specify Model Number.)
parent_sku:
EDS-510A Series
facet_certification:
Hazardous Location
facet_certification:
Marine
facet_form_factor:
Fixed
facet_management:
Managed - Layer 2
facet_mounting:
DIN-Rail
facet_port_count:
7 to 12
facet_port_speed:
10/100
facet_port_speed:
Partial GB
facet_port_types:
Copper Only
facet_port_types:
Multimode
facet_port_types:
RJ45
facet_port_types:
SFP Fiber
facet_port_types:
Singlemode
facet_power_considerations:
Low Voltage (Typically 12/24/48 VDC)
facet_temperature_range:
Extended
facet_temperature_range:
Standard
Adding… The item has been added
Commonly Purchased with:
DINSpace BRKT-19DR-5U-CM Rackmount DIN-Rail Adapter
$300.00
Moxa NDR-120-24 Power Supply
$129.70

Models

Product ID Description Price
EDS-510A-1GT2SFP-T Moxa 7+3G Managed Industrial Ethernet Switch, 7 x 10/100Base-TX, RJ45, 1 x 10/100/1000Base-TX, RJ45, 2 x Open Gigabit SFP Ports, Class 1, Div. II Rated, -40 to +75 deg. C. (SFP Modules Sold Separately) $2,211.80

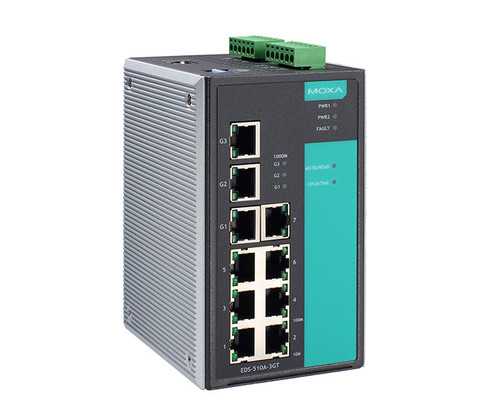

EDS-510A-3GT Moxa 7+3G Managed Industrial Ethernet Switch, 7 x 10/100Base-TX, RJ45, 3 x 10/100/1000Base-TX, RJ45, Class 1, Div. II Rated, 0 to +60 deg. C $2,084.33
EDS-510A-3GT-T Moxa 7+3G Managed Industrial Ethernet Switch, 7 x 10/100Base-TX, RJ45, 3 x 10/100/1000Base-TX, RJ45, Class 1, Div. II Rated, -40 to +75 deg. C. $2,211.80
EDS-510A-3SFP Moxa 7+3G Managed Industrial Ethernet Switch, 7 x 10/100Base-TX, RJ45, 3 x Open Gigabit Fiber SFP Ports, Class 1, Div. II Rated, 0 to +60 deg. C. (SFP Modules Sold Separately) $2,084.33
EDS-510A-3SFP-T Moxa 7+3G Managed Industrial Ethernet Switch, 7 x 10/100Base-TX, RJ45, 3 x Open Gigabit Fiber SFP Ports, Class 1, Div. II Rated, -40 to +75 deg. C. (SFP Modules Sold Separately) $2,211.80
EDS-510A-1GT2SFP Moxa 7+3G Managed Industrial Ethernet Switch, 7 x 10/100Base-TX, RJ45, 1 x 10/100/1000Base-TX, RJ45, 2 x Open Gigabit Fiber SFP Ports, Class 1, Div. II Rated, 0 to +60 deg. C. (SFP Modules Sold Separately) $2,084.33

Details

Moxa EDS-510A Series 10-Port Managed Industrial Ethernet Switch, Class 1, Div. II Rated. (Please Specify Model Number.)

The EDS-510A Gigabit managed redundant Ethernet switches are equipped with up to 3 Gigabit Ethernet ports, making them ideal for building a Gigabit Turbo Ring, but leaving a spare Gigabit port for uplink use. The Ethernet redundancy technologies, Turbo Ring and Turbo Chain (recovery time < 20 ms), RSTP/STP, and MSTP, can increase system reliability and the availability of your network backbone.

The EDS-510A Series is designed especially for communication demanding applications such as process control, shipbuilding, ITS, and DCS systems, which can benefit from a scalable backbone construction.

Features

  • 2 Gigabit Ethernet ports for redundant ring and 1 Gigabit Ethernet port for uplink solution
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
  • Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01

Documentation

Spec Sheet
