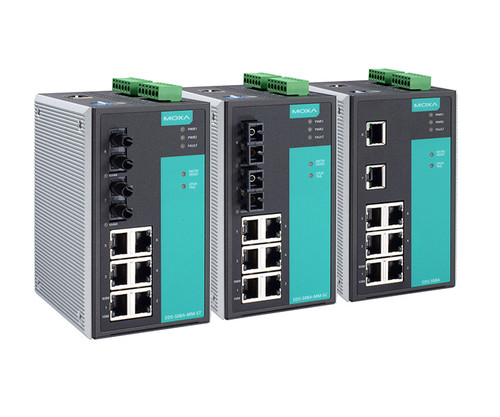

EDS-508A Series Switches
EDS-508A Series Switches
EDS-508A Series Switches
EDS-508A Series Switches

Moxa

EDS-508A Series Switches

Part #: EDS-508A Series In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $1,030.43
EDS-508A Series
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/EDS-505A_508A_516A_Series.pdf
hide_matrix:
False
sales_description:
Moxa EDS-508A Series 8-Port Managed Industrial Ethernet Switches, Class 1, Div. II Rated. (Please Specify Model Number.)
parent_sku:
EDS-508A Series
facet_certification:
Hazardous Location
facet_certification:
Marine
facet_form_factor:
Fixed
facet_management:
Managed - Layer 2
facet_mounting:
DIN-Rail
facet_port_count:
7 to 12
facet_port_speed:
10/100
facet_port_types:
Copper Only
facet_port_types:
Multimode
facet_port_types:
RJ45
facet_port_types:
SC
facet_port_types:
ST
facet_port_types:
Singlemode
facet_power_considerations:
Low Voltage (Typically 12/24/48 VDC)
facet_temperature_range:
Extended
facet_temperature_range:
Standard
Adding… The item has been added
Commonly Purchased with:
Moxa ABC-01 Backup Tool
$130.81
DINSpace BRKT-19DR-5U-CM Rackmount DIN-Rail Adapter
$300.00

Models

Product ID Description Price
EDS-508A-T Moxa Managed Industrial Ethernet Switch, 8 x 10/100Base-TX, RJ45, Class 1, Div. II Rated, -40 to +75 deg. C. $1,125.57
EDS-508A-MM-SC Moxa Managed Industrial Ethernet Switch, 6 x 10/100Base-TX, RJ45, 2 x 100Base-FX, Multimode, SC, Class 1, Div. II Rated, 0 to +60 deg. C. $1,546.40
EDS-508A-MM-SC-T Moxa Managed Industrial Ethernet Switch, 6 x 10/100Base-TX, RJ45, 2 x 100Base-FX, Multimode, SC, Class 1, Div. II Rated, -40 to +75 deg. C. $1,668.69
EDS-508A-SS-SC Moxa Managed Industrial Ethernet Switch, 6 x 10/100Base-TX, RJ45, 2 x 100Base-FX, Singlemode, SC, Class 1, Div. II Rated, 0 to +60 deg. C. $2,211.80
EDS-508A-SS-SC-80 Moxa Managed Industrial Ethernet Switch, 6 x 10/100Base-TX, RJ45, 2 x 100Base-FX, Singlemode (80km), SC, Class 1, Div. II Rated, 0 to +60 deg. C. $4,595.90
EDS-508A-SS-SC-80-T Moxa Managed Industrial Ethernet Switch, 6 x 10/100Base-TX, RJ45, 2 x 100Base-FX, Singlemode (80km), SC, Class 1, Div. II Rated, -40 to +75 deg. C. $4,691.05
EDS-508A Moxa Managed Industrial Ethernet Switch, 8 x 10/100Base-TX, RJ45, Class 1, Div. II Rated, 0 to +60 deg. C. $1,030.43
EDS-508A-SS-SC-T Moxa Managed Industrial Ethernet Switch, 6 x 10/100Base-TX, RJ45, 2 x 100Base-FX, Singlemode, SC, Class 1, Div. II Rated, -40 to +75 deg. C. $2,293.22
EDS-508A-MM-ST Moxa Managed Industrial Ethernet Switch, 6 x 10/100Base-TX, RJ45, 2 x 100Base-FX, Multimode, ST, Class 1, Div. II Rated, 0 to +60 deg. C. $1,546.40
EDS-508A-MM-ST-T Moxa Managed Industrial Ethernet Switch, 6 x 10/100Base-TX, RJ45, 2 x 100Base-FX, Multimode, ST, Class 1, Div. II Rated, -40 to +75 deg. C. $1,668.69

Details

Moxa EDS-508A Series 8-Port Managed Industrial Ethernet Switches, Class 1, Div. II Rated. (Please Specify Model Number.)

The EDS-508A standalone 8-port managed Ethernet switches, with their advanced Turbo Ring and Turbo Chain technologies (recovery time < 20 ms), RSTP/STP, and MSTP, increase the reliability and availability of your industrial Ethernet network. Models with a wide operating temperature range of -40 to 75°C are also available, and the switches support advanced management and security features, making the EDS-508A switches suitable for any harsh industrial environment.

Features

  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
  • Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
  • Supports MXstudio for easy, visualized industrial network management

Documentation

Spec Sheet
