Models
| Product ID | Description | Price | |
|---|---|---|---|
| EDS-408A-1M2S-SC | Moxa Entry-Level Managed Industrial Ethernet Switch, 5 x 10/100Base-TX, RJ45, 1 x 100Base-FX, Multimode, SC, 2 x 100Base-FX, Singlemode, SC, 0 to +60 deg. C. | $1,583.38 | |
| EDS-408A-1M2S-SC-T | Cisco PWR-RGD-AC-DC-H High Voltage AC or DC Power Source for Hazardous Locations 1, 2 for IE-5000/IE-4010 Series Switch, 150W, 85-264VAC or 88-300VDC Nominal Input. (Power Supply For IE-9300/IE-5000/IE-4010 Switch.) | $1,715.38 | |
| EDS-408A-2M1S-SC | Cisco PWR-RGD-LOW-DC-H Low Voltage DC Power Source, for Hazardous Locations 1, 2 for IE-5000/IE-4010 Series Switch, 150W, 24-60VDC /10A Rated Nominal Input. (Power Supply For IE-9300/IE-5000/IE-4010 Switch.) | $1,451.39 | |
| EDS-408A-2M1S-SC-T | Moxa Entry-Level Managed Industrial Ethernet Switch, 5 x 10/100Base-TX, RJ45, 2 x 100Base-FX, Multimode, SC, 1 x 100Base-FX, Singlemode, SC, -40 to +75 deg. C. | $1,715.38 | |
| EDS-408A-3M-SC | Moxa Entry-Level Managed Industrial Ethernet Switch, 5 x 10/100Base-TX, RJ45, 3 x 100Base-FX, Multimode, SC, 0 to +60 deg. C. | $1,187.39 | |
| EDS-408A-3M-SC-T | Moxa Entry-Level Managed Industrial Ethernet Switch, 5 x 10/100Base-TX, RJ45, 3 x 100Base-FX, Multimode, SC, -40 to +75 deg. C. | $1,319.39 | |
| EDS-408A-3M-ST | Moxa Entry-Level Managed Industrial Ethernet Switch, 5 x 10/100Base-TX, RJ45, 3 x 100Base-FX, Multimode, ST, 0 to +60 deg. C. | $1,187.39 | |
| EDS-408A-3M-ST-T | Moxa Entry-Level Managed Industrial Ethernet Switch, 5 x 10/100Base-TX, RJ45, 3 x 100Base-FX, Multimode, ST, -40 to +75 deg. C. | $1,319.39 | |
| EDS-408A-3S-SC | Moxa Entry-Level Managed Industrial Ethernet Switch, 5 x 10/100Base-TX, RJ45, 3 x 100Base-FX, Singlemode, SC, 0 to +60 deg. C. | $1,715.38 | |
| EDS-408A-3S-SC-T | Moxa Entry-Level Managed Industrial Ethernet Switch, 5 x 10/100Base-TX, RJ45, 3 x 100Base-FX, Singlemode, SC, -40 to +75 deg. C. | $1,847.68 | |
Details

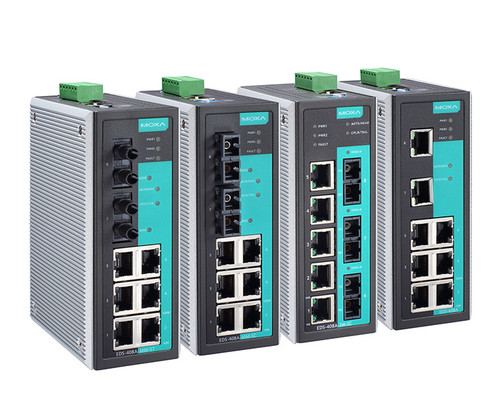

Moxa EDS-408A 3 Fiber Series 8-Port Managed Industrial Ethernet Switches with 3 Fiber Ports. (Please Specify Model Number.)
Moxa's EDS-408A 3 Fiber series are 8-port managed Ethernet switches with three optical fiber ports in a slim form factor design. The unique 3 fiber port feature makes the EDS-408A 3 Fiber series ideal for industrial applications, such as widely dispersed wind farm networks that need more long-haul transmission capability in a standalone Ethernet switch. Fiber transmission offers the benefit of greater EMI protection to prevent unstable network transmissions and data loss. The EDS-408A 3 Fiber series is designed for completely fan-less operation in a wide temperature range from -40 to 75 deg. C. In addition, the switches support a variety of useful management functions, such as Turbo Ring, ring coupling, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay.
Features & Benefits
- Command Line Interface (CLI) for quickly configuring major managed functions
- IPv6 Ready logo awarded (IPv6 Logo Committee certified)
- DHCP Option 82 for IP address assignment with different policies
- Support EtherNet/IP* and Modbus/TCP protocols for device management and monitoring
- Compatible with EtherNet/IP and PROFINET protocols for transparent data transmission
- Turbo Ring and Turbo Chain (recovery time < 20 ms), and RSTP/STP for network redundancy
- IGMP snooping and GMRP for filtering multicast traffic
- Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
- QoS (IEEE 802.1p and TOS/DiffServ) to increase determinism
- RMON for efficient network monitoring and proactive capability
- SNMPv1/v2c/v3 for different levels of network management security
- Bandwidth management to prevent unpredictable network status
- Port mirroring for online debugging
Documentation
Related Items
BRKT-19DR-5U-CM Rackmount DIN-Rail Adapter

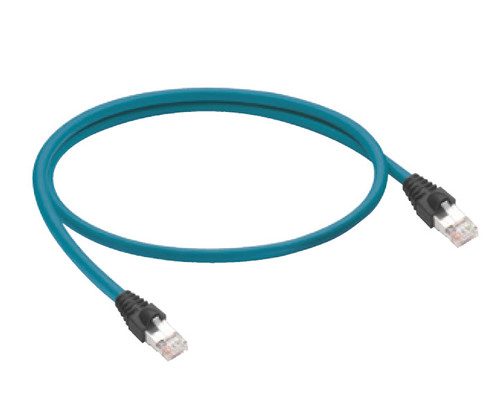

RJ45/M12 CAT 5e Patch Cable - Unshielded
