EDS-4014 Series Switches

Moxa

EDS-4014 Series Switches

Part #: EDS-4014 Series In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $1,670.00
EDS-4014 Series
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/moxa-eds-4014-switches.pdf
pdf_2_name:
User Manual
pdf_2_url:
pdfs/moxa-eds-4000-g4000-series-manual.pdf
hide_matrix:
False
sales_description:
Moxa EDS-4014 Series Managed 14-Port FE/GE/2.5GE Industrial Ethernet Switches. (Please Specify Model and Temperature Rating.)
parent_sku:
EDS-4014 Series
facet_certification:
Hazardous Location
facet_certification:
Marine
facet_certification:
Rail
facet_certification:
Substation
facet_form_factor:
Fixed
facet_management:
Managed - Layer 2
facet_mounting:
DIN-Rail
facet_port_count:
13 to 24
facet_port_speed:
2.5 or 10GB+
facet_port_speed:
Partial GB
facet_port_types:
Multimode
facet_port_types:
RJ45
facet_port_types:
SFP Fiber
facet_port_types:
Singlemode
facet_power_considerations:
High Voltage (Typically 110-240 VAC or 110-250 VDC)
facet_power_considerations:
Low Voltage (Typically 12/24/48 VDC)
facet_temperature_range:
Extended
facet_temperature_range:
Standard
Adding… The item has been added
Commonly Purchased with:

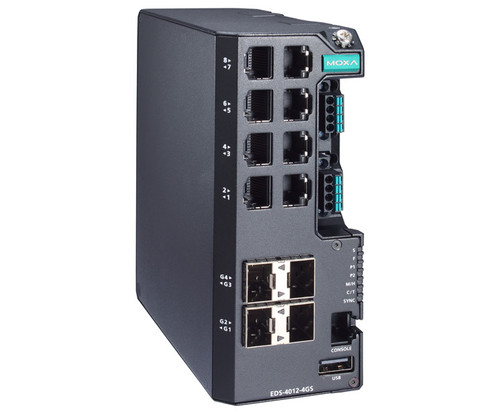

Moxa EDS-4012 Series Switches
$1,307.00
See Options
Moxa NDR-120-24 Power Supply
$129.70

Models

Product ID Description Price
EDS-4014-4GS-2QGS-HV Moxa Managed Industrial Ethernet Switch, 8 x 10/100Base-TX RJ45 Copper Ports, 4 x FE/GE SFP Slots, 2 x GE/2.5GE SFP Slots, 88 to 300 VDC, 85 to 264 VAC Single Power Input, DIN-Rail Mount, EN 50121-4, IEC-61850-3, IEEE 1613 Rated, -10 to 60 deg C $1,779.00
EDS-4014-4GS-2QGS-HV-T Moxa Managed Industrial Ethernet Switch, 8 x 10/100Base-TX RJ45 Copper Ports, 4 x FE/GE SFP Slots, 2 x GE/2.5GE SFP Slots, 88 to 300 VDC, 85 to 264 VAC Single Power Input, DIN-Rail Mount, EN 50121-4, IEC-61850-3, IEEE 1613 Rated, -40 to 75 deg C $1,912.00
EDS-4014-4GS-2QGS-LV Moxa Managed Industrial Ethernet Switch, 8 x 10/100Base-TX RJ45 Copper Ports, 4 x FE/GE SFP Slots, 2 x GE/2.5GE SFP Slots, 9.6 to 60 VDC Redundant Power Inputs, DIN-Rail Mount, C1D2, ATEX, IECEx, EN 50121-4, IEC-61850-3, IEEE 1613 Rated, -10 to 60 deg C $1,670.00
EDS-4014-4GS-2QGS-LV-T Moxa Managed Industrial Ethernet Switch, 8 x 10/100Base-TX RJ45 Copper Ports, 4 x FE/GE SFP Slots, 2 x GE/2.5GE SFP Slots, 9.6 to 60 VDC Redundant Power Inputs, DIN-Rail Mount, C1D2, ATEX, IECEx, EN 50121-4, IEC-61850-3, IEEE 1613 Rated, -40 to 75 deg C $1,803.00

Details

Moxa EDS-4014 Series Managed 14-Port FE/GE/2.5GE Industrial Ethernet Switches. (Please Specify Model and Temperature Rating.)

The EDS-4014 Series is a range of 14-port managed Fast Ethernet switches with four 1 Gbps and two 2.5 Gbps fiber-optic ports.

Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliability of your system and improve the availability of your network backbone. The EDS-4014 Series is designed specifically for demanding applications such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone.

The EDS-4014 Series is compliant with the IEC 62443-4-2 and IEC 62443-4-1 Industrial Cybersecurity certifications, which cover both product security and secure development life-cycle requirements, helping our customers meet the compliance requirements of secure industrial network design.

Features and Benefits

  • Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards
  • Increased bandwidth capabilities with fiber SFP slots supporting up to 2.5 Gbps
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches)[1], and RSTP/STP for network redundancy
  • Wide range of power input options for flexible deployment
  • Compact and flexible housing design to fit into confined spaces
  • Supports MXstudio for easy, visualized industrial network management

Documentation

Spec Sheet User Manual
