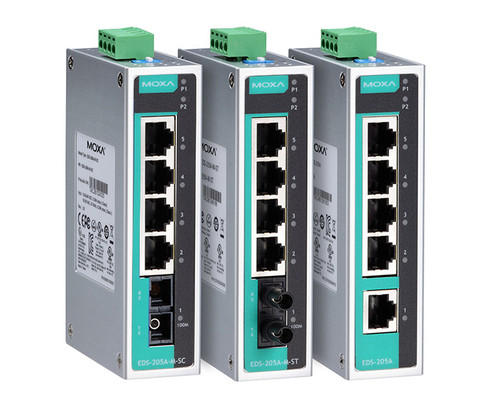

EDS-205A Series Switches
EDS-205A Series Switches
EDS-205A Series Switches
EDS-205A Series Switches
EDS-205A Series Switches

Moxa

EDS-205A Series Switches

Part #: EDS-205A Series In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $132.06
EDS-205A Series
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/EDS-205A_208A_Series.pdf
hide_matrix:
False
sales_description:
Moxa EDS-205A Series 5-Port Unmanaged Ethernet Switch, IP30 Metal Housing, Class 1, Div. II Rated. (Please Specify Model Number)
parent_sku:
EDS-205A Series
facet_certification:
Hazardous Location
facet_form_factor:
Fixed
facet_management:
Unmanaged
facet_mounting:
DIN-Rail
facet_port_count:
2 to 6
facet_port_speed:
10/100
facet_port_types:
Copper Only
facet_port_types:
Multimode
facet_port_types:
RJ45
facet_port_types:
SC
facet_port_types:
ST
facet_port_types:
Singlemode
facet_power_considerations:
Low Voltage (Typically 12/24/48 VDC)
facet_temperature_range:
Extended
facet_temperature_range:
Standard
Adding… The item has been added
Commonly Purchased with:
DINSpace BRKT-19DR-5U-CM Rackmount DIN-Rail Adapter
$300.00
Moxa HDR-60-24 Power Supply
$71.23

Models

Product ID Description Price
EDS-205A-M-SC-T Moxa Unmanaged Industrial Ethernet Switch, 4 x 10/100Base-TX RJ45 Ports, 1 x 100Base-FX Multimode Fiber SC Port, IP30 Metal Housing, Class 1, Div. II Rated, -40 to +75 deg. C. $313.52
EDS-205A-M-ST-T Moxa Unmanaged Industrial Ethernet Switch, 4 x 10/100Base-TX RJ45 Ports, 1 x 100Base-FX Multimode Fiber ST Port, IP30 Metal Housing, Class 1, Div. II Rated, -40 to +75 deg. C. $313.52
EDS-205A-S-SC-T Moxa Unmanaged Industrial Ethernet Switch, 4 x 10/100Base-TX RJ45 Ports, 1 x 100Base-FX Single-mode Fiber SC Port, IP30 Metal Housing, Class 1, Div. II Rated, -40 to +75 deg. C. $500.38

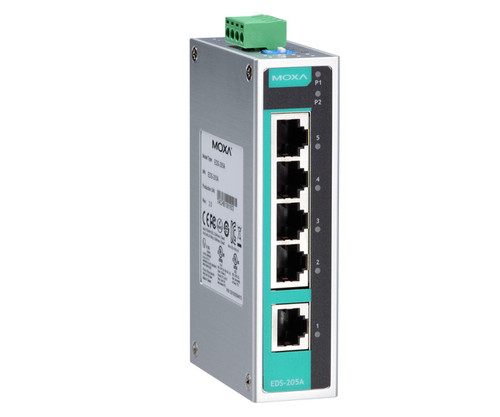

EDS-205A Moxa Unmanaged Industrial Ethernet Switch, 5 x 10/100Base-TX, RJ45, IP30 Metal Housing, Class 1, Div. II Rated, -10 to +60 deg. C. $132.06

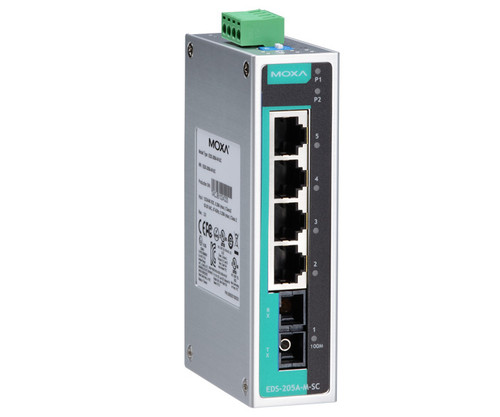

EDS-205A-M-SC Moxa Unmanaged Industrial Ethernet Switch, 4 x 10/100Base-TX RJ45 Ports, 1 x 100Base-FX Multimode Fiber SC Port, IP30 Metal Housing, Class 1, Div. II Rated, 0 to +60 deg. C. $273.70
EDS-205A-T Moxa Unmanaged Industrial Ethernet Switch, 5 x 10/100Base-TX, RJ45, IP30 Metal Housing, Class 1, Div. II Rated, -40 to +75 deg. C. $212.01

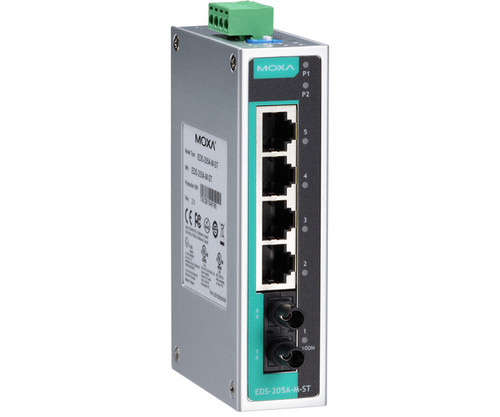

EDS-205A-M-ST Moxa Unmanaged Industrial Ethernet Switch, 4 x 10/100Base-TX RJ45 Ports, 1 x 100Base-FX Multimode Fiber ST Port, IP30 Metal Housing, Class 1, Div. II Rated, -10 to +60 deg. C. $273.70
EDS-205A-S-SC Moxa Unmanaged Industrial Ethernet Switch, 4 x 10/100Base-TX RJ45 Ports, 1 x 100Base-FX Single-mode Fiber SC Port, IP30 Metal Housing, Class 1, Div. II Rated, 0 to +60 deg. C. $393.48

Details

Moxa EDS-205A Series 5-Port Unmanaged Ethernet Switch, IP30 Metal Housing, Class 1, Div. II Rated. (Please Specify Model Number)

The EDS-205A series are 5-port industrial Ethernet switches that support IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X auto-sensing. The EDS-205A switches provide 12/24/48 VDC (9.6 to 60 VDC), 18 to 30 VAC redundant power inputs that can be connected simultaneously to live AC/DC power sources. These switches have been designed for harsh industrial environments, such as in maritime (DNV/GL) or hazardous locations (Class I Div. 2/ATEX) that comply with FCC, TUV, UL, and CE standards.

All models are subjected to a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. In addition, the EDS-205A switches have DIP switches for enabling or disabling broadcast storm protection, providing another level of flexibility for industrial applications.

Features

  • 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi/single-mode, SC or ST connector)
  • Redundant dual 12/24/48 VDC, 18 to 30 VAC power inputs
  • IP30 aluminum housing
  • Rugged hardware design well suited for hazardous locations (Class I Div. 2 /ATEX) and maritime environments (DNV/GL)
  • -10 to 60 deg. C operating temperature range (standard models)
  • -40 to 75 deg. C operating temperature range (T models)
  • Version 3.0 and later includes QoS and Multicast Filtering functionality

Documentation

Spec Sheet
