EDS-2008-EL Series Switches
EDS-2008-EL Series Switches
EDS-2008-EL Series Switches

Moxa

EDS-2008-EL Series Switches

Part #: EDS-2008-EL Series In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $144.75
EDS-2008-EL Series
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/moxa-eds-2008-el-series.pdf
hide_matrix:
False
sales_description:
Moxa Compact Unmanaged Industrial Ethernet Switch, 8-Ports, IP40 Metal Housing, DIN-Rail Mount, 9.6-60 VDC Powered. (Please Specify Model.)
parent_sku:
EDS-2008-EL Series
facet_form_factor:
Fixed
facet_management:
Unmanaged
facet_mounting:
DIN-Rail
facet_port_count:
7 to 12
facet_port_speed:
10/100
facet_port_types:
Copper Only
facet_port_types:
Multimode
facet_port_types:
RJ45
facet_port_types:
SC
facet_port_types:
ST
facet_power_considerations:
Low Voltage (Typically 12/24/48 VDC)
facet_temperature_range:
Extended
facet_temperature_range:
Standard
Adding… The item has been added
Commonly Purchased with:
Moxa HDR-60-24 Power Supply
$71.23

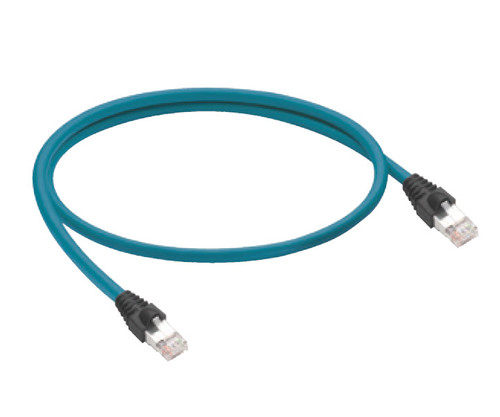

Hirschmann RJ45/M12 CAT 5e Patch Cable - Unshielded
$27.11
See Options

Models

Product ID Description Price

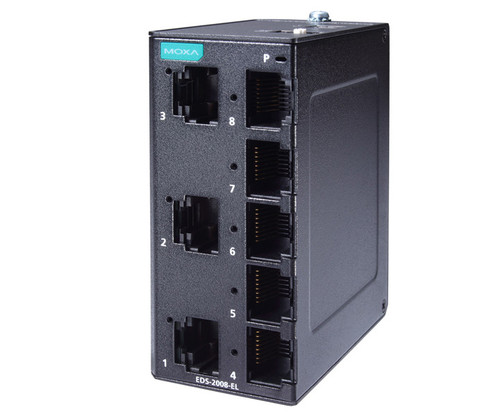

EDS-2008-EL Moxa Compact Unmanaged Industrial Ethernet Switch, 8 x 10/100Base-TX RJ45 Ports, IP40 Metal Housing, DIN-Rail Mount, 9.6-60 VDC Powered, -10 to 60 deg. C. $144.75

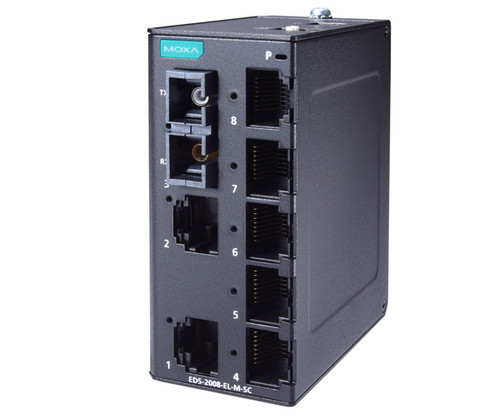

EDS-2008-EL-M-SC Moxa Compact Unmanaged Industrial Ethernet Switch, 7 x 10/100Base-TX RJ45 Ports, 1 x 100Base-FX Multimode SC Fiber Port, IP40 Metal Housing, DIN-Rail Mount, 9.6-60 VDC Powered, -10 to 60 deg. C. $232.75
EDS-2008-EL-M-SC-T Moxa Compact Unmanaged Industrial Ethernet Switch, 7 x 10/100Base-TX RJ45 Ports, 1 x 100Base-FX Multimode SC Fiber Port, IP40 Metal Housing, DIN-Rail Mount, 9.6-60 VDC Powered, -40 to 75 deg. C. $289.50
EDS-2008-EL-M-ST Moxa Compact Unmanaged Industrial Ethernet Switch, 7 x 10/100Base-TX RJ45 Ports, 1 x 100Base-FX Multimode ST Fiber Port, IP40 Metal Housing, DIN-Rail Mount, 9.6-60 VDC Powered, -10 to 60 deg. C. $232.75
EDS-2008-EL-M-ST-T Moxa Compact Unmanaged Industrial Ethernet Switch, 7 x 10/100Base-TX RJ45 Ports, 1 x 100Base-FX Multimode ST Fiber Port, IP40 Metal Housing, DIN-Rail Mount, 9.6-60 VDC Powered, -40 to 75 deg. C. $289.50
EDS-2008-EL-T Moxa Compact Unmanaged Industrial Ethernet Switch, 8 x 10/100Base-TX RJ45 Ports, IP40 Metal Housing, DIN-Rail Mount, 9.6-60 VDC Powered, -40 to 75 deg. C. $200.25

Details

Moxa Compact Unmanaged Industrial Ethernet Switch, 8-Ports, IP40 Metal Housing, DIN-Rail Mount, 9.6-60 VDC Powered. (Please Specify Model.)

The EDS-2008-EL series of industrial Ethernet switches have up to eight 10/100M copper ports, which are ideal for applications that require simple industrial Ethernet connections. To provide greater versatility for use with applications from different industries, the EDS-2008-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-2008-EL Series has a rugged metal housing to ensure suitability for use in industrial environments and fiber connections (Multi-mode SC or ST) can also be selected.

The EDS-2008-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size, the EDS-2008-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2008-EL Series has a standard operating temperature range of -10 to 60 deg. C with wide-temperature (-40 to 75 deg. C) models also available.

Features & Benefits

  • 10/100BaseT(X) (RJ45 connector)
  • Compact size for easy installation
  • QoS supported to process critical data in heavy traffic
  • IP40-rated metal housing

Documentation

Spec Sheet
