AWB3000 Access Point/Client

HMS

AWB3000 Access Point/Client

Part #: AWB3000 In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
$676.00
AWB3000
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/HMS-anybus-wireless-bridge-ii.pdf
hide_matrix:
True
in_stock:
True
sales_description:
HMS Anybus Wireless Bridge II WLAN/Bluetooth 2.4/5.0 GHz Access Point/Client, 2.4 GHz, 2.4 GHz MIMO and 5 GHZ Antennas (Internal), Range Up To 400 Meters, M12 Ethernet & Power Connections (See 023040 Accessory Pack - Sold Separately), Surface Or DIN-
sales_description_2:
Rail Mount (DIN-Rail Kit Sold Separately), 9-30 VDC Powered, -40 to +65 deg C
parent_sku:
AWB3000
facet_application:
Indoor
facet_certification:
Hazardous Location
facet_mounting:
DIN-Rail
facet_mounting:
Surface
facet_power_considerations:
Low Voltage (Typically 12/24/48 VDC)
facet_technology:
2.4 GHz
facet_technology:
5 GHz
facet_type:
Access Point
facet_type:
Client
facet_type:
Point-to-Multipoint
facet_type:
Point-to-Point
Adding… The item has been added
Commonly Purchased with:
HMS AWB2030 Anybus Bolt RJ45 PoE (Black)
$608.00
HMS AWB2031 Wireless Bolt RJ45 PoE (White)
$643.00

Details

HMS Anybus Wireless Bridge II WLAN/Bluetooth 2.4/5.0 GHz Access Point/Client, 2.4 GHz, 2.4 GHz MIMO and 5 GHZ Antennas (Internal), Range Up To 400 Meters, M12 Ethernet & Power Connections (See 023040 Accessory Pack - Sold Separately), Surface Or DIN-Rail Mount (DIN-Rail Kit Sold Separately), 9-30 VDC Powered, -40 to +65 deg C

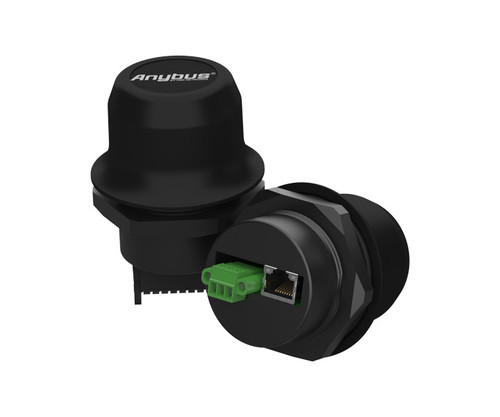

Anybus Wireless Bridge II - Ethernet
Anybus® Wireless Bridge enables you create an industrial wireless connection in an industrial Ethernet network. This second generation of the proven and trusted Wireless Bridge can communicate via both Bluetooth and Wireless LAN and is ideal for communication through hazardous areas or hard-to-reach locations where cables are not desirable. It provides an effective wireless range of up to 400 meters.

BRIDGING TCP/IP ETHERNET
The Wireless Bridge makes it possible to operate leading TCP/IP based industrial Ethernet networks, such as BACnet/IP, PROFINET, EtherNet/IP and Modbus TCP, over Bluetooth and Wireless LAN 2.4 / 5 GHz.

POINT-TO-POINT OR MULTIPOINT
Point-to-point or multipoint Anybus Wireless Bridge is often used as an Ethernet cable replacement (point-to-point communication). But it can also be used as an access point for up to seven Wireless LAN/Bluetooth clients.

Features & Benefits

  • Use with point-to-point wireless Industrial Ethernet installations through hazardous or hard-to-reach locations
  • Use as an Access Point for up to seven clients
  • Suitable for AGV’s (Automatic Guided Vehicle)
  • Fast Roaming (IEEE 802.11r), High link speed (IEEE 802.11n), Robustness (three internal antennas, including MIMO)
  • Eliminates the need for expensive or maintenance-heavy cabling
  • Bridges TCP/IP Ethernet and protocols such as: BACnet/IP, EtherNet/IP, Modbus-TCP and PROFINET
  • Max range of up to 400 meters
  • Full compatibility with Anybus Wireless Bolt — a wireless product for machine mounting
  • Easy setup via push button or web interface
  • Advanced configuration with AT commands
  • Compatible with PROFIsafe requirements
  • Rugged IP65 rated industrial design
  • Security features for a secure industrial operation
  • Three built in antennas for higher performance and better robustness
  • Operation with Wirelesss LAN, Bluetooth classic and Bluetooth Low Energy.

Documentation

Spec Sheet
