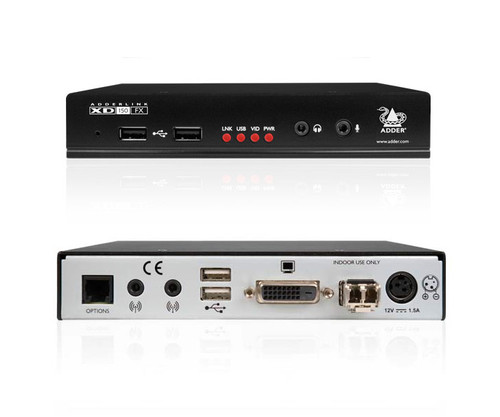

AdderLink XD150 DVI Extender (SM)
AdderLink XD150 DVI Extender (SM)
AdderLink XD150 DVI Extender (SM)

Adder

AdderLink XD150 DVI Extender (SM)

Part #: XD150FX-SM-US In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
$2,112.00
XD150FX-SM-US
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/AdderLink-XD150FX.pdf
pdf_2_name:
User Manual
pdf_2_url:
pdfs/MAN-XD150FX-ADDER.pdf
hide_matrix:
True
in_stock:
False
sales_description:
AdderLink XD150 Singlemode Dual Link DVI (2048 x 1536) Extender Pair With USB 2.0, Extension Up to 4 Kilometers (Singlemode SFPs Included).
parent_sku:
XD150FX-SM-US
facet_displays_supported:
1 Monitor
facet_kvm_extension_type:
Fiber
facet_mounting:
Desktop
facet_mounting:
Rackmount
facet_type:
KVM Extender
facet_video_type:
DVI
Adding… The item has been added
Commonly Purchased with:
Adder RMK8 Rackmount Bracket
$248.00
Adder XD150-US DVI Extender Pair
$1,326.00

Details

AdderLink XD150 Singlemode Dual Link DVI (2048 x 1536) Extender Pair With USB 2.0, Extension Up to 4 Kilometers (Singlemode SFPs Included).

ADDERLink XD150FX
DVI video extender with USB2.0 over a single duplex fiber cable at up to 4km

ADDERLink XD150FX is a high performance KVM (Keyboard, Video, Mouse) extender that enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user work station whilst maintaining the original user desktop experience.

Features & Benefits

  • Resolutions up to 2560 x 1600 @60Hz
  • 4km extension distance for a singlemode fiber. 400m extension for OM4 fiber
  • USB2.0 Hi-speed for mass storage devices
  • USB2.0 (Low, Full, High speed) for keyboard, mouse, tablet and touch screen
  • Bidirectional analog audio (Line in/out with microphone & headphone support)
  • RS232 with RTS/CTS flow control

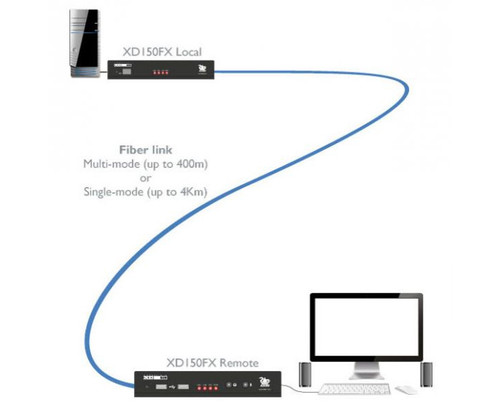

Example Application

XD150 DVI Extender Example

Documentation

Spec Sheet User Manual
