2R18 Fiber Optic Receiver

Weed Instrument

2R18 Fiber Optic Receiver

Part #: 2R18 In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
$2,075.00
2R18
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/2R18ds.pdf
hide_matrix:
True
in_stock:
False
sales_description:
Weed Instrument Fiber Optic Receiver - Analog Data Link, 4-20mA to MM/SM(1300nm) Fiber Optic Receiver
parent_sku:
2R18
facet_features:
Analog I/O
facet_form_factor:
Modular
facet_port_types:
Multimode
facet_port_types:
Singlemode
facet_temperature_range:
Extended
facet_temperature_range:
Standard
facet_type:
I/O to Fiber
Adding… The item has been added
Commonly Purchased with:
Weed Instrument 2A56 Power Supply
$666.00

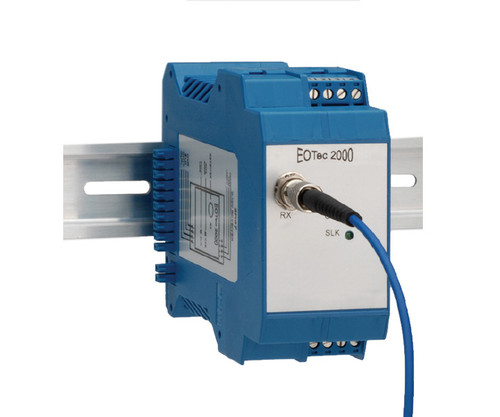

Weed Instrument 2T18 Fiber Optic Transmitter
$1,683.00

Details

Weed Instrument Fiber Optic Receiver - Analog Data Link, 4-20mA to MM/SM(1300nm) Fiber Optic Receiver

EOTec 2000 Analog Data Links

EOTec 2000 fiber optic Analog Data Links provide reliable EMI/RFI and lightning immune transmissions of 4-20mA and 0-10VDC signals over a single fiber optic cable. Each transceiver has an optical port which is available in multi-mode and single mode at 850nm and 1300nm wavelengths using ST or SMA connectors. LED indicators are provided for power, input over range, input under range and signal lock.

The Analog Data Link transmitters and receivers will accept power from an external 24VDC source connected directly to a pluggable screw terminal or from a 120/240VAC power source when using the EOTec 2A56 Universal Power Supply.

Applications for Weed fiber optic Analog Data Links include transmission of analog signals over long distances and signal transmission in lightning prone locations and hazardous areas.

Specifications

  • Description: Fiber Optic Receiver
  • Analog Signal: 4-20mA
  • Wavelength: 1300nm
  • Optical Mode: MM/SM
  • Fiber Connector: ST

Additional Information

Documentation

Spec Sheet
