2M55 Multiplexer

Weed Instrument

2M55 Multiplexer

Part #: 2M55 In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
$1,643.00
2M55
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/2M55is.pdf
hide_matrix:
True
in_stock:
True
sales_description:
Weed Instrument Multiplexer Base Unit, MM, ST, 1300nm, 13dB
parent_sku:
2M55
facet_features:
Analog I/O
facet_features:
RS-232/422/485
facet_form_factor:
Modular
facet_port_types:
Multimode
facet_temperature_range:
Extended
facet_temperature_range:
Standard
facet_type:
Serial to Fiber
Adding… The item has been added
Commonly Purchased with:

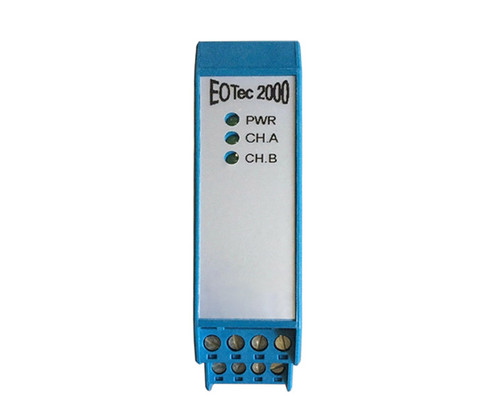

Weed Instrument 2M11 Input Module
$1,393.00
Weed Instrument 2M21 Output Module
$1,393.00

Details

Weed Instrument Multiplexer Base Unit, MM, ST, 1300nm, 13dB

EOTec 2000 Multiplexers

EOTec 2000 Multiplexers can send up to eight channels of bi-directional electrical information over a pair of fiber optic cable. Input/Output module selections include 4-20mA, 0-10VDC, contact closure and RS-232/485.

The base unit connects directly to the fiber optic cable and provides a visual indication of the fiber link status. Each base unit has a duplex optical port configured for use with 850nm 1300nm wavelengths, multi-mode or single mode optical fiber. An integrated backplane allows for communications from the base unit to the input/output modules with no external inter-modular connection. No programming is required.

Power is supplied either through the standard EOTec 2000 power supplies or from an external 24VDC power supply.

Applications for Weed fiber optic Mulitplexers include remote analog data acquisition, Continuous Emissions Monitoring Systems at coal fired power plants, data transmission on wind turbines and signal transmission in lightning prone locations and hazardous areas.

Specifications

  • Description: Multiplexer, Base Unit, 1300nm
  • Optical Dynamic Range: 13dB @ 62.5um
  • Optical Mode: Multi-mode
  • Optical Connector: ST
  • Fiber Connector: 50 - 100µm

Additional Information

Documentation

Spec Sheet
