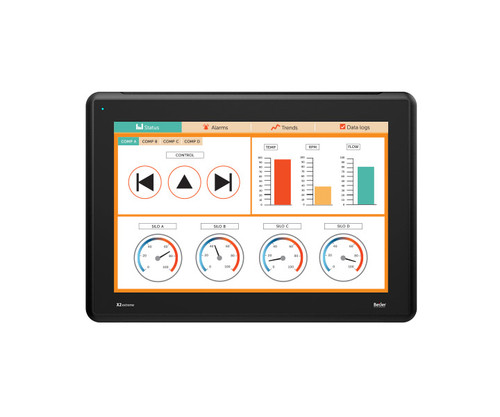

X2 extreme Series HMI

Beijer Electronics

X2 extreme Series HMI

Part #: X2 extreme Series HMI In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $2,620.00
X2 extreme Series HMI
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/Beijer-Electronics-X2-HMI.pdf
hide_matrix:
False
sales_description:
Beijer Electronics X2 extreme Series rugged, panel-mount, graphic touch aluminum operator terminal HMI. LED backlit TFT-LCD color display, resistive touchscreen, available in 7, 12 and 15 inches variants. -30 to +70 C operating temperature. IP66, NEM
sales_description_2:
A-4x/12, UL Type 4x/12. Includes iX runtime. CE, UL/cUL Class I Div 2, ATEX (Zone 2, 22), IECEx (Ex nA IIC Gc) certifications, DNV, GL, LR, KR, CCS and ABS marine certifications. (Please Specify Model.)
parent_sku:
X2 extreme Series HMI
facet_certification:
Hazardous Location
facet_certification:
Marine
facet_certification:
Nema 12
facet_certification:
Nema 4X
facet_features:
ARM
facet_features:
Ethernet
facet_mounting:
Direct Mount
facet_temperature_range:
Extended
facet_temperature_range:
Standard
facet_type:
Operator Interface (HMI)
Adding… The item has been added
Commonly Purchased with:

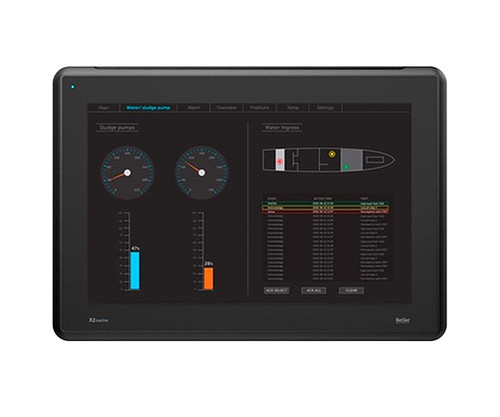

Beijer Electronics X2 marine Series HMI
$1,630.00
See Options

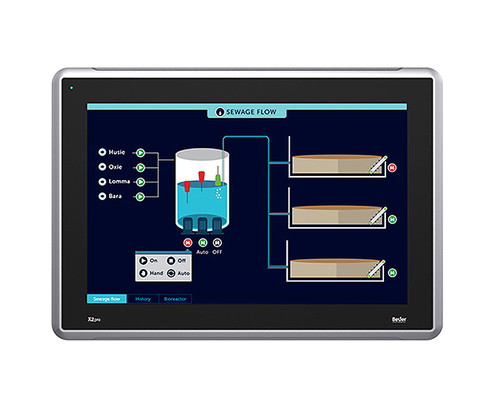

Beijer Electronics X2 pro Series HMI
$803.00
See Options

Models

Product ID Description Price
X2 extreme 7 Beijer Electronics 7" rugged, panel-mount, graphic touch aluminum operator terminal. 800x480 pixels, LED backlit TFT-LCD color display, 500 cd/m2 brightness, resistive touchscreen, i.MX6DualLite, Dual Cortex-A9 800MHz 512k BL2 cache CPU, 1 GB RAM, 2 GB SSD (eMMC) flash (1.5 GB free for application), 1x Ethernet, 1x 9-pin galvanically isolated physical serial port ((1) RS232, (1) RS422/RS485/C AN), 2x USB 2.0, 1x SD/SCHC card slot, 24 VDC power supply (18-32 VDC), Includes Web browser, PDF viewer and Windows Media Player support. -30 to +70 C operating temperature. IP66, NEMA-4x/12, UL Type 4x/12. Includes iX runtime. CE, UL/cUL Class I Div 2, ATEX (Zone 2, 22), IECEx (Ex nA IIC Gc) certifications, DNV, GL, LR, KR, CCS and ABS marine certifications. Includes iX Runtime. WEC2013 Professional. Black, Beijer-branded. (Article Number: 640013905) $2,620.00
X2 extreme 7 - 12v Beijer Electronics 7" rugged, panel-mount, graphic touch aluminum operator terminal. 800x480 pixels, LED backlit TFT-LCD color display, 500 cd/m2 brightness, resistive touchscreen; i.MX6DualLite, Dual Cortex-A9 800MHz 512k BL2 cache CPU, 1 GB RAM, 2 GB SSD (eMMC) flash (1.5 GB free for application), 1x Ethernet, 1x 9-pin galvanically isolated physical serial port ((1) RS232, (1) RS422/RS485/CAN), 2x USB 2.0, 1x SD/SCHC card slot, 12 VDC power supply (9-16 VDC), Includes Web browser, PDF viewer and Windows Media Player support. -30 to +70 C operating temperature. IP66, NEMA-4x/12, UL Type 4x/12. Includes iX runtime. CE, UL/cUL Class I Div 2, ATEX (Zone 2, 22), IECEx (Ex nA IIC Gc) certifications, DNV, GL, LR, KR, CCS and ABS marine certifications. Includes iX Runtime. WEC2013 Professional. Black, Beijer-branded. (Article Number: 640014005) $2,680.00
X2 extreme 7 HP Beijer Electronics 7" rugged, panel-mount, graphic touch aluminum operator terminal. 800x480 pixels, LED backlit TFT-LCD color display, 1000 cd/m2 brightness, resistive touchscreen; i.MX6Quad, Quad ARM Cortex-A9 ,1.0 GHz CPU; 2 GB RAM, 2 GB SSD (eMMC) flash (1.5 GB free for application), 2x Ethernet, 2x 9-pin galvanically isolated physical serial port (RS232, RS422 / RS485 / CAN), RS484 / CAN), 2x USB 2.0, 1x SD/SCHC card slot, 24 VDC power supply (18-32 VDC), Includes Web browser, PDF viewer and Windows Media Player support. -30 to +70 C operating temperature. IP66, NEMA-4x/12, UL Type 4x/12. Includes iX runtime. CE, UL/cUL Class I Div 2, ATEX (Zone 2, 22), IECEx (Ex nA IIC Gc) certifications, DNV, GL, LR, KR, CCS and ABS marine certifications. Includes iX Runtime. WEC2013 Professional. Black, Beijer-branded front. (Article Number: 640014105) $2,990.00
X2 extreme 12 Beijer Electronics 12.1" rugged, panel-mount, graphic touch aluminum operator terminal. 1280x800 pixels, LED backlit TFT-LCD color display, 500 cd/m2 brightness, resistive touchscreen, i.MX6DualLite, Dual Cortex-A9 800MHz 512k BL2 cache CPU, 1 GB RAM, 2 GB SSD (eMMC) flash (1.5 GB free for application), 1x Ethernet, 1x 9-pin galvanically isolated physical serial port ((1) RS232, (1) RS422 / RS485 / CAN), 2x USB 2.0, 1x SD/SCHC card slot, 24 VDC power supply (18-32 VDC), Includes Web browser, PDF viewer and Windows Media Player support. -30 to +70 C operating temperature. IP66, NEMA-4x/12, UL Type 4x/12. Includes iX runtime. CE, UL/cUL Class I Div 2, ATEX (Zone 2, 22), IECEx (Ex nA IIC Gc) certifications, DNV, GL, LR, KR, CCS and ABS marine certifications. Includes iX Runtime. WEC2013 Professional. Black, Beijer-branded. (Article Number: 640014305) $4,120.00
X2 extreme 12 HP Beijer Electronics 12.1" rugged, panel-mount, graphic touch aluminum operator terminal. 1280x800 pixels, LED backlit TFT-LCD color display, 1000 cd/m2 brightness, resistive touchscreen; i.MX6Quad, Quad ARM Cortex-A9 ,1.0 GHz CPU; 2 GB RAM, 2 GB SSD (eMMC) flash (1.5 GB free for application), 2x Ethernet, 2x 9-pin galvanically isolated physical serial port (RS232, RS422 / RS485 / CAN, RS485 / CAN), 2x USB 2.0, 1x SD/SCHC card slot, 24 VDC power supply (18-32 VDC), Includes Web browser, PDF viewer and Windows Media Player support. -30 to +70 C operating temperature. IP66, NEMA-4x/12, UL Type 4x/12. Includes iX runtime. CE, UL/cUL Class I Div 2, ATEX (Zone 2, 22), IECEx (Ex nA IIC Gc) certifications, DNV, GL, LR, KR, CCS and ABS marine certifications. Black, Beijer-branded front. (Article Number: 640014405) $4,660.00
X2 extreme 15 Beijer Electronics 15.4" rugged, panel-mount, graphic touch aluminum operator terminal. 1280x800 pixels, LED backlit TFT-LCD color display, 450 cd/m2 brightness, resistive touchscreen, i.MX6DualLite, Dual Cortex-A9 800MHz 512k BL2 cache CPU, 1 GB RAM, 2 GB SSD (eMMC) flash (1.5 GB free for application), 1x Ethernet, 1x 9-pin galvanically isolated physical serial port ((1) RS232, (1) RS422 / RS485 / CAN), 2x USB 2.0, 1x SD/SCHC card slot, 24 VDC power supply (18-32 VDC), Includes Web browser, PDF viewer and Windows Media Player support. -30 to +70 C operating temperature. IP66, NEMA-4x/12, UL Type 4x/12. Includes iX runtime. CE, UL/cUL Class I Div 2, ATEX (Zone 2, 22), IECEx (Ex nA IIC Gc) certifications, DNV, GL, LR, KR, CCS and ABS marine certifications. Includes iX Runtime. WEC2013 Professional. Black, Beijer-branded front. (Article Number: 640014605) $5,010.00
X2 extreme 15 HP Beijer Electronics 15.4" rugged, panel-mount, graphic touch aluminum operator terminal. 1280x800 pixels, LED backlit TFT-LCD color display, 1000 cd/m2 brightness, resistive touchscreen; i.MX6Quad, Quad ARM Cortex-A9 ,1.0 GHz CPU; 2 GB RAM, 2 GB SSD (eMMC) flash (1.5 GB free for application), 2x Ethernet, 1x 9-pin galvanically isolated physical serial port (RS232, RS422 / RS485 / CAN), RS484 / CAN), 2x USB 2.0, 1x SD/SCHC card slot, 24 VDC power supply (18-32 VDC), Includes Web browser, PDF viewer and Windows Media Player support. -30 to +70 C operating temperature. IP66, NEMA-4x/12, UL Type 4x/12 outdoor. Includes iX runtime. CE, UL/cUL Class I Div 2, ATEX (Zone 2, 22), IECEx (Ex nA IIC Gc) certifications, DNV, GL, LR, KR, CCS and ABS marine certifications. Black, Beijer-branded front. (Article Number: 640014705) $5,610.00

Details

Beijer Electronics X2 extreme Series rugged, panel-mount, graphic touch aluminum operator terminal HMI. LED backlit TFT-LCD color display, resistive touchscreen, available in 7, 12 and 15 inches variants. -30 to +70 C operating temperature. IP66, NEMA-4x/12, UL Type 4x/12. Includes iX runtime. CE, UL/cUL Class I Div 2, ATEX (Zone 2, 22), IECEx (Ex nA IIC Gc) certifications, DNV, GL, LR, KR, CCS and ABS marine certifications. (Please Specify Model.)

X2 extreme Rugged HMIs for tough environments
X2 extreme panels are certified by all major classification societies. Designed to perform in rugged environments and in hazardous areas where gases, vapors and dust are present. Extended environmental capabilities include operating temperatures from -30 deg. C to +70 deg. C, high vibrations and highpressure wash-downs.

X2 extreme panels are available in 7, 12 and 15 inches, all in 3 versions: Standard versions, high-performance versions and fully sealed highperformance versions. The high-performance and fully sealed highperformance versions both offer high brightness display and optional integrated CODESYS PLC functionality.
