V2201 Series Computers
V2201 Series Computers
V2201 Series Computers

Moxa

V2201 Series Computers

Part #: V2201 Series In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
from $1,307.69
V2201 Series
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/moxa-v2201-series-computers.pdf
hide_matrix:
False
sales_description:
Moxa V2201 Series Intel® Atom® E3800 industrial DIN-rail computer with 2 mini PCIe expansion slots for wireless.
parent_sku:
V2201 Series
facet_features:
Cellular
facet_features:
Ethernet
facet_features:
I/O
facet_features:
Wi-Fi
facet_features:
X86
facet_mounting:
Wall
facet_protocol_support:
MQTT
facet_protocol_support:
Node Red
facet_temperature_range:
Extended
facet_temperature_range:
Standard
facet_type:
IoT Gateway / Edge Computer
Adding… The item has been added
Commonly Purchased with:
Moxa ANT-WDB-ARM-02 Antenna
$20.54

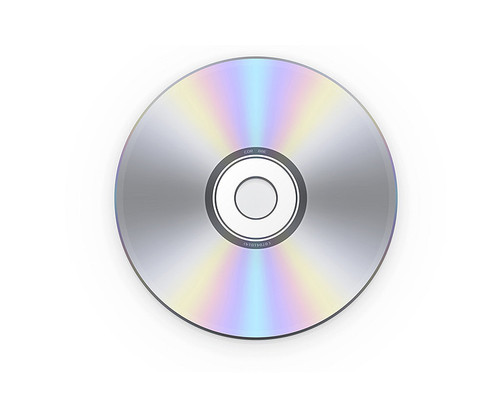

Moxa Debian 9 Software
$61.00

Models

Product ID Description Price
V2201-E1-T Moxa V2201 Series Industrial Computer, Intel Atom E3815 Processor, HDMI Video Output, 2 x 10/100/1000Base-TX Ports, 2 x RS-232/422/485 Serial Ports, 1 x USB 3.0 Port, 2 x USB 2.0 Ports, 4 x Digital Inputs / 4 x Digital Outputs, 1 x SD 3.0 Socket, 1 x uSIM Socket, 2 x mini-PCIe Sockets, 9-36 VDC Powered, Wall-Mount Kit Included, -40 to +85 C, EN 60950-1,UL 508, UL 60950-1 Rated. $1,307.69
V2201-E1-T-LX Moxa V2201 Series Industrial Computer With Linux Debian x Pre-Installed, Intel Atom E3815 Processor, HDMI Video Output, 2 x 10/100/1000Base-TX Ports, 2 x RS-232/422/485 Serial Ports, 1 x USB 3.0 Port, 2 x USB 2.0 Ports, 4 x Digital Inputs / 4 x Digital Outputs, 1 x SD 3.0 Socket, 1 x uSIM Socket, 2 x mini-PCIe Sockets, 9-36 VDC Powered, Wall-Mount Kit Included, -40 to +85 C, EN 60950-1,UL 508, UL 60950-1 Rated. $1,384.32
V2201-E1-T-W7E Moxa V2201 Series Industrial Computer With Windows Embedded Standard 7 Pre-Installed, Intel Atom E3815 Processor, HDMI Video Output, 2 x 10/100/1000Base-TX Ports, 2 x RS-232/422/485 Serial Ports, 1 x USB 3.0 Port, 2 x USB 2.0 Ports, 4 x Digital Inputs / 4 x Digital Outputs, 1 x SD 3.0 Socket, 1 x uSIM Socket, 2 x mini-PCIe Sockets, 9-36 VDC Powered, Wall-Mount Kit Included, -40 to +85 C, EN 60950-1,UL 508, UL 60950-1 Rated. $1,518.94
V2201-E1-W-T Moxa V2201 Series Industrial Computer With Wireless Connections (2 Cellular, 2 WiFi, 1 GPS) (Wireless Modules & Antennas Sold Separately), Intel Atom E3815 Processor, HDMI Video Output, 2 x 10/100/1000Base-TX Ports, 2 x RS-232/422/485 Serial Ports, 1 x USB 3.0 Port, 2 x USB 2.0 Ports, 4 x Digital Inputs / 4 x Digital Outputs, 1 x SD 3.0 Socket, 1 x uSIM Socket, 2 x mini-PCIe Sockets, 9-36 VDC Powered, Wall-Mount Kit Included, -40 to +85 C, EN 60950-1,UL 508, UL 60950-1 Rated. $1,384.32
V2201-E2-T Moxa V2201 Series Industrial Computer, Intel Atom E3826 Processor, HDMI Video Output, 2 x 10/100/1000Base-TX Ports, 2 x RS-232/422/485 Serial Ports, 1 x USB 3.0 Port, 2 x USB 2.0 Ports, 4 x Digital Inputs / 4 x Digital Outputs, 1 x SD 3.0 Socket, 1 x uSIM Socket, 2 x mini-PCIe Sockets, 9-36 VDC Powered, Wall-Mount Kit Included, -40 to +85 C, EN 60950-1,UL 508, UL 60950-1 Rated. $1,365.67
V2201-E2-W-T Moxa V2201 Series Industrial Computer With Wireless Connections (2 Cellular, 2 WiFi, 1 GPS) (Wireless Modules & Antennas Sold Separately), Intel Atom E3826 Processor, HDMI Video Output, 2 x 10/100/1000Base-TX Ports, 2 x RS-232/422/485 Serial Ports, 1 x USB 3.0 Port, 2 x USB 2.0 Ports, 4 x Digital Inputs / 4 x Digital Outputs, 1 x SD 3.0 Socket, 1 x uSIM Socket, 2 x mini-PCIe Sockets, 9-36 VDC Powered, Wall-Mount Kit Included, -40 to +85 C, EN 60950-1,UL 508, UL 60950-1 Rated. $1,442.31
V2201-E4-T Moxa V2201 Series Industrial Computer, Intel Atom E3845 Processor, HDMI Video Output, 2 x 10/100/1000Base-TX Ports, 2 x RS-232/422/485 Serial Ports, 1 x USB 3.0 Port, 2 x USB 2.0 Ports, 4 x Digital Inputs / 4 x Digital Outputs, 1 x SD 3.0 Socket, 1 x uSIM Socket, 2 x mini-PCIe Sockets, 9-36 VDC Powered, Wall-Mount Kit Included, -40 to +70 C, EN 60950-1,UL 508, UL 60950-1 Rated. $1,423.08
V2201-E4-W-T Moxa V2201 Series Industrial Computer With Wireless Connections (2 Cellular, 2 WiFi, 1 GPS) (Wireless Modules & Antennas Sold Separately), Intel Atom E3845 Processor, HDMI Video Output, 2 x 10/100/1000Base-TX Ports, 2 x RS-232/422/485 Serial Ports, 1 x USB 3.0 Port, 2 x USB 2.0 Ports, 4 x Digital Inputs,1 x SD 3.0 Socket, 1 x uSIM Socket, 2 x mini-PCIe Sockets, 9-36 VDC Powered, Wall-Mount Kit Included, -40 to +85 C, EN 60950-1,UL 508, UL 60950-1 Rated. $1,499.71
V2201-E4-W-T-LX Moxa V2201 Series Industrial Computer With Linux Debian x Pre-Installed and Wireless Connections (2 Cellular, 2 WiFi, 1 GPS) (Wireless Modules & Antennas Sold Separately), Intel Atom E3845 Processor, HDMI Video Output, 2 x 10/100/1000Base-TX Ports, 2 x RS-232/422/485 Serial Ports, 1 x USB 3.0 Port, 2 x USB 2.0 Ports, 4 x Digital Inputs / 4 x Digital Outputs, 16 GB SD Card Installed, 1 x uSIM Socket, 2 x mini-PCIe Sockets, 9-36 VDC Powered, DIN-Mount Kit Included, -40 to +70 C, EN 60950-1,UL 508, UL 60950-1 Rated. $1,835.37

Details

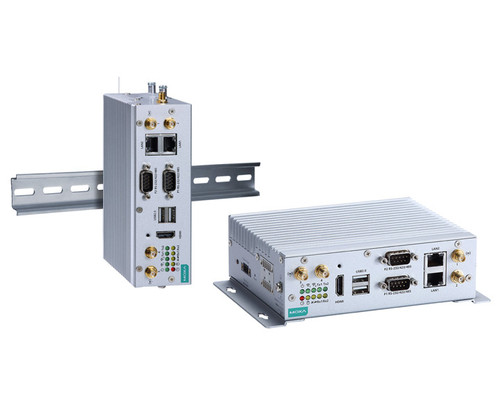

Moxa V2201 Series Intel® Atom® E3800 industrial DIN-rail computer with 2 mini PCIe expansion slots for wireless.

The V2201 Series ultra-compact x86 embedded computer is based on the Intel Atom„¢ E3800 Series processor, features the most reliable I/O design to maximize connectivity, and supports dual wireless modules, making it suitable for a diverse range of communication applications. The computer's thermal design ensures reliable system operation in temperatures ranging from -40 to 85 deg. C (-40 to 70 deg. C with a special purpose Moxa wireless module installed). The V2201 Series supports €œMoxa Hardware Monitoring for device I/O status monitoring and alerts, system temperature monitoring and alerts, and system power management. Monitoring system status closely makes it easier to recover from errors and provides the most reliable platform for your applications.

Applications

  • Remote Terminal Unit (RTU)
  • Data acquisition
  • M2M communication (smart gateway)
  • Digital signage
  • Factory automation
  • In-vehicle monitor/data logger (transportation)
  • Programmable router
  • Energy usage optimization
  • Predictive maintenance
  • Asset management

Features & Benefits

  • Intel Atom E3800 Series processor with three performance options
  • Dual mini-PCIe sockets for wireless modules, supports Wi-Fi, 3G, LTE, and GPS (Wireless Module Sold Separately)
  • -40 to 85°C system operating temperature (-40 to 70°C with LTE module installed) (Wireless Module Sold Separately)
  • Variety of interfaces: 2 serial ports, 2 Ethernet LAN ports, 4 DIs, 4 DOs, SD, USB, HDMI, wireless
  • EN 61000-6-2 and EN 61000-6-4 certification (Passed with AC/DC adapter) ; meets EMC standard for heavy industry
  • Up to 5 Grms anti-vibration protection and 100 g/11 ms anti-shock protection
  • Ready-to-run Debian 8, Windows Embedded Standard 7, and Windows 10 Embedded IoT Enterprise 2016 LTSB platforms
  • Moxa Proactive Monitoring utility for system hardware health monitoring
  • Moxa Smart Recovery utility to recover system from boot failure (W7E only)
