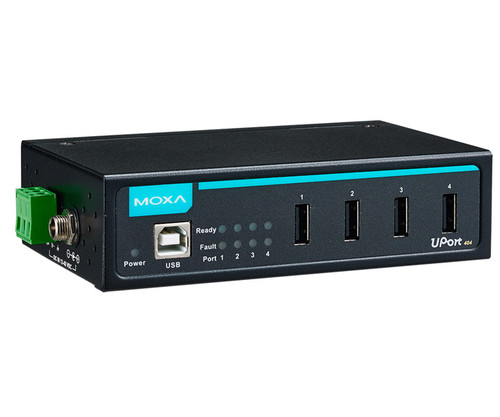

UPort 404-T USB Hub w/o Adapter

Moxa 4-Port Industrial USB Hub, 12-40 VDC (Does Not Include Power Adapter, Receives Power From USB Connection), -40 to +85 deg. C. (Mounting Hardware Sold Separately).

The UPort 404 and UPort 407 are industrial-grade USB 2.0 hubs that expand 1 USB port into 4 and 7 USB ports, respectively. The hubs are designed to provide true USB 2.0 Hi-Speed 480 Mbps data transmission through each port, even for heavy-load applications. USB-IF certified and fully compliant with the USB Plug & Play specification, the UPort 404 and UPort 407 provide a full 500 mA of power per port to ensure that your USB devices will function properly. Support for 12-40 VDC power also makes these hubs ideal for mobile applications.

USB-IF Certification
The UPort 404 and UPort 407 industrial-grade USB 2.0 hubs have passed USB-IF (USB Implementers Forum) certification. USB-IF verifies a number of strict electrical requirements for high-speed hubs designed for the USB 2.0 specification. This means that the UPort 404 and UPort 407 support up to 480 Mbps USB 2.0 transmission, are fully compliant with interoperability requirements, have enough power for devices to function, and provide a successful transition back to high-speed operation from suspend mode.

ESD Level 4 Protection
Electrostatic discharge (ESD) can be as severe as having more than one thousand volts of ESD with a high rise time (dv/dt) break through the junction layer of protective devices. To guard against serious damage, Moxa's UPort 404/407 USB hubs provide ESD level 4 (contact 8 KV, air 15 KV) protection.

Features & Benefits

• Hi-Speed USB 2.0 for up to 480 Mbps USB transmission
• USB-IF certification
• Dual power inputs (power jack and terminal block)
• 15 KV ESD Level 4 protection for all USB ports
• Rugged metal housing
• DIN-Rail and wall mountable
• Comprehensive diagnostic LEDs
• Choose bus power or external power (UPort 404)
