UPort 204 USB Hub

Moxa

UPort 204 USB Hub

Part #: UPort 204 In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
$210.72
UPort 204
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/UPort_204_207.pdf
hide_matrix:
True
in_stock:
False
sales_description:
Moxa 4 Port entry-level USB Hub, w/ adapter.
parent_sku:
UPort 204
facet_interface:
USB
facet_temperature_range:
Standard
facet_type:
USB Hubs
Adding… The item has been added
Commonly Purchased with:

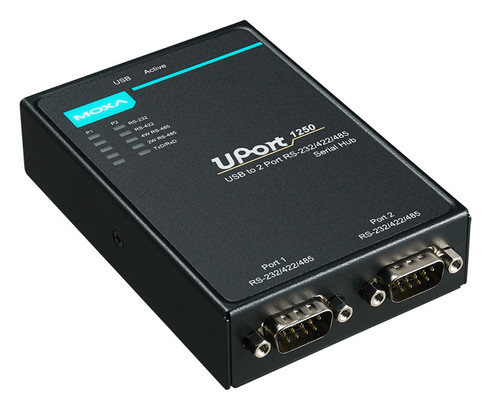

Moxa UPort 1250 Serial Hub
$196.88
Moxa UPort 1410 Serial Hub
$244.50

Details

Moxa 4 Port entry-level USB Hub, w/ adapter.

The UPort™ 204 and UPort™ 207 are entry-level USB 2.0 hubs that expand 1 USB port into 4 and 7 USB ports, respectively. The hubs are designed to provide true USB 2.0 Hi-Speed 480 Mbps data transmission through each port, even for heavy-load applications. The UPort™ 204/207 have received USB-IF Hi-Speed certification, which is an indication that both products are reliable, high quality USB 2.0 hubs. In addition, the hubs are fully compliant with the USB Plug & Play spec and provide a full 500 mA of power per port, ensuring that your USB devices will function properly. The UPort™ 204/207 hubs' support of 12-40 VDC power makes them ideal for mobile applications. Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices.

USB-IF Certification
The UPort™ 204/207 USB 2.0 entry-level USB hubs have passed USB-IF (USB Implementers Forum) certification. USB-IF verifies a number of strict electrical requirements for the Hi-Speed USB operation of USB hubs designed to the USB 2.0 specification. This means that the UPort™ 204/207 support Hi-Speed USB 2.0 for up to 480 Mbps USB transmission, which is fully compliant with interoperability requirements, is enough power for devices to function, and provides for a successful transition back to high-speed operation from the suspend state.

ESD Level 4 Protection
Electrostatic discharge (ESD) could be as severe as having more than one thousand volts of ESD with a high rise time (dv/dt) break through the junction layer of protective devices. In order to avoid serious damage, Moxa's UPort™ 204/207 USB hubs provide ESD level 4 (contact 8 KV, air 15 KV) protection, which increases the quality and value of the user's end-product.

Features & Benefits

  • Hi-Speed USB 2.0 for up to 480 Mbps USB transmission
  • USB-IF Certification
  • Compatible with USB 1.1 devices
  • 15 KV ESD Level 4 protection for all USB ports
  • Wall mountable
  • Comprehensive diagnostic LEDs
  • Full 500 mA of power per port
  • Choose bus power or external power (UPort™ 204 only)
