Models
| Product ID | Description | Price | |
|---|---|---|---|
| UC-3101-T-US-LX | Moxa UC-3100 Series RISC-based LTE Cat.1 Computer for US (AT&T), 1 GHz CPU, 1GB RAM, 4GB eMMC, 2 Ethernet, 1 Serial Port, 1 USB port, -30 to 70 deg. C, C1D2, IECEx, ATEX Approvals. | $664.63 | |
| UC-3111-T-US-LX | Moxa UC-3100 Series RISC-based LTE Cat.1 Computer for US (Verizon & AT&T), Wi-Fi a/b/g/n, 1 GHz ARMv7 Cortex-A8, 1 GB RAM, 8GB eMMC, 2 Ethernet, 2 Serial Ports, 1 SD Slot, 1 USB Port, -30 to 70 deg. C, C1D2, IECEx, ATEX Approvals. Requires 4FF SIM Not Included. | $796.91 | |
| UC-3121-T-US-LX | Moxa UC-3100 Series RISC-based LTE Cat.1 Computer for US (AT&T & Verizon), Wi-Fi a/b/g/n, 1 GHz CPU, 1GB RAM, 4GB eMMC, 2 Ethernet, 1 Serial Port, 1 CAN Port, 1 USB Port, -30 to 70 deg. C, C1D2, IECEx, ATEX Approvals. | $796.91 | |
Details
Moxa UC-3100 Series RISC-based LTE Cat.1 Computer for US, 1 GHz CPU, 1GB RAM, 4GB eMMC, 2 Ethernet, 1 or 2 Serial Ports, 1 USB port, -30 to 70 deg. C, C1D2, IECEx, ATEX Approvals. (Please Specify Model.)
Moxa's UC-3100 Series computers can be used as edge-field smart gateways for data pre-processing and transmission, as well as for other embedded data acquisition applications. The UC-3100 Series includes three models, each supporting different wireless options and protocols.
The UC-3100's advanced heat dissipation design makes it suitable for use in temperatures ranging from -40 to 70 deg. C. In fact, the Wi-Fi and LTE connections can be used simultaneously in both cold and hot environments, allowing you to maximize your data pre-processing" and data transmission" capability in most harsh environments. In addition, TPM v2.0 uses a hardware chip to boost data security, making it highly unlikely that hackers will be able to steal your data, either remotely or locally.
Solution requires proficiency in Linux Debian configuration and programming. For users wanting to leverage a graphical user interface, INS recommends ordering ThingsPro Gateway software package to enable a number of Intelligent Industrial IoT Gateway features.
The UC-3100 is more than just a hardware solution. In order to offer a better user experience with a Moxa RISC computer, the UC-3100 supports the following software features, allowing you to use the most suitable configuration based on your particular application.
- High VPN Performance: greater than 70 Mbps with AES-256 encryption Ethernet throughput
- Robust file system to prevent the system from being bricked due to a firmware upgrade interruption
- Cybersecurity auto-config system compliant with IEC 62443 lv.2
- Real COM mode to provide a control interface with Moxa NPort products
In addition, Moxa provides 10 years of Linux OS support from Moxa customer support engineers. With a new version of the Debian repository released on average every 2 to 3 years, long-term Linux OS support helps you create a reliable solution that will be supported now and long into the future.
Features & Specifications
- ARMv7 Cortex-A8 1000 MHz processor RISC computer solution brochure
- Integrated Wi-Fi 802.11a/b/g/n and LTE Cat.1 for the US, EU, and AUS regions
- Supports TPM v2.0 (optional)
- Industrial CAN 2.0 A/B protocol supported
- -30 to 70 deg. C system operating temperature Wireless Arm Linux IIoT gateway applications
- Meets the EN 61000-6-2 and EN 61000-6-4 standards for industrial EMC applications
- Linux Debian
- Supports Linux real-time OS mode
- Robust Root File System to prevent the system from being bricked due to a firmware update failure
Documentation
Related Items

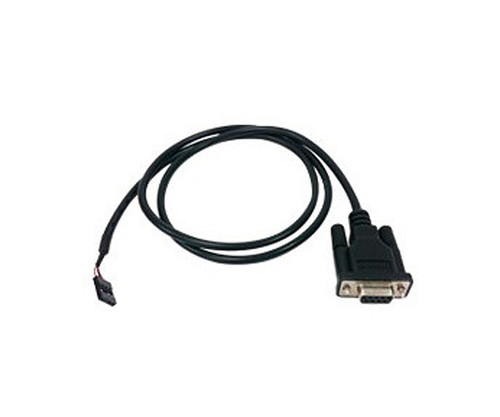

CBL-F9DPF1x4-BK-100 Serial Console Cable
