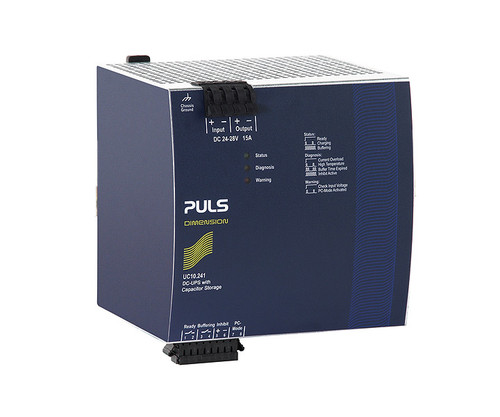

UBC10.241 DIN-Rail UPS

PULS

UBC10.241 DIN-Rail UPS

Part #: UBC10.241 In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details
$688.50
UBC10.241
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/ubc10e241.pdf
hide_matrix:
True
in_stock:
True
sales_description:

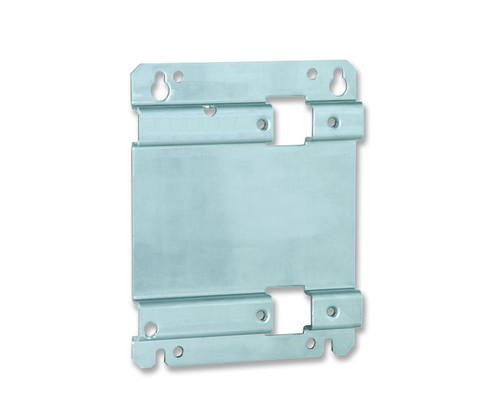

Puls Dimension DC-UPS with Internal 5Ah Battery, 24VDC/10A Output, 24VDC Input, Signaling Terminals. (Mounting Bracket #ZM1.UBC10 Sold Separately)
parent_sku:
UBC10.241
facet_input_voltage:
100-240VAC
facet_mounting:
DIN-Rail
facet_output_voltage:
24VDC
facet_type:
UPS
Adding… The item has been added
Commonly Purchased with:
DINSpace BRKT-19DR-4U Rackmount DIN-Rail Adapter
$236.00
PULS CP10.241 Power Supply
$333.00

Details

Puls Dimension DC-UPS with Internal 5Ah Battery, 24VDC/10A Output, 24VDC Input, Signaling Terminals. (Mounting Bracket #ZM1.UBC10 Sold Separately)

This uninterruptible power supply (UPS) controller UBC10.241 with integrated battery is a compact addition to standard 24V power supplies to bridge power failures or voltage fluctuations. Expensive downtimes, long restart cycles and loss of data can be avoided.

The DC-UPS includes a professional battery management system which charges and monitors the battery to achieve the longest battery service life as well as many diagnostic functions that ensure a reliable operation of the entire system.

A unique feature of the UBC10.241 is that only one 12V battery is required to buffer the 24V output. This makes matching batteries unnecessary and allows a precise battery charging and testing. The UBC10.241 has one integrated 12V 5Ah high current VRLA battery, which is easy to change.

In addition to the UBC10.241, a separate UPS controller (UB10.241) which requires an external 12V battery is available when a longer buffer time is required.

Features & Benefits

  • Compact and Easy to Install
  • Longest Buffer Time in Class
  • Easy Battery Access
  • Stable Output Voltage in Buffer Mode
  • Superior Battery Management for Longest Battery Life
  • Temperature Compensated Battery Charging
  • Comprehensive Diagnostics and Monitoring Functions
  • Replace Battery Signal Included
  • Electronically Overload and Short Circuit Protected
  • 50% Power Reserves
  • Selectable Buffer Time Limiter

Documentation

Spec Sheet
