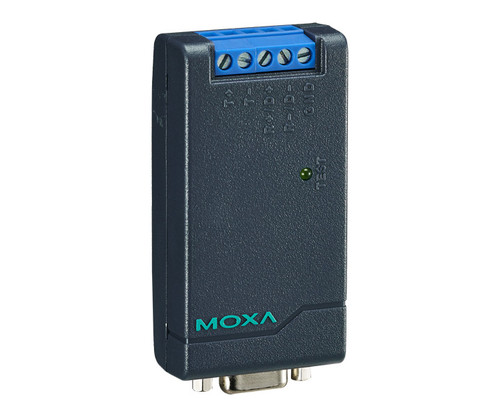

TCC-80I Converter

Moxa Serial Port-Powered RS-232 to RS-422/485 Converter with 2 KV Optical Isolation.

The TCC-80I provides complete signal conversion between RS-232 and RS-422/485, without requiring an external power source. It supports both half duplex 2-wire RS-485 and full duplex 4-wire RS-422/485, either of which can be converted between RS-232's TxD and RxD lines. In addition,the TCC-80I's 15 KV ESD protection guards against damage from electrostatic discharge. The TCC-80I is the world's first high-speed, port-powered converter with 2.5 KV isolation.

Automatic data direction control is also provided for RS-485, in which the RS-485 driver is enabled automatically when the circuitry senses the TxD output from the RS-232 signal. This means that no programming effort is required to control the transmission direction of the RS-485 signal. Moreover, the TCC-80I patented LED port power indicator can let you check if TCC-80I is receiving enough power or not.

Features &Benefits

• External power source supported but not required
• High-speed transmission up to 115.2 Kbps
• Compact size
• Converts RS-422, and both 2-wire and 4-wire RS-485
• RS-485 automatic data direction control
• Automatic baudrate detection
• 15 KV serial ESD protection
• Built-in 120-ohm termination resistors
• 2.5 KV isolation (for TCC-80I only)
• Patented LED port power indicator
