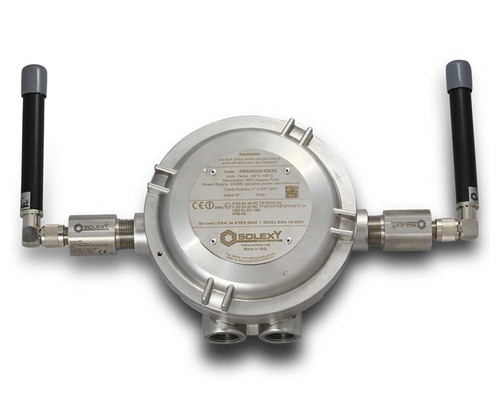

SWSA1133-42EN0 Ethernet Radio

Solexy

SWSA1133-42EN0 Ethernet Radio

Part #: SWSA1133-42EN0 In Stock: Ready to Ship Contact for Availability Stock: Select Options for Details

Contact Us for Pricing

SWSA1133-42EN0
pdf_1_name:
Spec Sheet
pdf_1_url:
pdfs/Solexy-ExplosionProof-WiFi-Radio.pdf
hide_matrix:
True
in_stock:
False
sales_description:
Solexy Explosion Proof WIFI Access Point, Exd Stainless Steel Enclosure, WiFi AP/client, 802.11a/b/g/n/ac, 2.4/5GHz, Qty. 2 N-Female Antenna Connections (RXN)_Layout3, QPS C1D1, North American Zones. (Antennas and Couplers Sold Separately.)
parent_sku:
SWSA1133-42EN0
facet_application:
Indoor
facet_mounting:
Surface
facet_power_considerations:
High Voltage (Typically 110-240 VAC or 110-250 VDC)
facet_power_considerations:
Low Voltage (Typically 12/24/48 VDC)
facet_power_considerations:
PoE
facet_technology:
2.4 GHz
facet_technology:
5 GHz
facet_type:
Access Point
facet_type:
Client
Commonly Purchased with:
Solexy ANHC2-CNRS Heavy Duty Antenna
Solexy KA-A33U Heavy Duty Antenna Kit

Details

Solexy Explosion Proof WIFI Access Point, Exd Stainless Steel Enclosure, WiFi AP/client, 802.11a/b/g/n/ac, 2.4/5GHz, Qty. 2 N-Female Antenna Connections (RXN)_Layout3, QPS C1D1, North American Zones. (Antennas and Couplers Sold Separately.)

Explosion Proof WiFi MIMO Dual Radio Access Point

The Solexy SWA/SWS A1 is the most compact industrial WiFi MIMO 2×2 access point rated for installation in Zone 1 rated hazardous locations and harsh environments.

It is completely configurable through its Ethernet or WiFi port via your internet browser or through a dedicated configuration software and offers routing, filtering and advanced security features including 802.11i (EAP authentication with Radius server/WPA/WPA2 Enterprise), tunnels with fully encrypted data, firewall, VLAN…

The SWA/SWS A1 features several operating functions: WiFi access point, client, repeater & MESH point modes. It is available with three different radio configurations all of them 2.4/5GHz: 802.11/n MIMO 2×2 (A10) or 802.11/ac MIMO 2×2 (A11) or in a unique dual radio configuration 802.11/n MIMO 2×2 (WiFi1) + 802.11/ac (WiFi2) that allows all the different operating modes to be active simultaneously (A12). For instance one radio is used to maintain the connectivity backbone and the other radio is used as local access point.

It can be powered using the same Ethernet cable used for data (POE or PPOE) or independently through dedicated terminals.

With Solexy’s SWA and SWS enclosures and their rugged construction water proof IP66 and IP68 combined with Atex and IECEx certificates, Solexy offers a wireless device solution for installation in classified Ex areas (gas, dust and mining) and harsh environments, including temporary submersion.

Features and Benefits

  • Operating Functions
    • WiFi Access Point, WiFi Client, Repeater & MESH (A10 and A12 only)
  • Wi-Fi
    • 10: 802.11a/b/g/n, MIMO 2×2, 2.4/5GHz, ANI (Adaptive Noise Immunity)
    • A11: 802.11a/b/g/n/ac, MIMO 2×2, 2.4/5GHz, ANI (Adaptive Noise Immunity)
    • A12: 802.11a/b/g/n, MIMO 2×2, 2.4/5GHz, plus 802.11a/b/g/n/ac, 2.4/5GHz
  • ETHERNET CONNECTION
    • 1-port Gigabit Ethernet 10/100/1000 Base TX auto-sensing, auto MDI/MDIX cross-over, RJ45
  • HEAVY DUTY CONSTRUCTION
    • Explosion proof Ex d IIC enclosure made of aluminum (SWA series) or stainless steel (SWS series) weather proof IP66/68

Documentation

Spec Sheet
