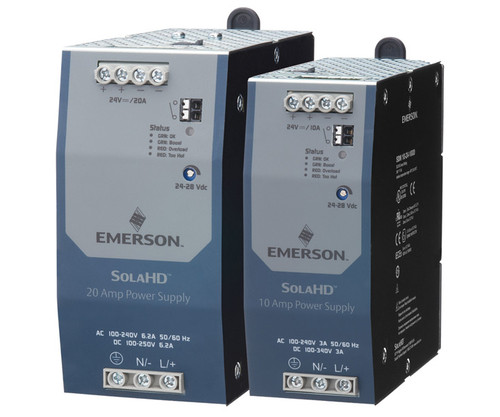

SDN-10-24-100D Power Supply

SolaHD SDN-D High Performance DIN Rail Series Power Supply, 100-300VAC/100-250VDC Input, 24VDC Output, 10A, 240W, Diagnostic Monitoring with SCM Network Communication Module, Class 1/Div 2, ATEX, IECx Rated.

In spite of its small size, the SDN-D high performance DIN-rail power supply boasts one of the highest efficiencies available in the market today. Higher efficiency means less heat is generated, potentially extending the life of all components in the enclosure. Extensive diagnostic monitoring capabilities are possible with the optional SCM network communication module, which utilizes popular industrial network protocols to provide critical power supply data to computers, PLCs, DCSs HMIs, and other devices. For applications requiring even higher reliability, combine the SDN-D with SDN redundancy modules. With its extensive capabilities, compact design, and notable global certifications, the SDN-D is the ideal solution for use in harsh environments, extreme temperatures (–40 to +70 deg. C), and hazardous locations worldwide.

Applications

• Industrial Automation
• Process Control
• Material Handling and Conveyors
• Hazardous Locations

Features

• High performance unit in a compact package

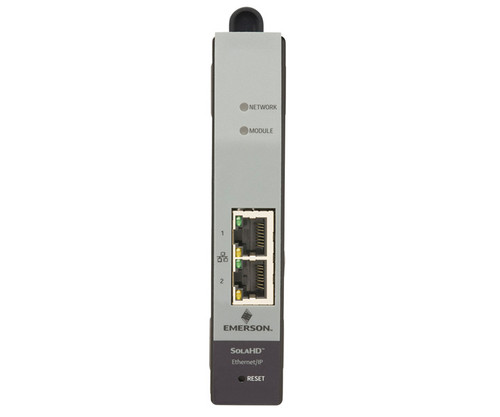

• Optional network communications modules provides important diagnostic information to controllers, HMI, and computers
• Continuous Power Boost: Up to 120% continuous, for temperatures up to 50 deg. C
• Multi-turn potentiometer simplifies accurate setting of output voltage
• Extensive international hazardous location certifications, including Class I Zone 2, ATEX, and IECEx. Hazardous location temperature code (T-Code) rating of T4
• Inductive Load Power Boost additional short term power, to assist in starting loads with high inrush current Dual output terminals for convenience in wiring
• DC OK relay to provide diagnostic information to a PLC, controller, or monitoring system
• Circuit Interruption Power Boost provides short duration peak current sufficient to trip properly-sized load side fuse or circuit breaker in the event of a load fault
• Universal AC and DC input voltages to accommodate global requirements
• Wide operating temperature range accommodates both extreme hot and extreme cold environments
• Active Power Factor Correction greater than 0.98
• Parallel operation capability standard
• Supports redundant power supply operation using optional SDN™ Redundancy modules
